WEICHAI

产品概述

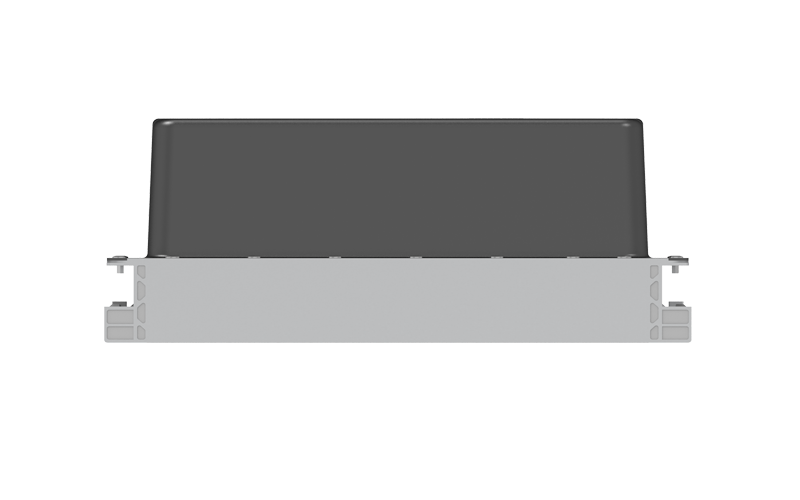

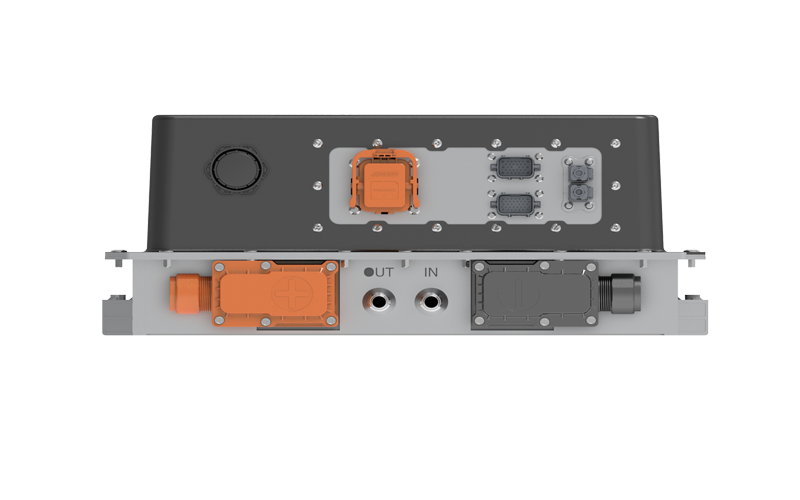

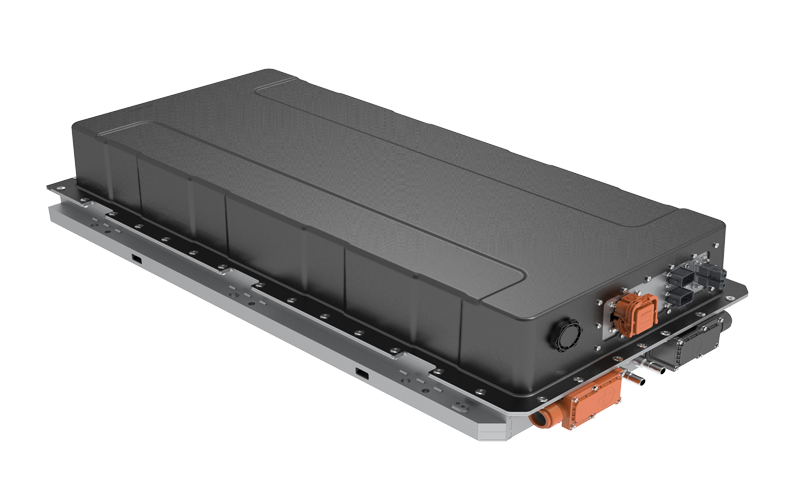

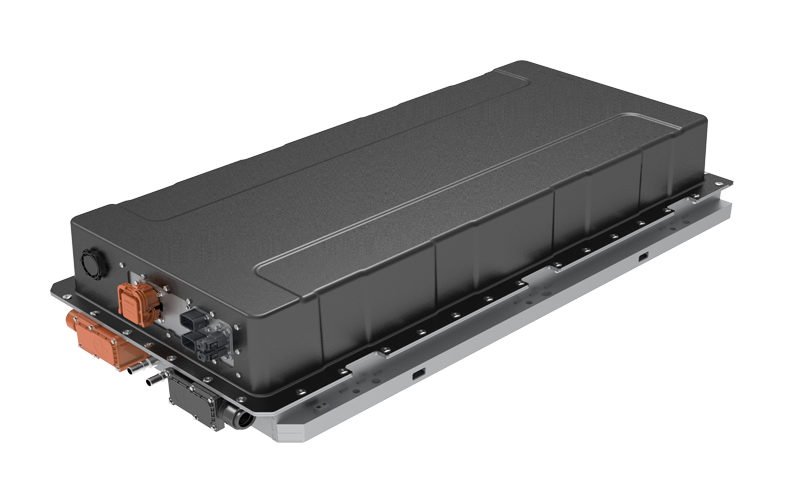

A 29 kWh hybrid battery system tailored for the construction machinery market

产品优势

Continuous charge/discharge rate of 4C, with a peak rate of 5C/6C; supports worry-free regenerative braking, with an SOC charging time of only 10 minutes from 20% to 80%.

Adapted to harsh environments with altitudes up to 5,500m and humidity ≥ 95%.

System cycle life reaches 7,000 cycles, meeting durability requirements for various application scenarios.

Enhanced pack rigidity, with vibration resistance meeting the 2.35g Z-axis requirement for mining truck applications.

Complies with stringent CASS anti-corrosion standards, ensuring adaptability to diverse harsh and corrosive environments.

产品规格

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Model

Nominal Voltage (V)

Rated Capacity (Ah)

Energy per Pack (kWh)

Continuous Charging Rate

Continuous Discharging Rate

Weight (kg)

Overall Dimensions (mm)

Applications

D29

320

90

29

4C(360A)

4C(360A)

245 ± 7.2

1220×580×250

Loaders, excavators, mining trucks, etc.
