产品概述

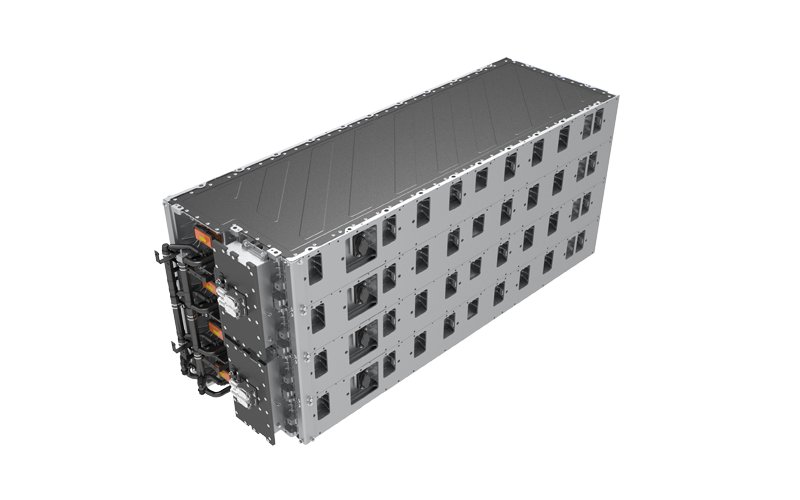

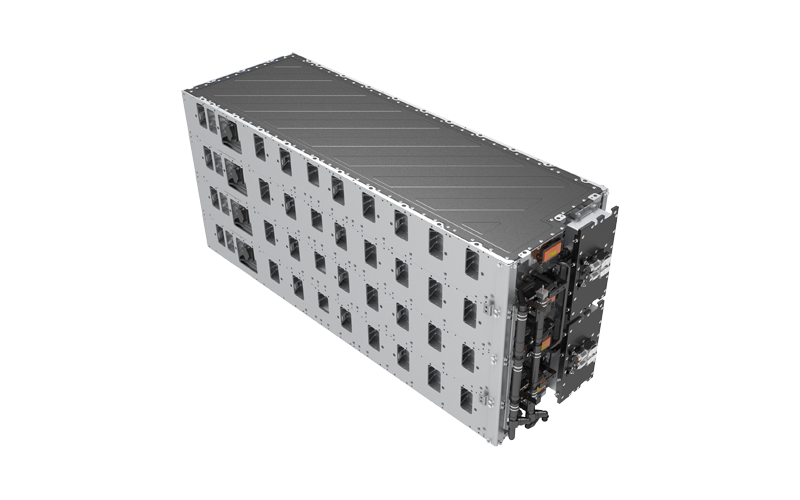

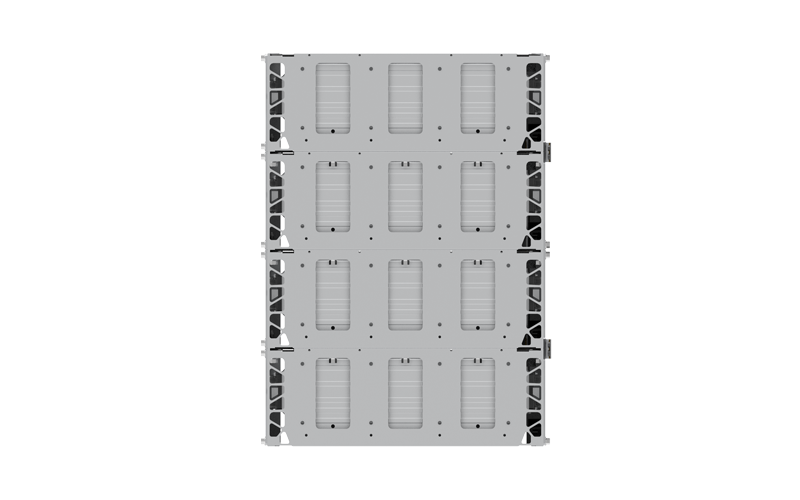

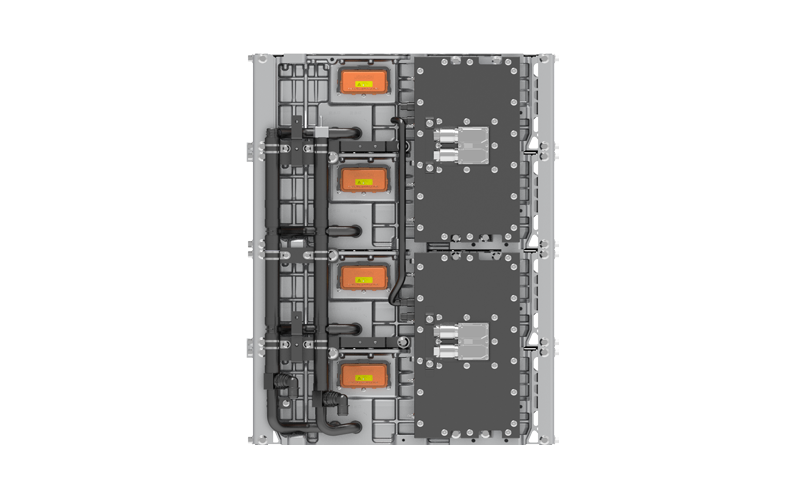

A commercial vehicle battery system with higher integration and superior safety
产品优势
Enhanced reliability: High-frame, high-strength aluminum profile enclosure for reliable structural integrity.
Higher efficiency: Integrated design reduces pipes and cables by 90%, increasing vehicle installation efficiency by 90%.
Enhanced safety: Features high-safety blade cells, triple insulation protection, precise thermal runaway warning, rapid-venting explosion-proof valves, and water-electricity separation design for maximum safety.
Faster handling: Low system height lowers the vehicle's center of gravity, enabling faster cornering.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Nominal Voltage (V) |
Rated Capacity (Ah) |
Energy per Pack (kWh) |
Continuous Charging Rate |
Continuous Discharging Rate |
Weight (kg) |
Overall Dimensions (mm) |
Applications |
|
CT100 |
320 |
313 |
100 |
0.9C |
0.9C |
665 |
2250×720×250 |
Heavy-duty Truck |
