产品概述

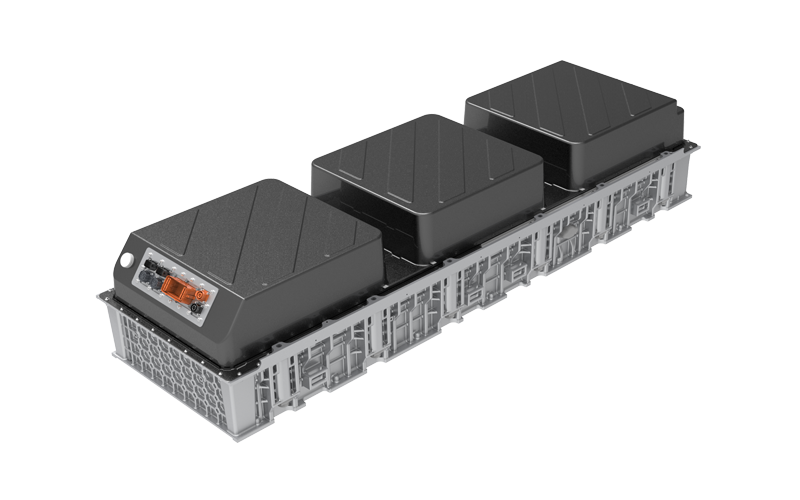

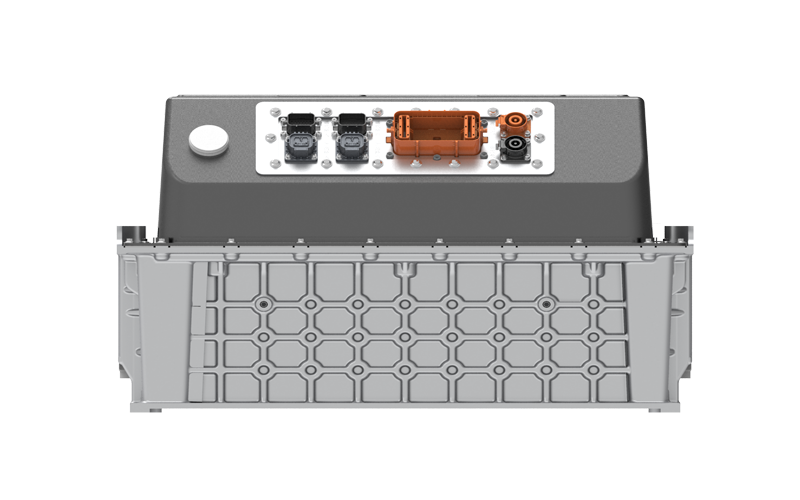

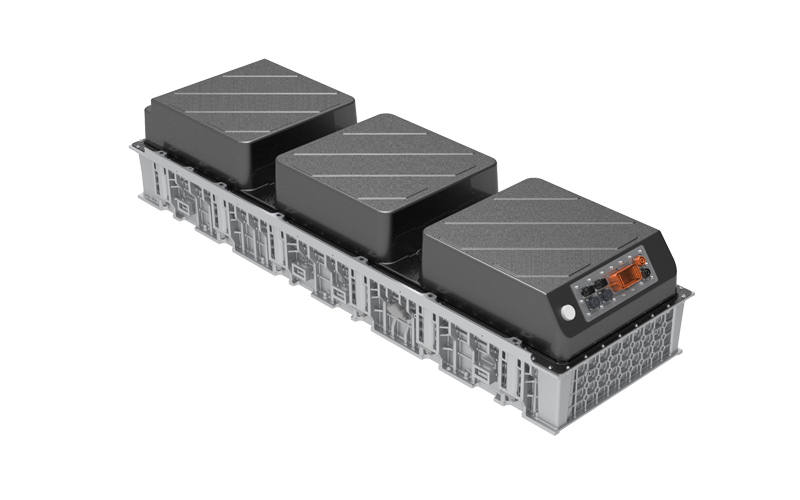

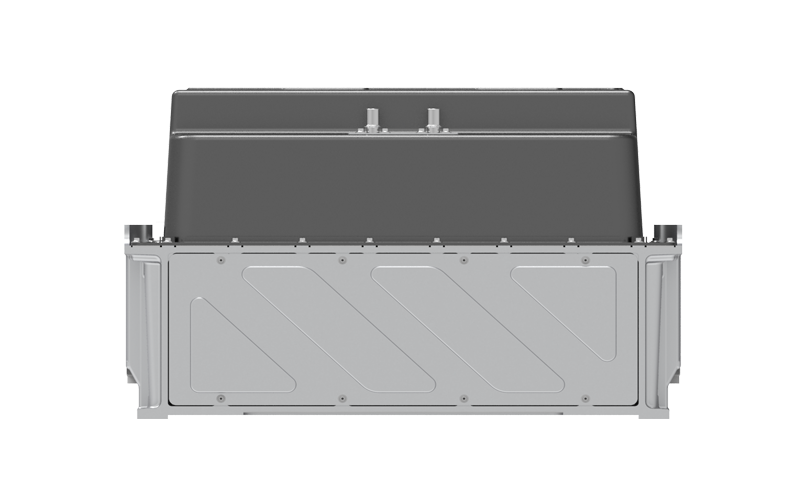

A battery system with comprehensive energy coverage and high mobility
产品优势
Full under-chassis layout: Efficiently utilizes the space under the vehicle chassis, lowers the center of gravity to reduce rollover risk, improves safety, and enhances cabin visibility.
Simplified maintenance: High assembly efficiency and easy maintenance.
Improved vehicle mobility: High ground clearance ensures superior vehicle mobility.
Comprehensive energy coverage: Energy capacity ranges from 330 kWh to 600 kWh, offering superior scalability and flexible wheelbase adaptation.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Nominal Voltage (V) |
Rated Capacity (Ah) |
Energy per Pack (kWh) |
Continuous Charging Rate |
Continuous Discharging Rate |
Weight (kg) |
Overall Dimensions (mm) |
Applications |
|
EH165 |
665.6 |
248.5 |
165 |
1.2C |
1.2C |
1070±30 |
2400×700×478 |
Heavy-duty Truck |
|
ET200 |
633.6 |
316 |
200 |
0.9C |
0.9C |
1285 |
2400×735×478 |
Heavy-duty Truck |
