Light-Duty Truck Power Battery N120/N140/N155

电量覆盖 kWh

额定电压 v

产品手册下载服务图标

概述优势规格型谱表

产品概述

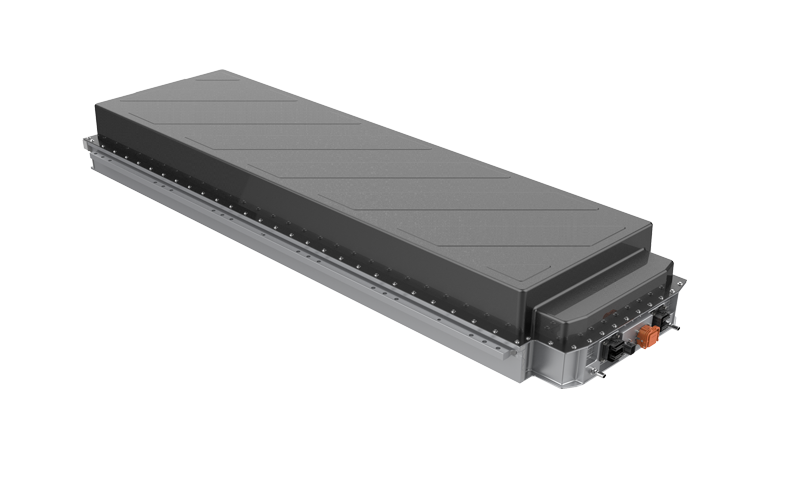

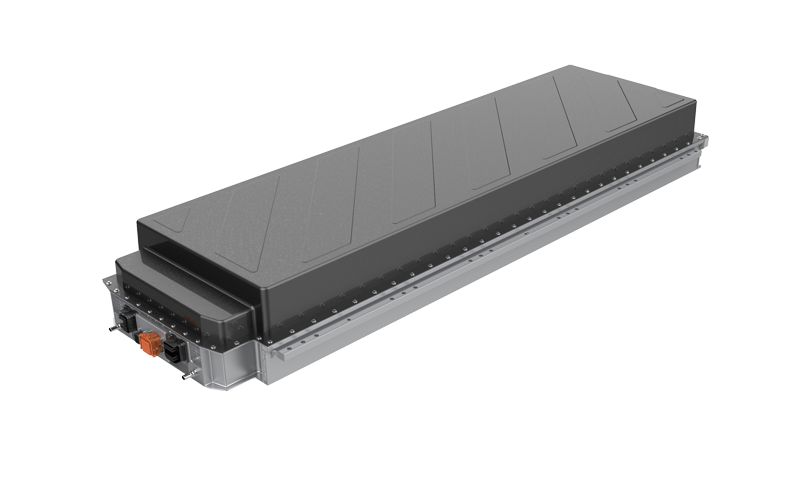

A center-mounted fast-charging battery for light-duty trucks

产品优势

Enhanced reliability: High-side beam aluminum profile structure provides superior structural integrity and mechanical durability.

Lightweight design: Optimized structure with energy density ≥ 168 Wh/kg.

Reduced recharge time: 20%-80% SOC charging time ≤ 18 min.

Integrated design: Single-pack center-mounted layout for convenient vehicle assembly.

产品规格

备注：产品参数及图片仅供参考；如有变动，不另行通知。

型谱表

Model	Nominal Voltage (V)	Rated Capacity (Ah)	Energy per Pack (kWh)	Continuous Charging Rate	Continuous Discharging Rate	Weight (kg)	Overall Dimensions (mm)	Applications
N120	563.2	214.5	121	1.9C	1.9C	760	2141×785×324	Light-duty Truck
N140	652.8	214.5	140	1.9C	1.9C	867	2410×785×324	Light-duty Truck
N155	665.6	233.5	155	1.3C	1.3C	935	2410×785×324	Light-duty Truck
