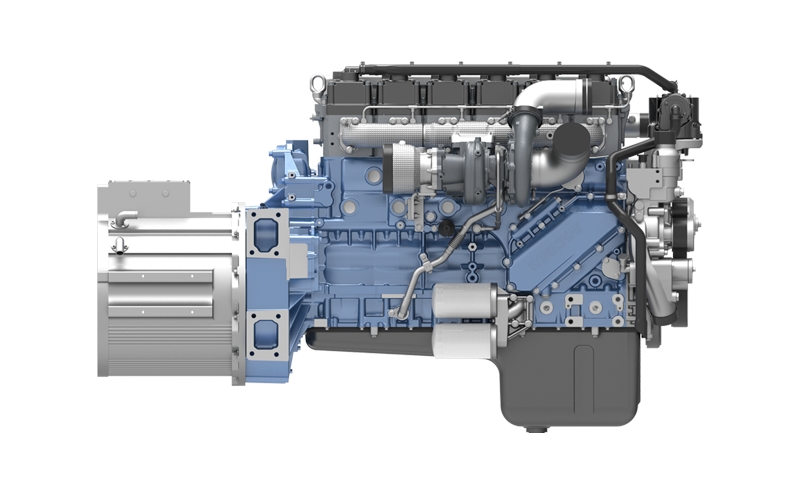

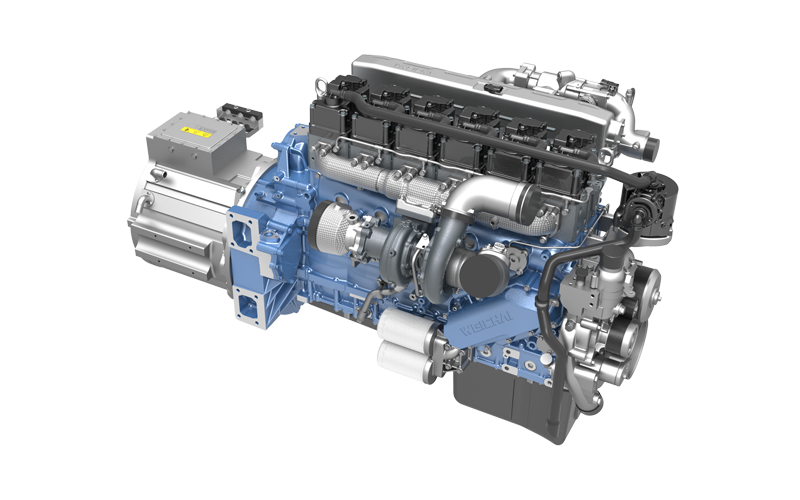

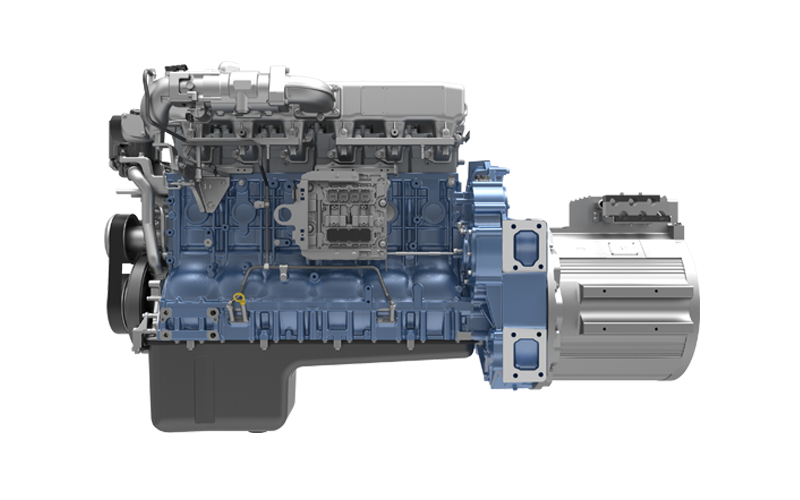

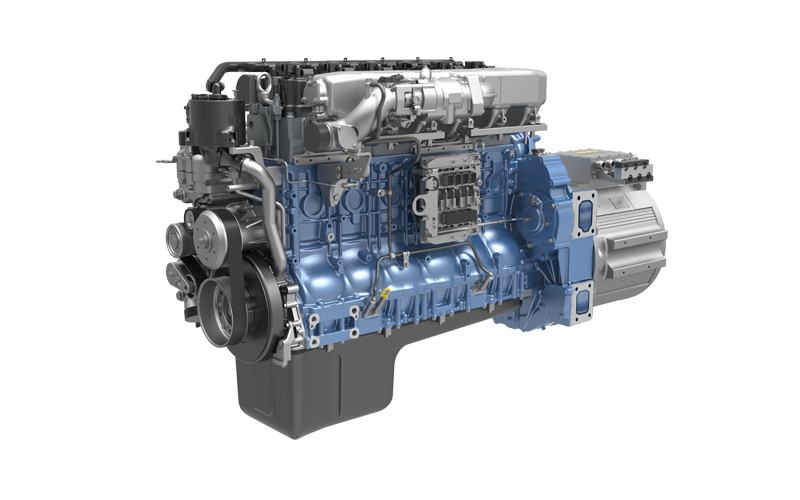

300kW Methanol Range Extender for Mining Trucks

Power performance: Powered by a WP13 methanol engine, with a rated generation power of 300 kW, effectively ensuring the vehicle's electrical power supply capacity; Supports multiple control modes including single-point and multi-point control to adapt to complex operating requirements.

Economic efficiency: Optimal power generation efficiency reaches 1.78 kW·h/L, saving over 50% in fuel costs compared to diesel mining trucks, significantly reducing user operating costs.

Lightweight design: Total assembly weight is 1473 kg with dimensions of 1882 × 975 × 1142 mm, meeting the layout requirements for 130t mining trucks.

Reliability: Start-stop function optimized so the RCU directs the engine to idle-drag before shutdown upon receiving VCU instructions, extending component life; B10 lifespan reaches 5000 hours, meeting the requirements of harsh operating environments and demonstrating high reliability.
