产品概述

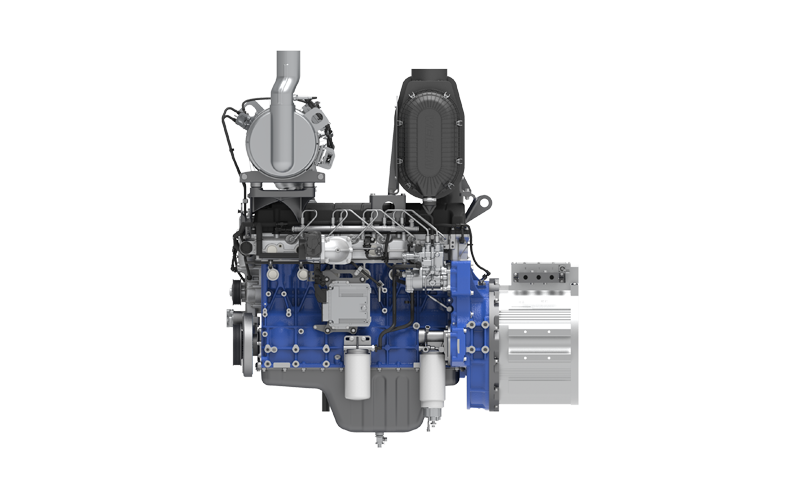

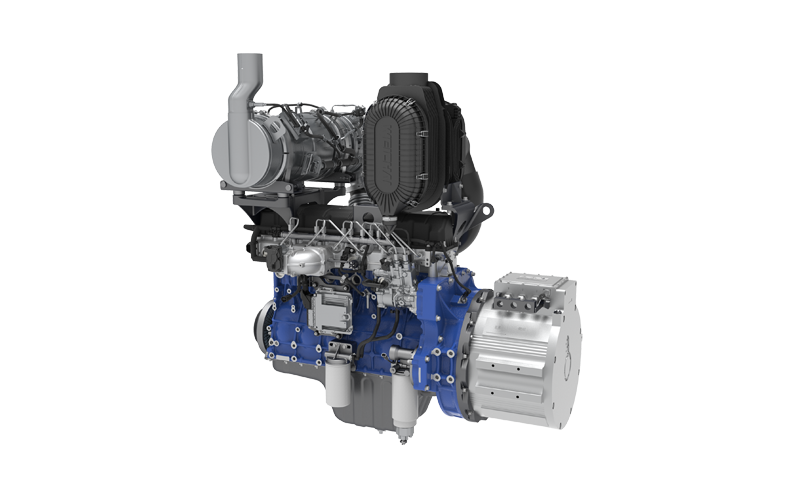

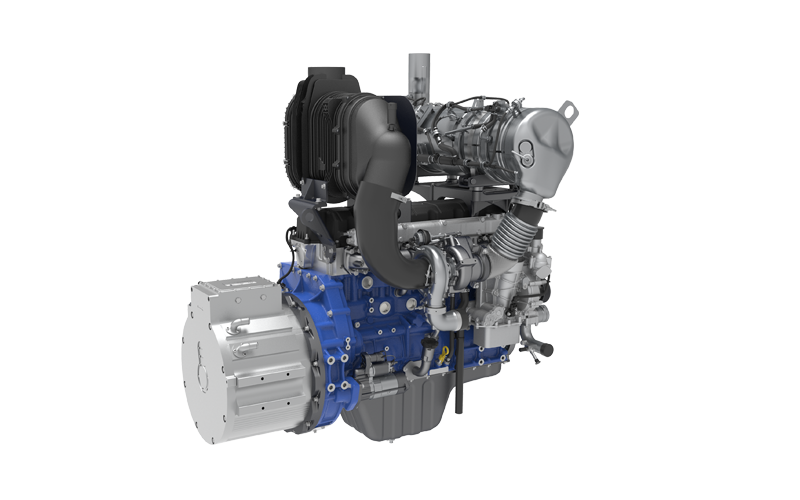

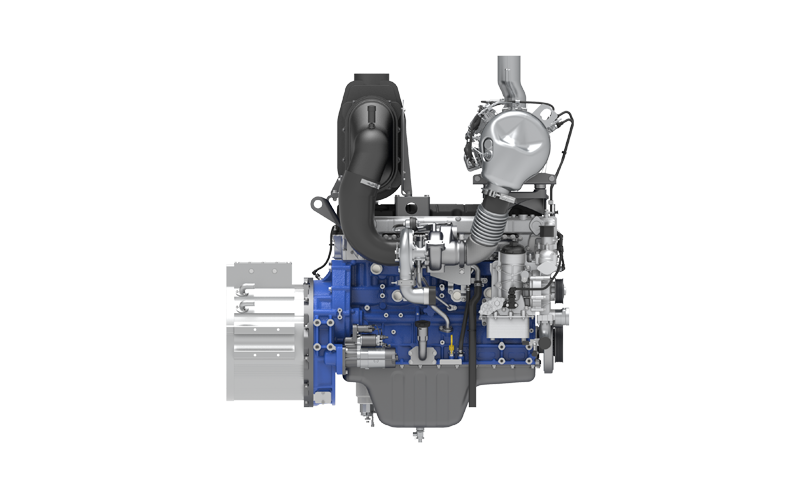

The 155 kW hybrid range extender utilizes Weichai’s mature WP8H engine paired with a self-developed 445-platform low-speed, high-torque motor, enabling full-power, high-load continuous operation. It solves the charging limitations of outdoor battery-electric loaders while offering the advantages of compact size and low cost.
产品优势
Higher power generation: achieving higher output power under the same displacement; Increased electrical power output without adding volume or weight, meeting the needs of a wider range of application scenarios.
Greater Reliability: Focuses on long-term stability and durability, ensuring consistent optimal performance under various operating environments and conditions; Higher reliability, reducing downtime and maintenance costs caused by failures.
产品规格
| Assembly | Rated power (kW/Ps) | 155/211 |
| Assembly | Rated speed (r/min) | 1400 |
| Assembly | Power generation efficiency (kW·h/L) | ＞4.6 |
| Engine | Rated power (kW/Ps) | 228/310 |
| Engine | Rated speed (rpm) | 2000 |
| Motor system | Rated voltage (VDC) | 620 |
| Motor system | Rated power (kW) | 165 |
| Motor system | Rated torque (N·m) | 1400 |
| Motor system | Maximum efficiency | ＞95% |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power generation (kW) |
Target applications |
|
WPH8H-155-01 |
155 |
7t–8t hybrid loader |
