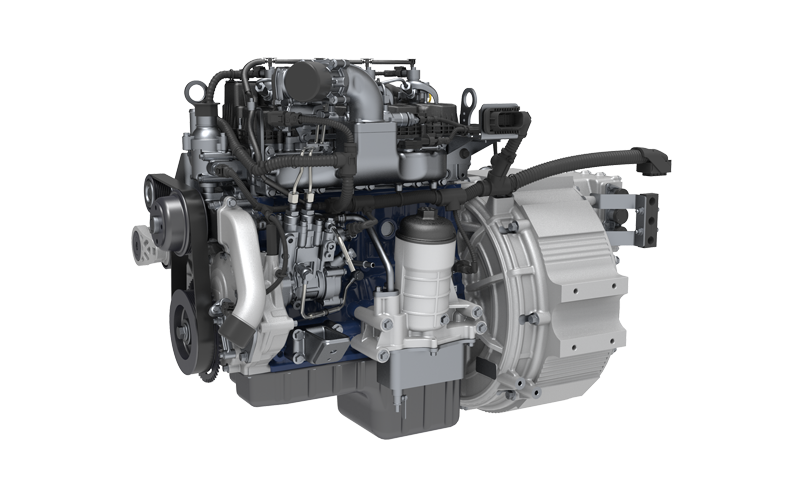

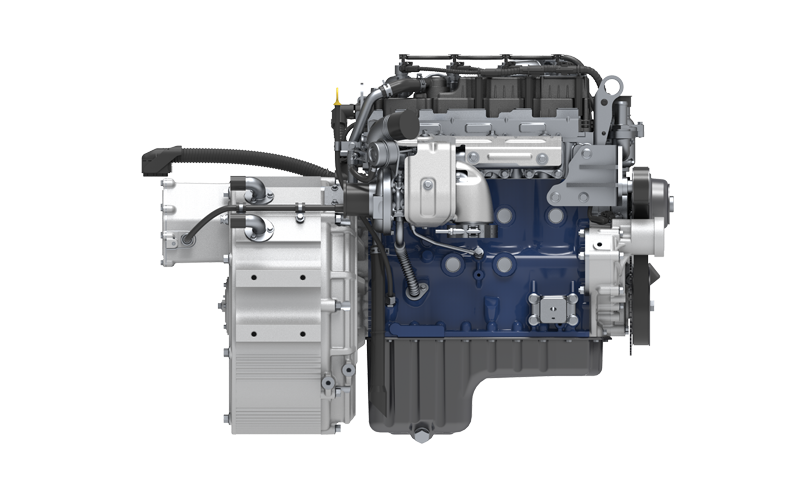

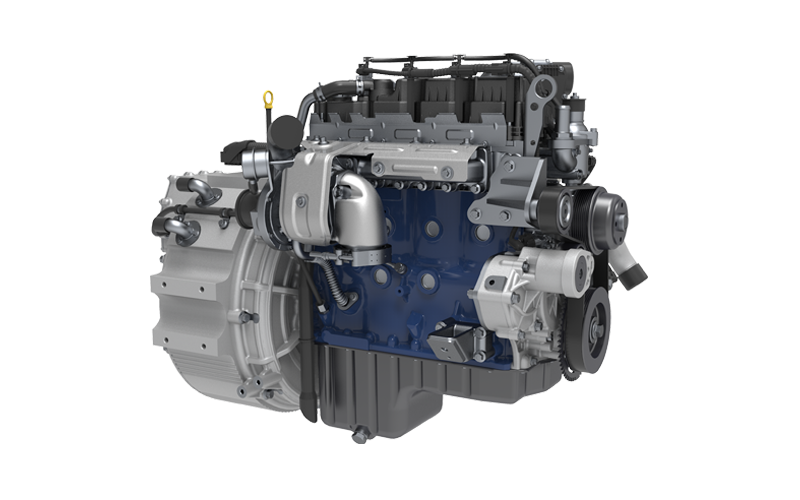

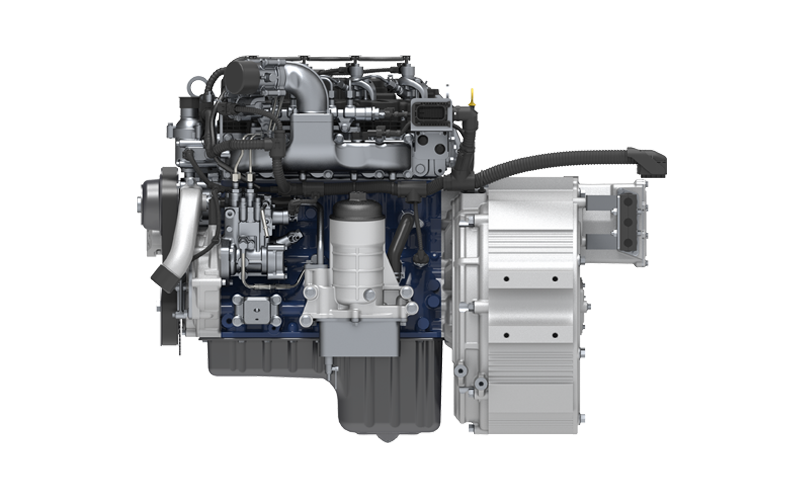

WPH2.5N-65-01 Range Extender for Buses

总成额定功率 (kW)

总成额定转速（rpm）

产品手册下载服务图标

概述优势规格型谱表

产品概述

Integrated structure range extender featuring compact dimensions, cost-efficiency, and higher power generation efficiency.

产品优势

Integrated structure range extender featuring compact dimensions, cost-efficiency, and higher power generation efficiency.

产品规格

Assembly	Rated power (kW/Ps)	65/88
Assembly	Rated speed (r/min)	1700
Assembly	Power generation efficiency (kW·h/L)	≥4.2
Assembly	Voltage platform (V)	444
Assembly	Emission standard	Euro VI / China VI
Engine	Model	WP2.5N
Engine	Rated power (kW)	132
Engine	Rated speed/torque (r/min/N·m)	2900/500
Motor	Continuous/Peak power (kW)	70/85
Motor	Continuous/Peak speed (r/min)	1800/2900
Motor	Continuous/Peak torque (N·m)	372/540
Motor	Maximum efficiency	≥97%
Motor controller	Rated voltage (V)	444
Motor controller	Continuous/Peak current (A rms)	160/320

备注：产品参数及图片仅供参考；如有变动，不另行通知。
