产品概述

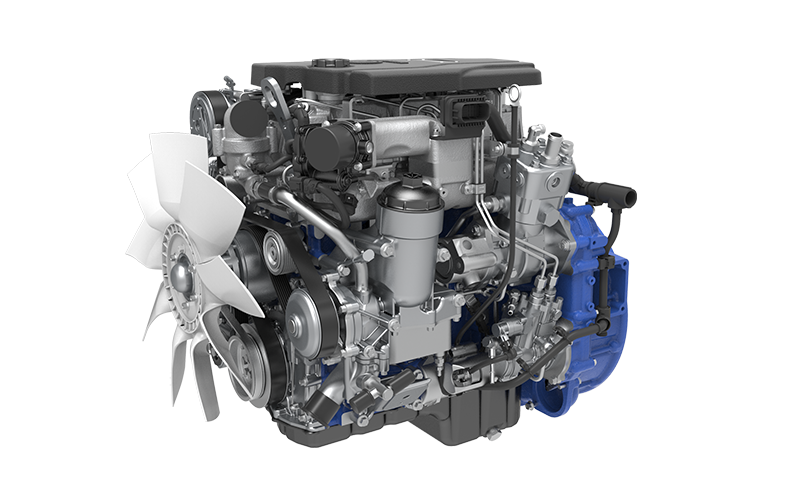

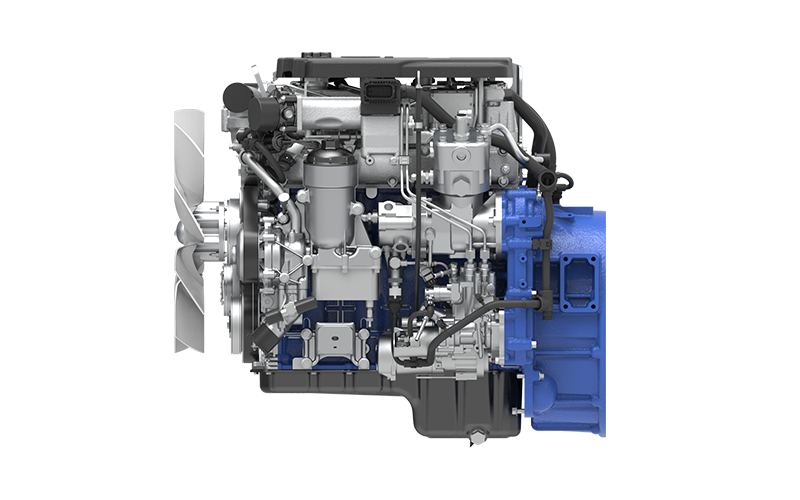

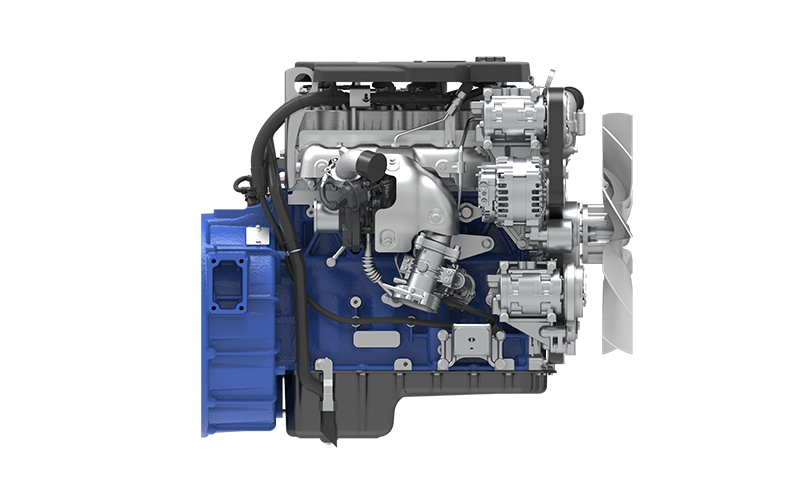

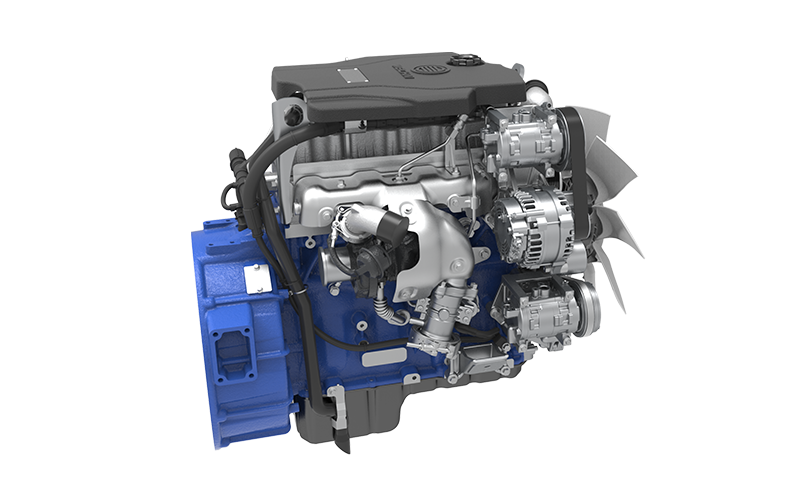

Weichais new-generation high-end engine platform product, suitable for light-duty cargo trucks, dump trucks, and special-purpose vehicles.
产品优势
High reliability: Cast iron cylinder head and reinforced engine block design, high level of overall reinforcement, with a B10 life of 800,000 km.
High power: Maximum power of 220 Ps, peak torque of 660 N·m, high torque at low speed for effortless starting.
Low fuel consumption: Optimized design of the turbocharger and intake/exhaust system, combined with precision calibration based on actual operating conditions, resulting in vehicle fuel consumption 1 L/100km lower than products with equivalent power.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
WP3NQ158E62 |
112/2800 |
487/1300-2000 |
2.97 |
Euro VI |
CR+DOC+DPF+SCR |
Cargo truck, special-purpose vehicle, dump truck |
4 |
|
WP3NQ170E62 |
121/2800 |
520/1400-2100 |
2.97 |
Euro VI |
CR+DOC+DPF+SCR |
Cargo truck, special-purpose vehicle, dump truck |
4 |
|
WP3NQ210E62 |
143/2800 |
600/1400-1600 |
2.97 |
Euro VI |
CR+DOC+DPF+SCR |
Cargo truck, special-purpose vehicle, dump truck |
4 |
|
WP3NQ220E62 |
158/2800 |
660/1400 |
2.97 |
Euro VI |
CR+DOC+DPF+SCR |
Cargo truck, special-purpose vehicle, dump truck |
4 |
|
WP3NQ140E50 |
103/3000 |
380/1400-2400 |
2.97 |
Euro V |
CR+SCR |
Cargo truck, special-purpose vehicle, dump truck |
4 |
|
WP3NQ150E50 |
106/3000 |
430/1400-2400 |
2.97 |
Euro V |
CR+SCR |
Cargo truck, special-purpose vehicle, dump truck |
4 |
|
WP3NQ160E50 |
114/3000 |
480/1400-2300 |
2.97 |
Euro V |
CR+SCR |
Cargo truck, special-purpose vehicle, dump truck |
4 |
|
WP3NQ170E50 |
121/2800 |
520/1400-2100 |
2.97 |
Euro V |
CR+SCR |
Cargo truck, special-purpose vehicle, dump truck |
4 |
|
WP3NQ210E50 |
143/2800 |
600/1400-1600 |
2.97 |
Euro V |
CR+SCR |
Cargo truck, special-purpose vehicle, dump truck |
4 |
|
WP3NQ220E50 |
158/2800 |
660/1400 |
2.97 |
Euro V |
CR+SCR |
Cargo truck, special-purpose vehicle, dump truck |
4 |
|
WP3NQ140E30 |
103/3000 |
380/1400-2400 |
2.97 |
Euro III |
CR |
Cargo truck, special-purpose vehicle, dump truck |
4 |
|
WP3NQ150E30 |
106/3000 |
430/1400-2400 |
2.97 |
Euro III |
CR |
Cargo truck, special-purpose vehicle, dump truck |
4 |
|
WP3NQ160E30 |
114/3000 |
480/1400-2300 |
2.97 |
Euro III |
CR |
Cargo truck, special-purpose vehicle, dump truck |
4 |
|
WP3NQ170E30 |
121/2800 |
520/1400-2100 |
2.97 |
Euro III |
CR |
Cargo truck, special-purpose vehicle, dump truck |
4 |
|
WP3NQ210E30 |
143/2800 |
600/1400-1600 |
2.97 |
Euro III |
CR |
Cargo truck, special-purpose vehicle, dump truck |
4 |
|
WP3NQ220E30 |
158/2800 |
660/1400 |
2.97 |
Euro III |
CR |
Cargo truck, special-purpose vehicle, dump truck |
4 |
