产品概述

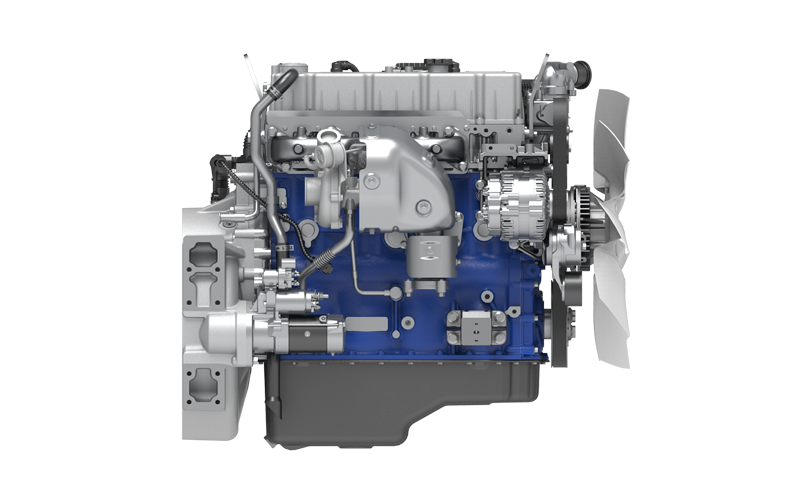

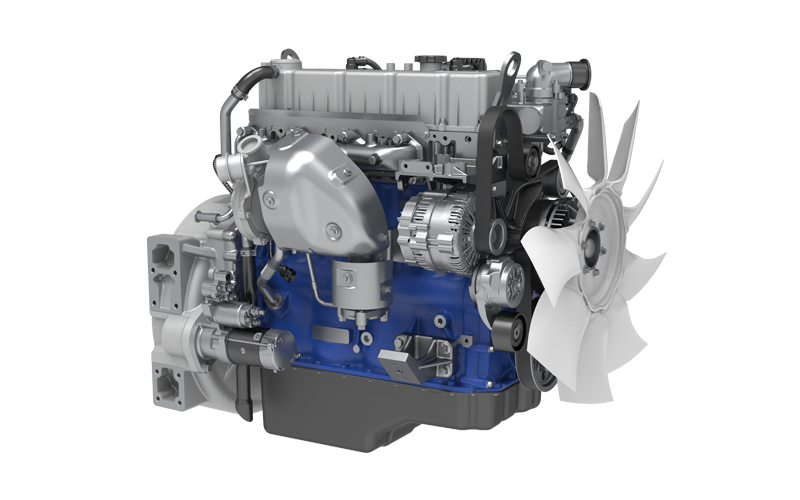

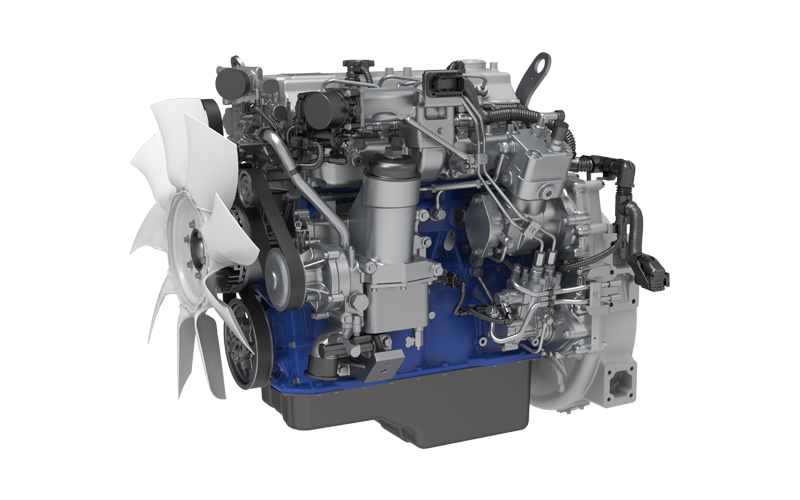

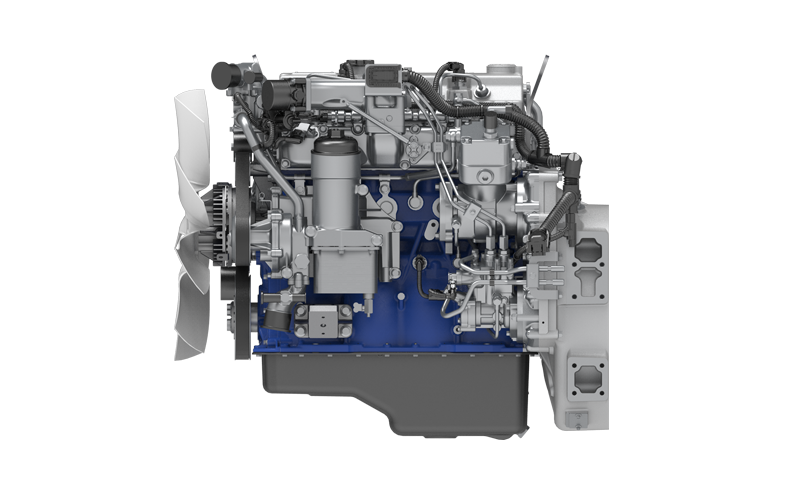

Weichai N-series product, upgraded from WP4.1N to 4.58 L, features a modular family design to enhance power performance, suitable for various cargo trucks, dump trucks, and special-purpose vehicles.
产品优势
Powerful performance: Maximum power of 240 Ps and torque up to 850 N·m. The flat torque curve design reduces downshifting frequency on slopes, providing excellent adaptability and more comfortable driving.
Superior fuel economy: Multi-mode partition calibration, optimized design of the combustion system, air system, and low-friction components, providing strong transient response to meet power and economic requirements under different working conditions.
High reliability: Intelligent control technologies such as precise soot load control and reliability model construction/analysis ensure safety, reliability, and worry-free travel.
Broad application range: Features multiple accessory configurations such as dual-compressor compatibility and PTO structures.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
WP4.6NQ240E62 |
177/2300 |
850/1300-1600 |
4.58 |
Euro VI |
CR+DOC+DPF+SCR |
Cargo truck, dump truck, special-purpose vehicle |
4 |
|
WP4.6NQ220E62 |
162/2300 |
800/1300-1600 |
4.58 |
Euro VI |
CR+DOC+DPF+SCR |
Cargo truck, dump truck, special-purpose vehicle |
4 |
|
WP4.6NQ200E62 |
147/2300 |
750/1200-1800 |
4.58 |
Euro VI |
CR+DOC+DPF+SCR |
Cargo truck, dump truck, special-purpose vehicle |
4 |
|
WP4.6NQ200E62A |
147/2300 |
700/1200-1800 |
4.58 |
Euro VI |
CR+DOC+DPF+SCR |
Cargo truck, dump truck, special-purpose vehicle |
4 |
|
WP4.6NQ220E62A |
162/2300 |
800/1300-1600 |
4.58 |
Euro VI |
CR+DOC+DPF+SCR |
Cargo truck, dump truck, special-purpose vehicle |
4 |
|
WP4.6NQ240E62 |
177/2300 |
850/1300-1600 |
4.58 |
Brazil P8 |
CR+DOC+DPF+SCR |
Cargo truck, dump truck, special-purpose vehicle |
4 |
|
WP4.6NQ220E62 |
162/2300 |
800/1300-1600 |
4.58 |
Brazil P8 |
CR+DOC+DPF+SCR |
Cargo truck, dump truck, special-purpose vehicle |
4 |
|
WP4.6NQ200E62 |
147/2300 |
750/1200-1800 |
4.58 |
Brazil P8 |
CR+DOC+DPF+SCR |
Cargo truck, dump truck, special-purpose vehicle |
4 |
|
WP4.6NQ200E62A |
147/2300 |
700/1200-1800 |
4.58 |
Brazil P8 |
CR+DOC+DPF+SCR |
Cargo truck, dump truck, special-purpose vehicle |
4 |
|
WP4.6NQ220E62A |
162/2300 |
800/1300-1600 |
4.58 |
Brazil P8 |
CR+DOC+DPF+SCR |
Cargo truck, dump truck, special-purpose vehicle |
4 |
|
WP4.6NQ220E50 |
162/2300 |
800/1300-1600 |
4.58 |
Euro V |
CR+SCR |
Cargo truck, dump truck, special-purpose vehicle |
4 |
|
WP4.6NQ200E30 |
147/2300 |
750/1200-1800 |
4.58 |
Euro III |
CR |
Cargo truck, dump truck, special-purpose vehicle |
4 |
|
WP4.6NQ220E30 |
162/2300 |
800/1200-1800 |
4.58 |
Euro III |
CR |
Cargo truck, dump truck, special-purpose vehicle |
4 |
