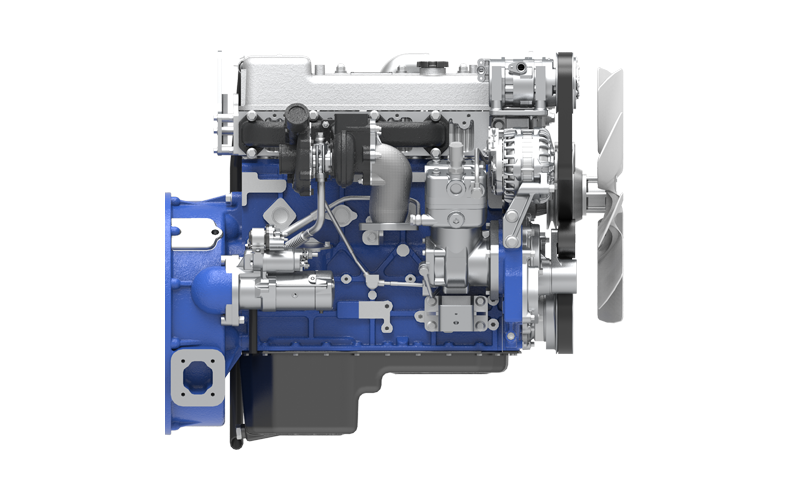

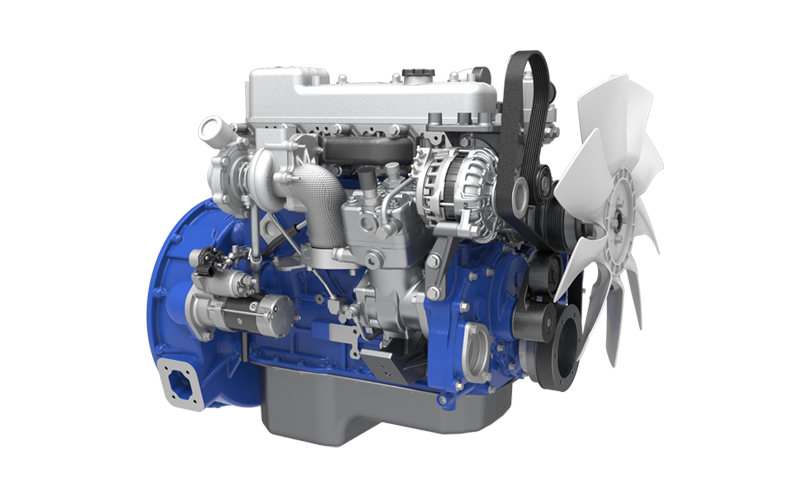

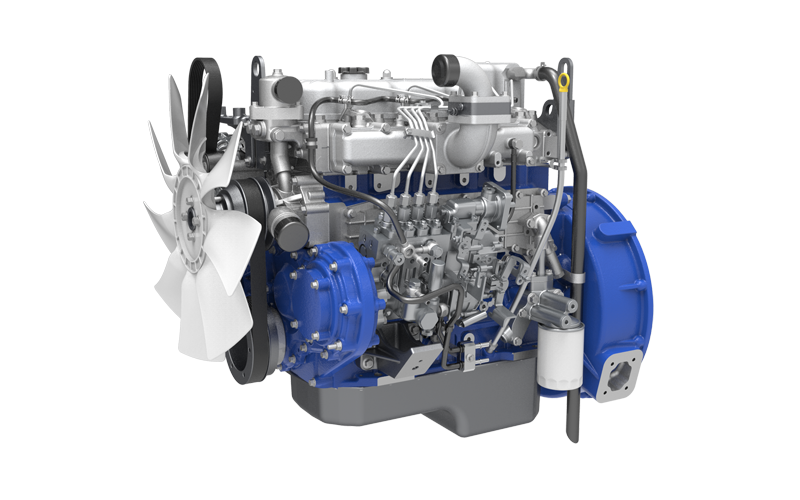

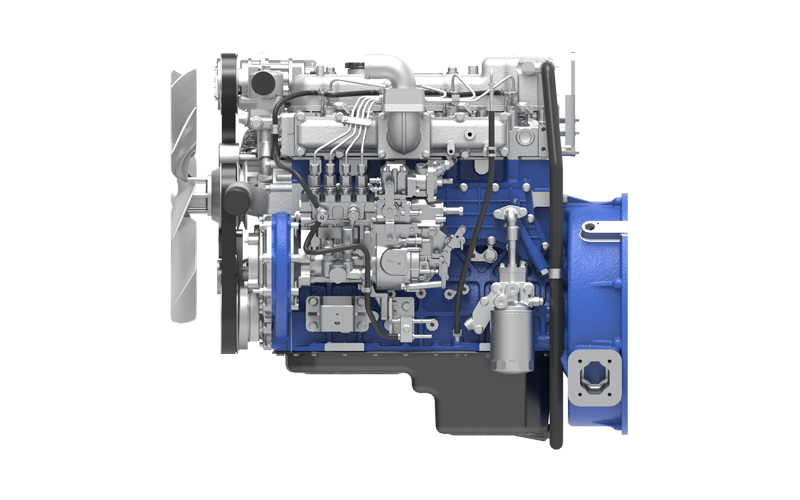

WP4.1Q Engine for Cargo Truck

Suitable for daily industrial product transport

96-120/130-165

功率范围 kW/Ps

520/1400-1700

最大扭矩/转速 N·m / r/min

产品手册下载服务图标

服务支持

立即询价产品咨询

/Products & Businesses/Powertrain System/Engine/Truck Engine/Engine for Cargo Truck

概述优势规格型谱表

产品概述

A cost-effective power solution for cargo trucks specifically developed for low-emission regions.

产品优势

High cost-effectiveness: Employs a mechanical injection pump technical route, resulting in low total engine cost.

High reliability: Dedicated development for the fuel system; fuel pumps and injectors are equipped with wear-resistant and corrosion-resistant coatings, ensuring strong adaptability to fuel quality.

Strong power: Maximum output torque of 520 N·m ensures vehicle power requirements under severe road conditions.

产品规格

功率范围 kW/Ps

96-120/130-165

最大扭矩转速 N·m / r/min

520/1400-1700

排放标准

燃料

Diesel

发动机型式

In-line

气缸数

气门数

排量 L

4.1

进气方式

Turbocharged and intercooled

发动机尺寸（长X宽X高） mm

928×688×802

G重量 kg

430

备注：产品参数及图片仅供参考；如有变动，不另行通知。

型谱表

Model	Rated power/speed (kW/rpm)	Peak torque/speed (N·m/rpm)	Displacement (L)	Emission standard	Technical route	Target applications	Number of valves
WP4.1Q130A1	96/2600	430/1400-1800	4.1	/	Mechanical injection pump	Cargo truck	2
WP4.1Q140A1	105/2600	465/1400-1700	4.1	/	Mechanical injection pump	Cargo truck	2
WP4.1Q150A1	110/2600	500/1400-1700	4.1	/	Mechanical injection pump	Cargo truck	2
WP4.1Q165A1	120/2600	520/1400-1700	4.1	/	Mechanical injection pump	Cargo truck	2

WP4.1Q Engine for Cargo Truck

96-120/130-165

520/1400-1700
