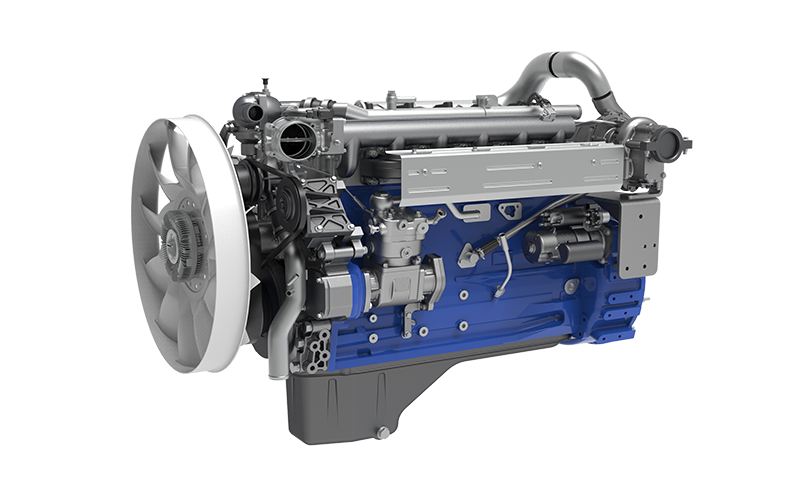

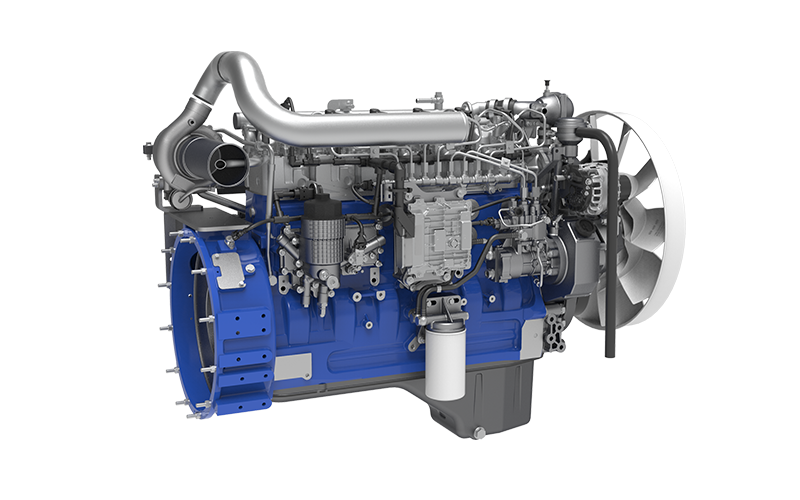

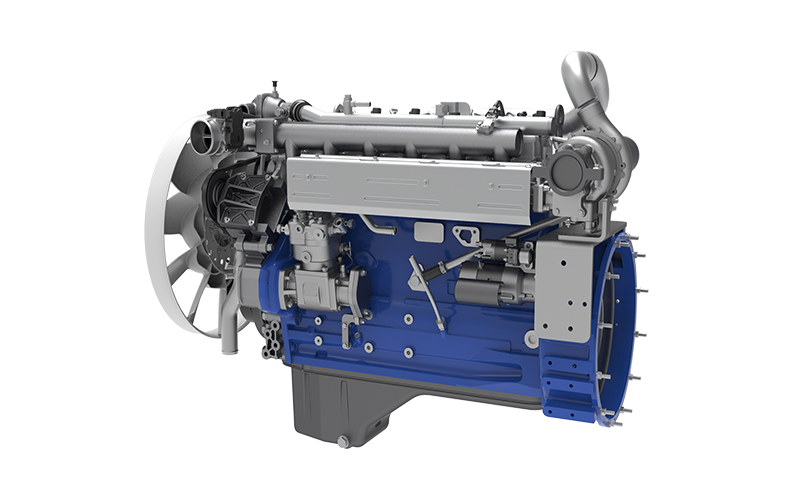

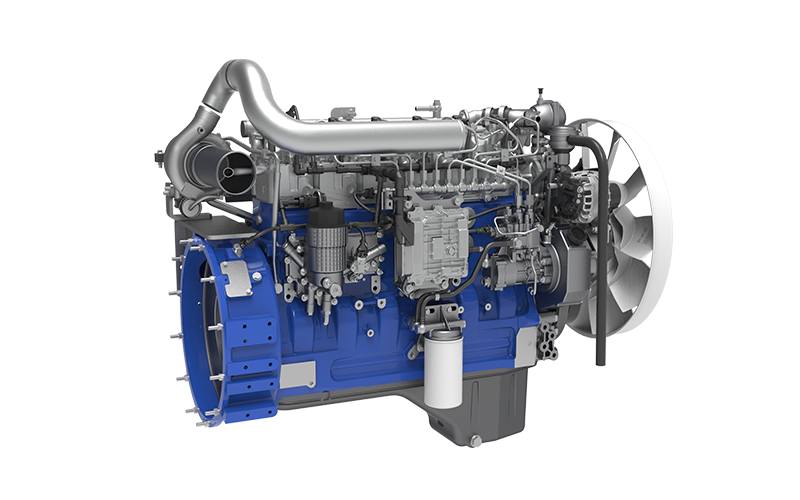

WP6 Engine for Cargo Truck

Applicable to 4×2, 6×2, and 6×4 cargo trucks

132-220/180-300

功率范围 kW/Ps

1100/1200-1600

最大扭矩/转速 N·m / r/min

产品手册下载服务图标

服务支持

立即询价产品咨询

/Products & Businesses/Powertrain System/Engine/Truck Engine/Engine for Cargo Truck

概述优势规格型谱表

产品概述

Suitable for various cargo truck working conditions, with structural reinforcements and comprehensive performance improvements, offering better cost-effectiveness.

产品优势

Powerful performance: Maximum power of 300 Ps, peak torque of 1100 N·m, providing sufficient power reserve and strong adaptability to operating conditions.

Reliable and durable: Integrated cylinder head, silicon-molybdenum two-piece exhaust manifold, and reinforced moving parts, ready for any challenge.

Smooth and comfortable: Equipped with an engine block reinforcement plate and main bearing ladder frame to minimize engine vibration, ensuring a more comfortable ride.

产品规格

功率范围 kW/Ps

132-220/180-300

最大扭矩转速 N·m / r/min

1100/1200-1600

排放标准

No emission, Euro III, Euro V, Euro VI

燃料

Diesel

发动机型式

Inline six-cylinder

气缸数

气门数

排量 L

6.75

进气方式

Turbocharged and intercooled

发动机尺寸（长X宽X高） mm

1397×720×1087

G重量 kg

620

备注：产品参数及图片仅供参考；如有变动，不另行通知。

型谱表

Model	Rated power/speed (kW/rpm)	Peak torque/speed (N·m/rpm)	Displacement (L)	Emission standard	Technical route	Target applications	Number of valves
WP6.180E32	132/2300	680/1400-1600	6.75	N/A	Mechanical injection pump	Cargo truck	2
WP6.210E32	155/2300	800/1400-1600	6.75	N/A	Mechanical injection pump	Cargo truck	2
WP6.240E32	176/2300	860/1400-1600	6.75	N/A	Mechanical injection pump	Cargo truck	2
WP6.210E30	155/2300	800/1200-1600	6.75	Euro III	CR	Cargo truck	2
WP6.220E30	162/2300	850/1200-1600	6.75	Euro III	CR	Cargo truck	2
WP6.245E30	180/2300	900/1200-1600	6.75	Euro III	CR	Cargo truck	2
WP6.270E30	198/2300	1000/1200-1600	6.75	Euro III	CR	Cargo truck	2
WP6.300E30	220/2300	1100/1200-1600	6.75	Euro III	CR	Cargo truck	2
WP6.210E50	155/2300	800/1200-1600	6.75	Euro V	CR+SCR	Cargo truck	2
WP6.245E50	180/2300	900/1200-1600	6.75	Euro V	CR+SCR	Cargo truck	2
WP6.270E50	198/2300	1000/1200-1600	6.75	Euro V	CR+SCR	Cargo truck	2
WP6.300E50	220/2300	1100/1200-1600	6.75	Euro V	CR+SCR	Cargo truck	2
WP6.210E62	155/2300	800/1200-1600	6.75	Euro VI	CR+DOC+DPF+SCR	Cargo truck	2
WP6.245E62	180/2300	900/1200-1600	6.75	Euro VI	CR+DOC+DPF+SCR	Cargo truck	2
WP6.270E62	198/2300	1000/1200-1600	6.75	Euro VI	CR+DOC+DPF+SCR	Cargo truck	2
WP6.300E62	220/2300	1100/1200-1600	6.75	Euro VI	CR+DOC+DPF+SCR	Cargo truck	2
