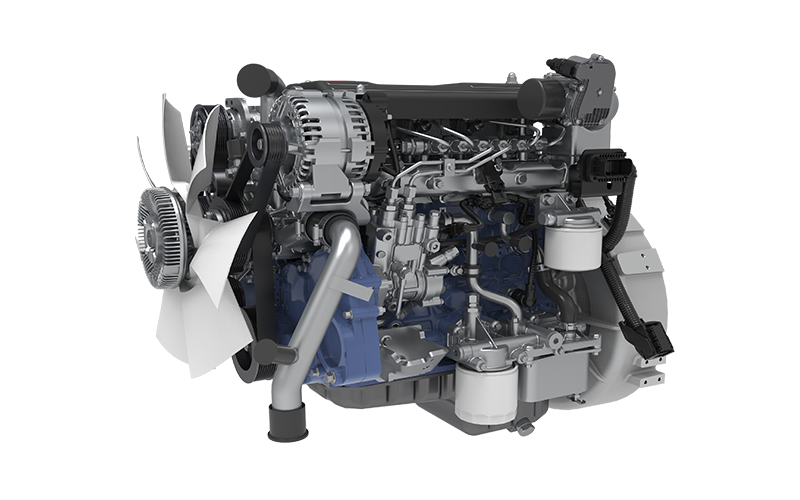

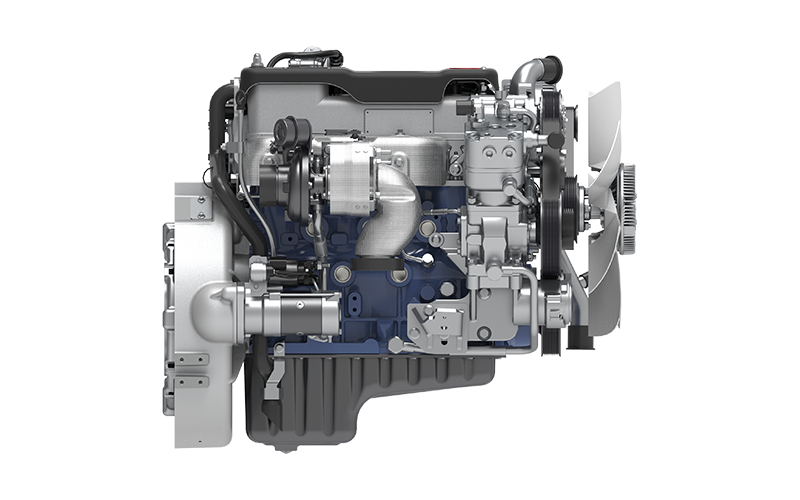

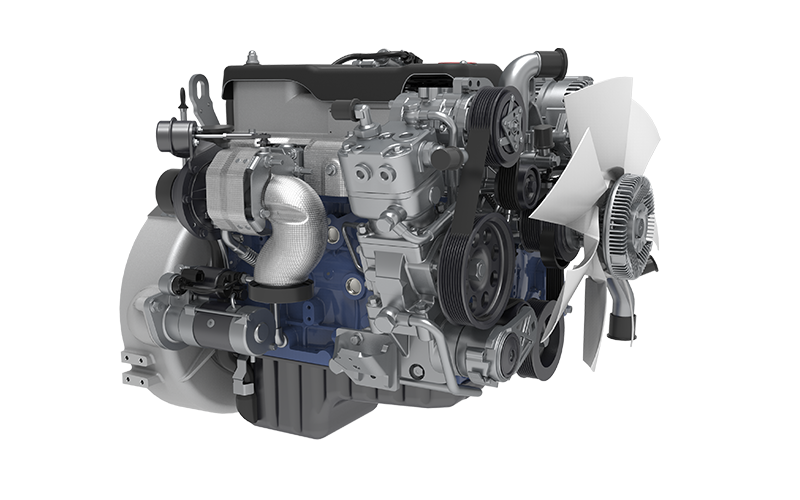

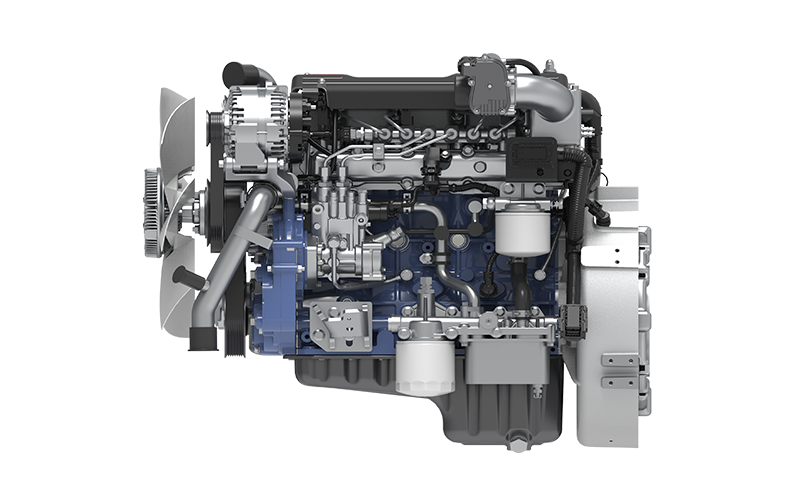

WP2.5T Engine for Cargo Truck

Suitable for urban delivery

100-133/140-190

功率范围 kW/Ps

500/1400-1800

最大扭矩/转速 N·m / r/min

产品手册下载服务图标

服务支持

立即询价产品咨询

/Products & Businesses/Powertrain System/Engine/Truck Engine/Engine for Cargo Truck

概述优势规格型谱表

产品概述

High cost-effective power for cargo trucks

产品优势

Power performance: Structural optimization and upgrades, re-matched development of high-efficiency turbocharger, peak torque reaching 500 N·m, providing strong power for high transport efficiency.

Economy: Development of a brand-new high-efficiency fuel system + optimization of air system and ECU strategies, with fuel consumption in common operating areas 5–12 g/kW·h lower than competing products.

Reliability: Inheriting classic quality, with further optimized engine block and cylinder head structure, 10% increase in strength, material upgrades for critical components like the crankshaft and connecting rods, and a 50% increase in service life to meet the high reliability requirements of the T-series.

产品规格

功率范围 kW/Ps

100-133/140-190

最大扭矩转速 N·m / r/min

500/1400-1800

排放标准

Euro III, Euro V, Euro VI

燃料

Diesel

发动机型式

Inline four-cylinder

气缸数

气门数

排量 L

2.45

进气方式

Turbocharged and intercooled

发动机尺寸（长X宽X高） mm

825×715×660

G重量 kg

230

备注：产品参数及图片仅供参考；如有变动，不另行通知。

型谱表

Model	Rated power/speed (kW/rpm)	Peak torque/speed (N·m/rpm)	Displacement (L)	Emission standard	Technical route	Target applications	Number of valves
WP2.5T140E62	100/2900	340/1400-2400	2.45	Euro VI	CR+DOC+DPF+SCR	Cargo truck	2
WP2.5T160E62	118/2900	400/1400-2400	2.45	Euro VI	CR+DOC+DPF+SCR	Cargo truck	2
WP2.5T170E62	121/2900	450/1400-2000	2.45	Euro VI	CR+DOC+DPF+SCR	Cargo truck	2
WP2.5T180E62	132/2900	500/1400-1800	2.45	Euro VI	CR+DOC+DPF+SCR	Cargo truck	2
WP2.5T190E62	133/2900	495/1400-1800	2.45	Euro VI	CR+DOC+DPF+SCR	Cargo truck	2
WP2.5T140E50	100/2900	340/1400-2400	2.45	Euro V	CR+SCR	Cargo truck	2
WP2.5T160E50	118/2900	400/1400-2400	2.45	Euro V	CR+SCR	Cargo truck	2
WP2.5T170E50	121/2900	450/1400-2000	2.45	Euro V	CR+SCR	Cargo truck	2
WP2.5T180E50	132/2900	500/1400-1800	2.45	Euro V	CR+SCR	Cargo truck	2
WP2.5T190E50	133/2900	495/1400-1800	2.45	Euro V	CR+SCR	Cargo truck	2
WP2.5T140E30	100/2900	340/1400-2400	2.45	Euro III	CR	Cargo truck	2
WP2.5T160E30	118/2900	400/1400-2400	2.45	Euro III	CR	Cargo truck	2
WP2.5T170E30	121/2900	450/1400-2000	2.45	Euro III	CR	Cargo truck	2
WP2.5T180E30	132/2900	500/1400-1800	2.45	Euro III	CR	Cargo truck	2
WP2.5T190E30	133/2900	495/1400-1800	2.45	Euro III	CR	Cargo truck	2
