产品概述

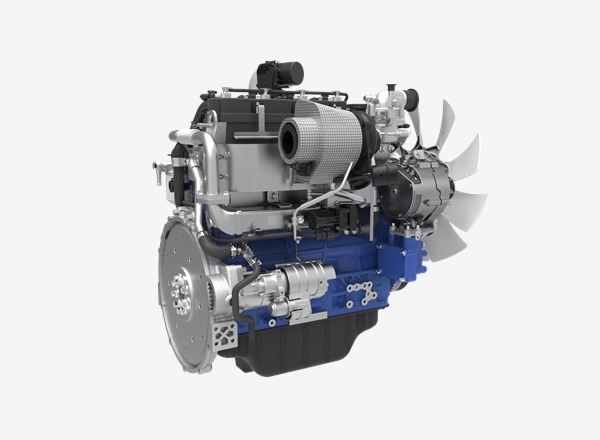

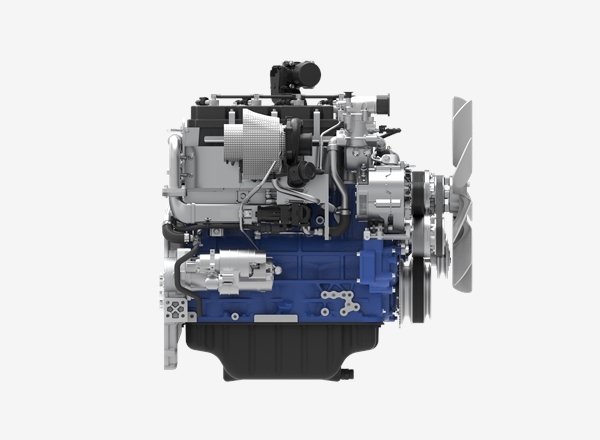

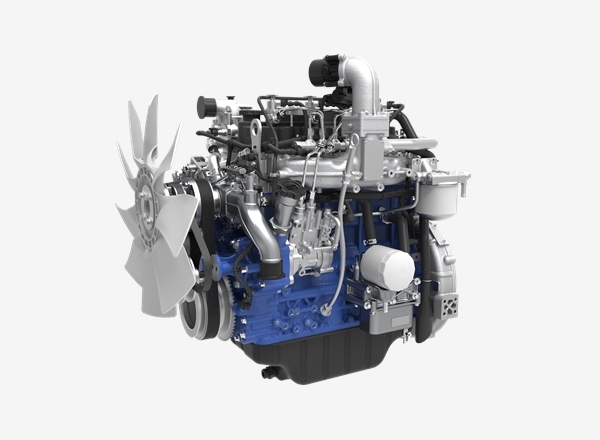

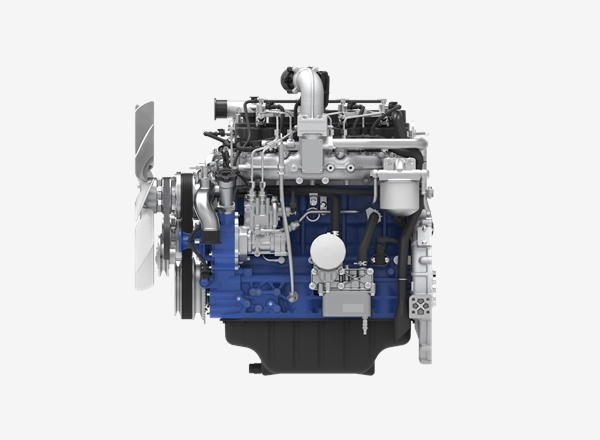

The WP3.6N is compatible with multifunctional machinery such as telescopic handlers and is currently in batch application. It features a single-cylinder four-valve structure and high low-speed torque, characterized by strong power performance, low fuel consumption, and high reliability.
产品优势
The electronic control unit (ECU) is compatible with both 12V and 24V electrical systems, and the engine mount design facilitates convenient vehicle integration.
Suitable for operation between -25°C and 50°C at altitudes up to 4000m.
500 h extended oil change interval to reduce operating costs.
Platform-based design with modular component layout, high integration, and a neat, aesthetically pleasing appearance.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
WP3.6NG96E301 |
70/2200 |
410/1600 |
3.58 |
Stage IIIA |
Electronically controlled high-pressure common rail |
2.5–3t telescopic handler |
4 |
|
WP3.6NG112E301 |
82.5/2200 |
465/1600 |
3.58 |
Stage IIIA |
Electronically controlled high-pressure common rail |
3.5–4t telescopic handler |
4 |
|
WP3.6NG122E301 |
90/2200 |
500/1600 |
3.58 |
Stage IIIA |
Electronically controlled high-pressure common rail |
4t telescopic handler |
4 |
|
WP3.6NG101E680 |
74/2200 |
450/1500 |
3.58 |
Stage V |
EGR+DOC+DPF+SCR |
2.5–3t telescopic handler |
4 |
|
WP3.6NG112E680 |
82/2200 |
500/1500 |
3.58 |
Stage V |
EGR+DOC+DPF+SCR |
3.5–4t telescopic handler |
4 |
|
WP3.6NG143E680 |
105/2300 |
580/1500 |
3.58 |
Stage V |
EGR+DOC+DPF+SCR |
4t telescopic handler |
4 |
