产品概述

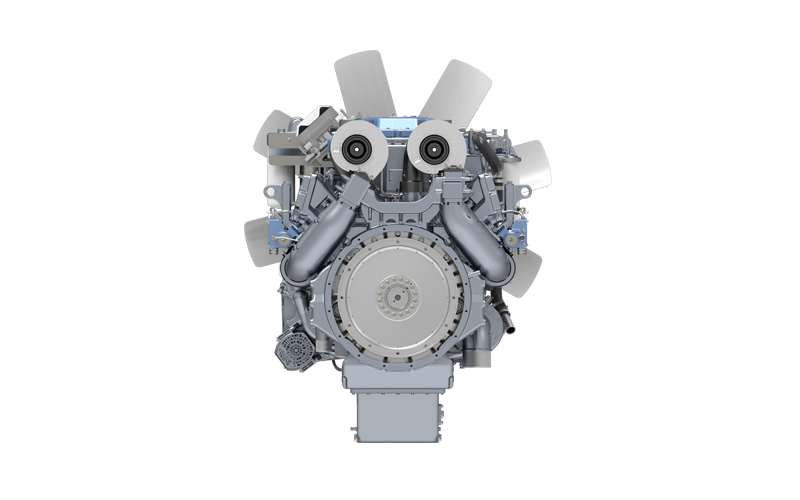

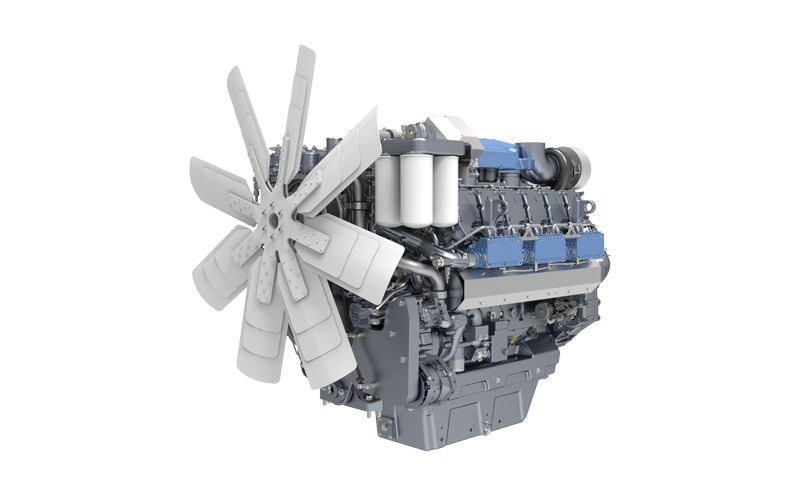

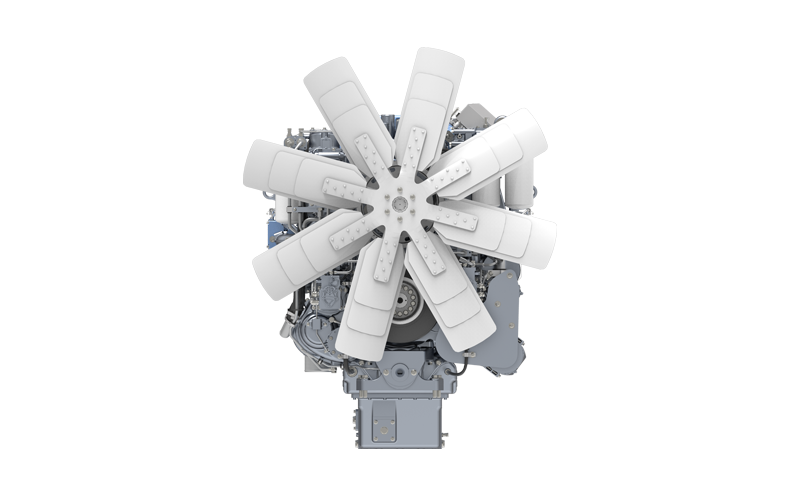

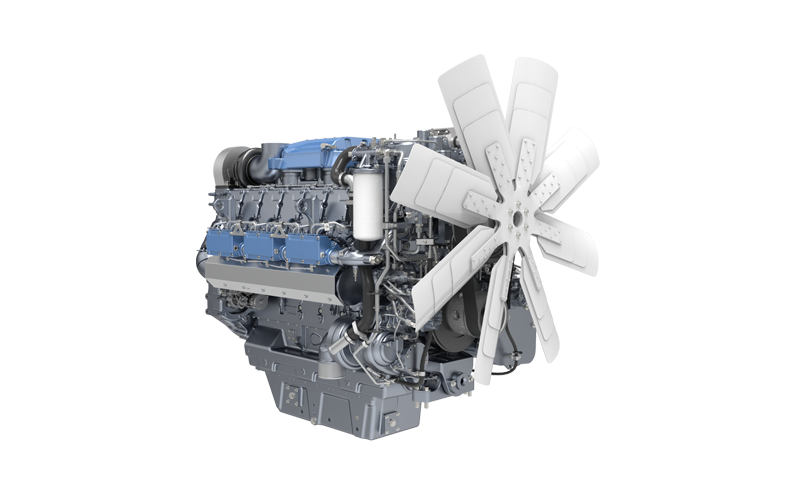

V-type, 12-cylinder, four-stroke, displacement of 30.4 L, rated power of 900 kW, rated speed 2100 rpm, maximum torque/speed of 5116 N·m / 1400 rpm.
产品优势
Operating ambient temperature of -50℃ to 50℃, capable of wide-temperature range operation.
At 3000 m altitude and 14.5℃ ambient temperature, 100% power retention rate.
High-strength compacted graphite iron cylinder block and steel piston design, high reliability, overhaul interval of 20000 h, and maintenance interval of 500 h.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
12M25G1224E302 |
900/2100 |
5116/1400 |
30.4 |
China Non-road Stage III |
Common rail |
90–110t dump truck |
4 |
|
12M25G1065E302 |
783/2100 |
4629/1300 |
30.4 |
China Non-road Stage III |
Common rail |
90–110t dump truck |
4 |
