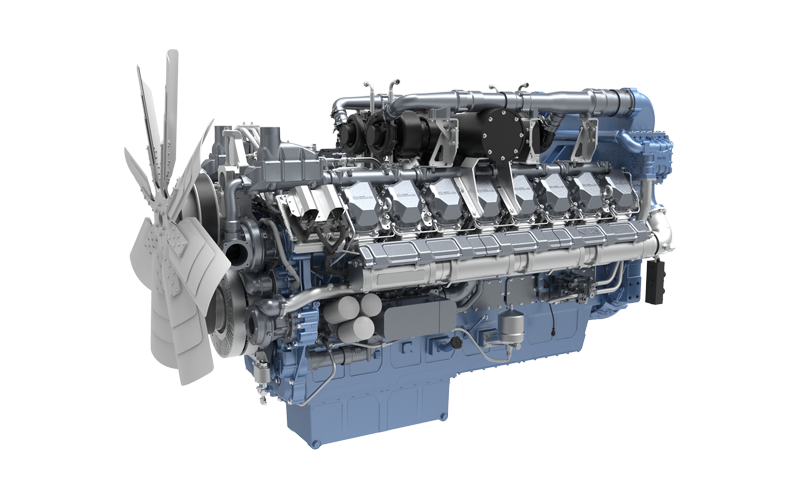

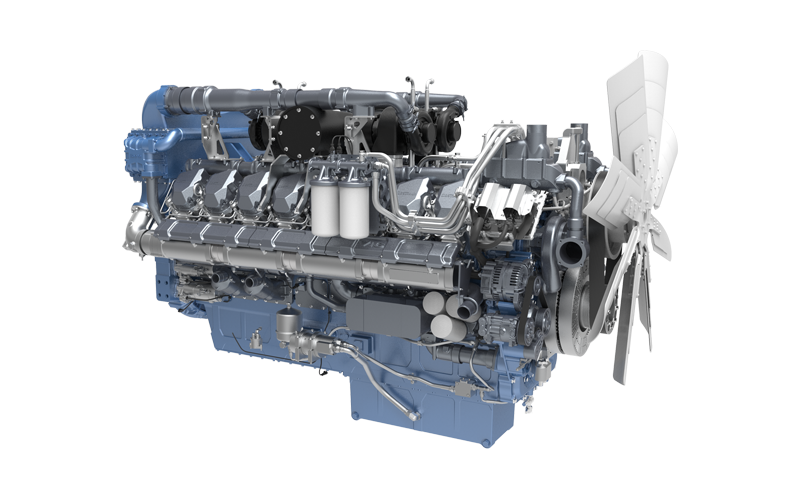

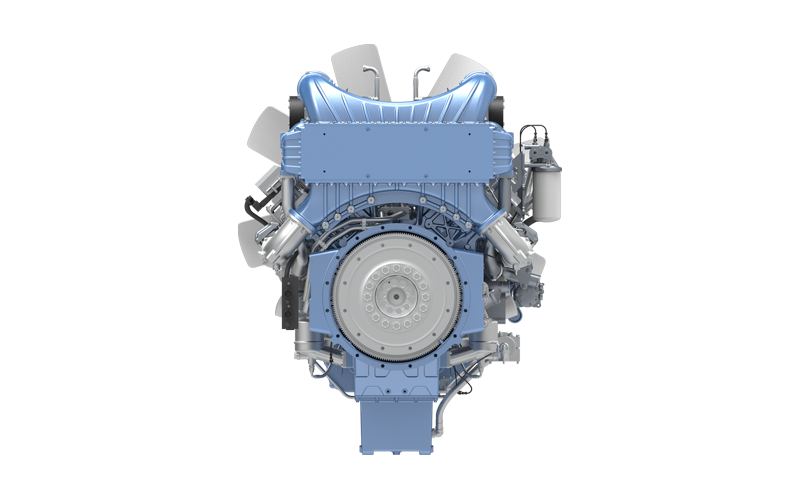

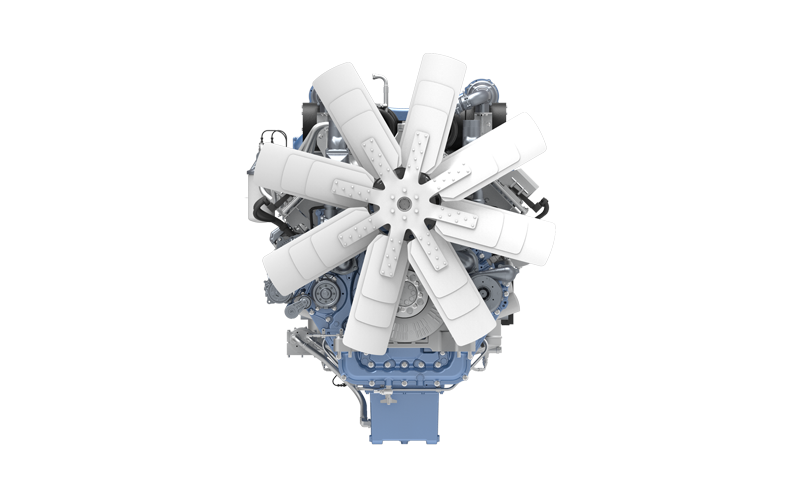

16M33 Engine for Rigid Mining Dump Truck

Adapted for 130–180t mining trucks.

1194-1492

功率范围 kW/Ps

8000/1500-1700

最大扭矩/转速 N·m / r/min

产品手册下载服务图标

服务支持

立即询价产品咨询

/Products & Businesses/Powertrain System/Engine/Construction Machinery Engine/Engine for Rigid Mining Dump Truck

概述优势规格型谱表

产品概述

V-type, 16-cylinder, four-stroke, turbocharged, water-air intercooled, displacement of 52.3 L, rated power of 1492 kW, rated speed 1900 rpm, maximum torque/speed of 8000 N·m / 1500–1700 rpm.

产品优势

Comprehensive fuel consumption is 7% lower than competing products, effectively reducing operating costs.

High-strength cast iron cylinder block and steel piston design, overhaul interval of 20000 h, and maintenance interval of 500 h.

High and low temperature dual-stage cooling, supporting stable operation in the full temperature range of -50℃ to 50℃.

High level of product serialization, standardization, and modularization, with a machine modularization rate of 90%.

产品规格

功率范围 kW/Ps

1194-1492

最大扭矩转速 N·m / r/min

8000/1500-1700

排放标准

China Non-road Stage III

燃料

Diesel

发动机型式

V-type

气缸数

气门数

排量 L

52.3

进气方式

Turbocharged and intercooled

发动机尺寸（长X宽X高） mm

2924×1562×2204

G重量 kg

5593

备注：产品参数及图片仅供参考；如有变动，不另行通知。

型谱表

Model	Rated power/speed (kW/rpm)	Peak torque/speed (N·m/rpm)	Displacement (L)	Emission standard	Technical route	Target applications	Number of valves
16M33G1625E304	1194/1900	6500/1500-1700	52.3	China Non-road Stage III	Common rail	130–180t dump truck	4
16M33G2000E304	1492/1900	8000/1500-1700	52.3	China Non-road Stage III	Common rail	320t dump truck, dual-engine	4
