产品概述

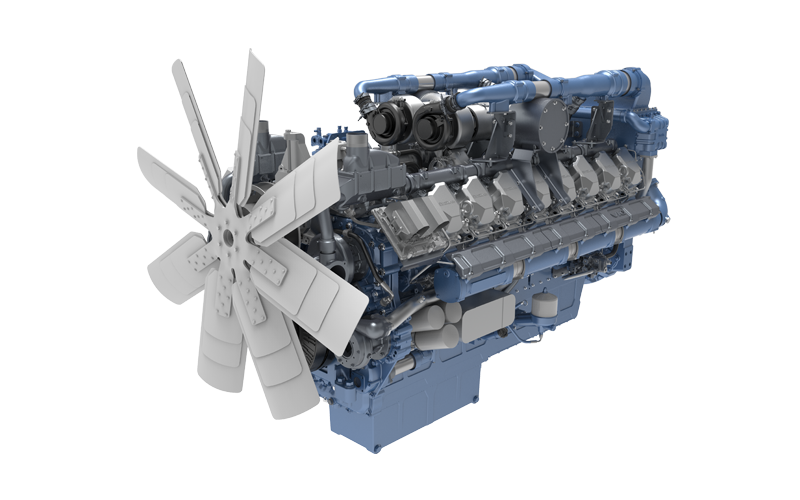

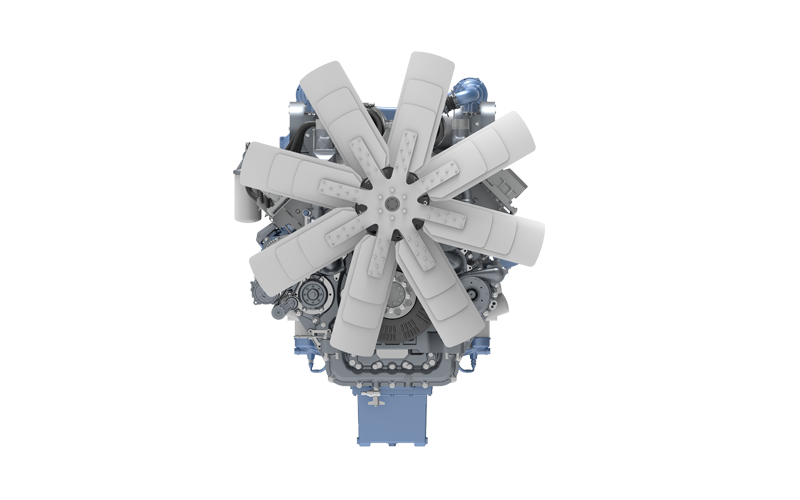

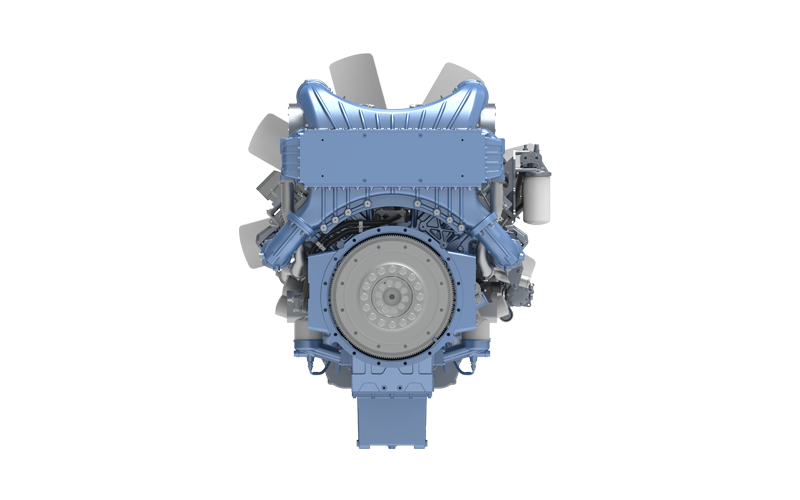

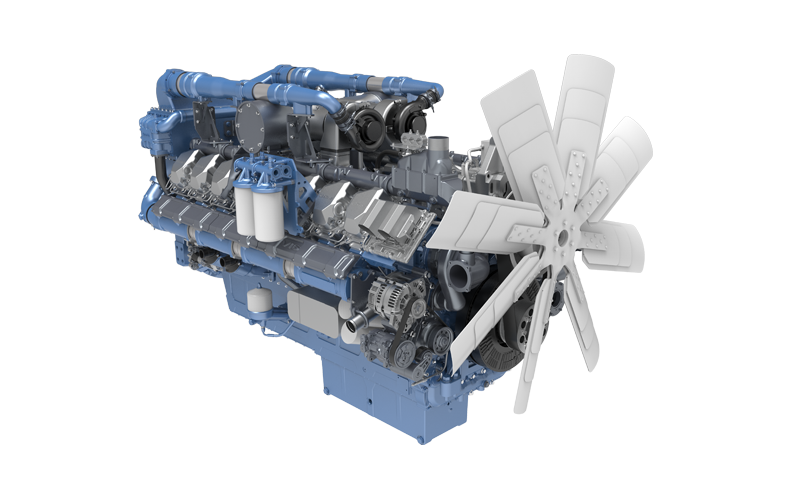

The 16M33 series engine adopts a V-type, 16-cylinder, four-stroke configuration, with an engine displacement of 52.3 L, rated power ranging from 1169 kW to 1492 kW, rated speeds of 1800 rpm and 1900 rpm, and a maximum torque/speed of 8000 N·m / 1500–1700 rpm. Utilizes a high-pressure common rail system and a turbocharged and intercooled intake system, meeting China Non-road Stage III emission regulations.
产品优势
Economical and energy-efficient with lower fuel consumption: comprehensive fuel consumption is 7% lower than competing products, reducing operating costs.
Inherently robust, ready for challenges: High-strength cast iron cylinder block and steel pistons, with an overhaul interval of 20,000 h and a maintenance interval of 500 h.
Full environmental adaptability: stable operation in extreme cold and high-temperature environments ranging from -50℃ to 50℃.
Modular design for worry-free maintenance: High degree of product serialization, standardization, and modularization, with a machine modularization rate of 90%.
Strong high-altitude performance: no power derating at altitudes up to 3,000 meters, and development for 5,000 meters available upon customer request.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
16M33G1600 |
1169/1800 |
6500/1500 |
52.3 |
Overseas version with no emission requirements |
Electronically controlled high-pressure common rail |
1800 rail milling machines, 1435kW locomotives |
4 |
|
16M33G2000 |
1468/1800 |
8000/1500 |
52.3 |
Overseas version with no emission requirements |
Electronically controlled high-pressure common rail |
1800 rail milling machines, 1435kW locomotives |
4 |
|
16M33G1625E304 |
1194/1900 |
6500/1500-1700 |
52.3 |
China Non-road Stage III |
Electronically controlled high-pressure common rail |
1800 rail milling machines, 1435kW locomotives |
4 |
|
16M33G2000E304 |
1492/1900 |
8000/1500-1700 |
52.3 |
China Non-road Stage III |
Electronically controlled high-pressure common rail |
1800 rail milling machines, 1435kW locomotives |
4 |
