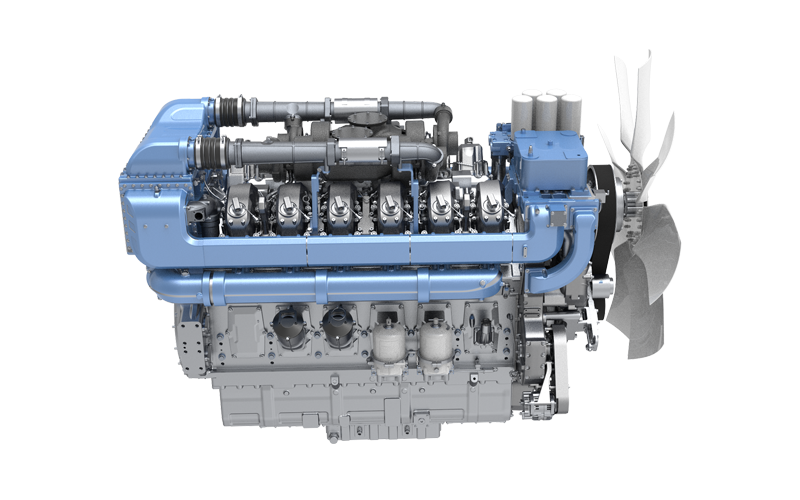

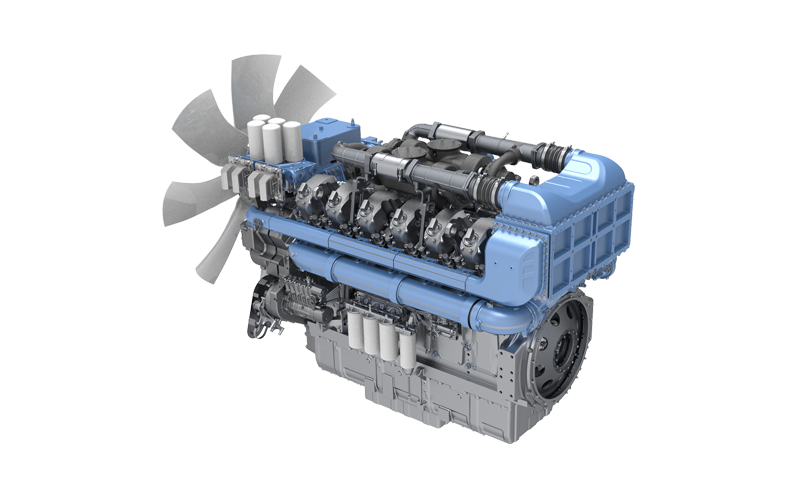

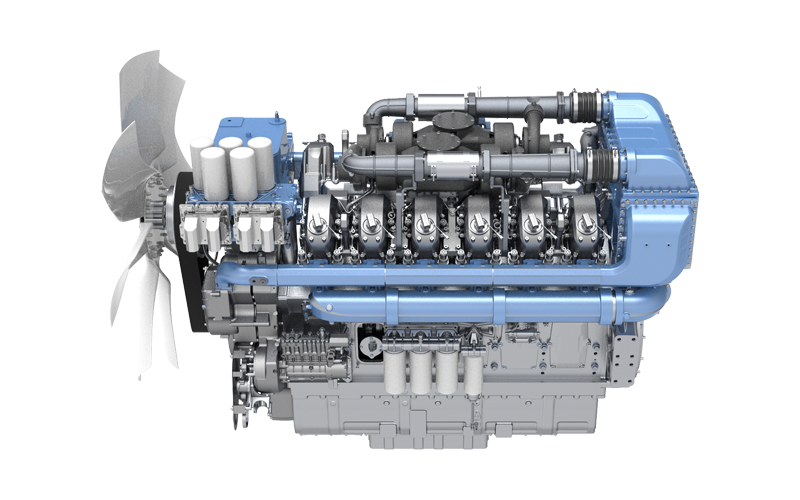

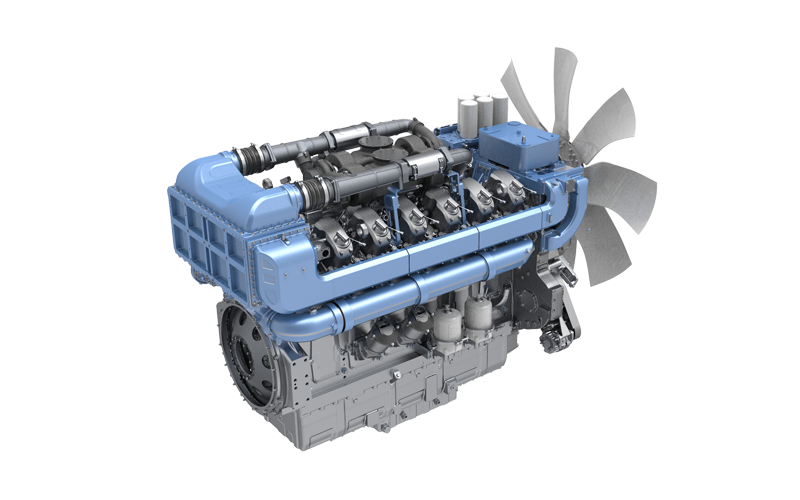

12M55 Engine for Railway Vehicle

Adapted for 96-head rail grinders, 200-head rail grinders, and 2000kW locomotives.

1716-2205/2335-3000

功率范围 kW/Ps

12868/1300-1400

最大扭矩/转速 N·m / r/min

产品手册下载服务图标

服务支持

立即询价产品咨询

/Products & Businesses/Powertrain System/Engine/Construction Machinery Engine/Engine for Rail Car

概述优势规格型谱表

产品概述

The 12M55 series engine adopts a V-type, 12-cylinder, four-stroke configuration, with an engine displacement of 65.65 L, rated power ranging from 1716 kW to 2205 kW, a rated speed of 1800 rpm, and a maximum torque/speed of 12868 N·m / 1400 rpm. Utilizes a high-pressure common rail system and a turbocharged and intercooled intake system, meeting China Non-road Stage III emission regulations.

产品优势

Economical and energy-efficient with lower fuel consumption: comprehensive fuel consumption is 8 g/kW·h lower than competing products, reducing operating costs.

Inherently robust, ready for challenges: Features high-reliability structural design technology, including a flanged cylinder block and double-sided tension bolts, with optimized front and rear end stiffness of the cylinder block to improve engine reliability; overhaul interval of 20,000 h, and maintenance interval of 500 h.

Full environmental adaptability: stable operation in extreme cold and high-temperature environments ranging from -50℃ to 50℃.

Weichai's proprietary powertrain optimization technology: reduces overall unit vibration and torsional vibration stress on the motor shaft, with NVH performance superior to competing products.

Strong high-altitude performance: no power derating at altitudes up to 2,500 meters, power derating ≤ 10% at 3,000 meters, and development for 5,000 meters available upon customer request.

产品规格

功率范围 kW/Ps

1716-2205/2335-3000

最大扭矩转速 N·m / r/min

12868/1300-1400

排放标准

China Non-road Stage III

燃料

Diesel, Natural gas, Biodiesel

发动机型式

V-type

气缸数

气门数

排量 L

65.65

进气方式

Turbocharged and intercooled

发动机尺寸（长X宽X高） mm

2851×1545×2149

G重量 kg

10028

备注：产品参数及图片仅供参考；如有变动，不另行通知。

型谱表

Model	Rated power/speed (kW/rpm)	Peak torque/speed (N·m/rpm)	Displacement (L)	Emission standard	Technical route	Target applications	Number of valves
12M55G2335	1716/1800	11700/1400	65.65	Overseas version with no emission requirements	Electronically controlled high-pressure common rail	96-head rail grinders (high-altitude), 200-head rail grinders, 2000kW locomotives	4
12M55G2335E305	1716/1800	10014/1400	65.65	China Non-road Stage III	Electronically controlled high-pressure common rail	96-head rail grinders (high-altitude), 200-head rail grinders, 2000kW locomotives	4
12M55	1820/1800	10152/1600	65.65	China Non-road Stage III	Electronically controlled high-pressure common rail	96-head rail grinders (high-altitude), 200-head rail grinders, 2000kW locomotives	4
12M55G2535	1865/1800	11750/1400	65.65	Overseas version with no emission requirements	Electronically controlled high-pressure common rail	96-head rail grinders (high-altitude), 200-head rail grinders, 2000kW locomotives	4
12M55G2535E305	1865/1800	10884/1400	65.65	China Non-road Stage III	Electronically controlled high-pressure common rail	96-head rail grinders (high-altitude), 200-head rail grinders, 2000kW locomotives	4
12M55G2735E305	2013/1800	11750/1400	65.65	China Non-road Stage III	Electronically controlled high-pressure common rail	96-head rail grinders (high-altitude), 200-head rail grinders, 2000kW locomotives	4
12M55G2850	2095/1800	12500/1400	65.65	Overseas version with no emission requirements	Electronically controlled high-pressure common rail	96-head rail grinders (high-altitude), 200-head rail grinders, 2000kW locomotives	4
12M55G2850E305	2095/1800	12500/1400	65.65	China Non-road Stage III	Electronically controlled high-pressure common rail	96-head rail grinders (high-altitude), 200-head rail grinders, 2000kW locomotives	4
12M55G3000E305	2205/1800	12868/1400	65.65	China Non-road Stage III	Electronically controlled high-pressure common rail	96-head rail grinders (high-altitude), 200-head rail grinders, 2000kW locomotives	4
12M55G3050E305	2240/1800	12828/1400	65.65	China Non-road Stage III	Electronically controlled high-pressure common rail	96-head rail grinders (high-altitude), 200-head rail grinders, 2000kW locomotives	4
