产品概述

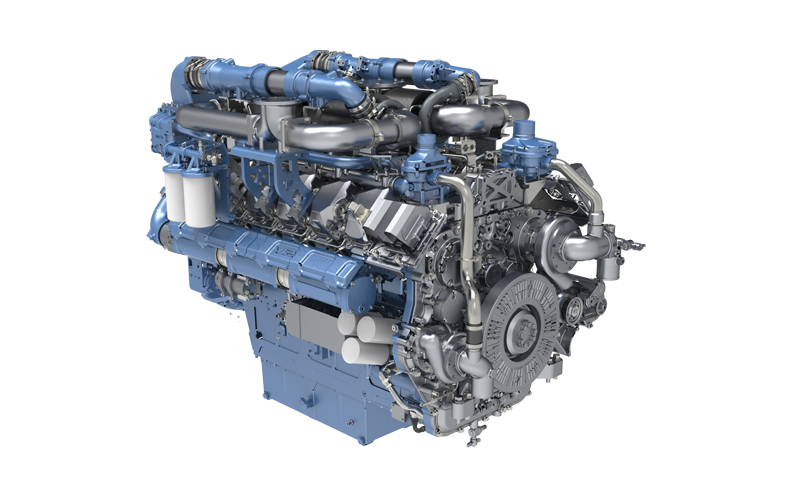

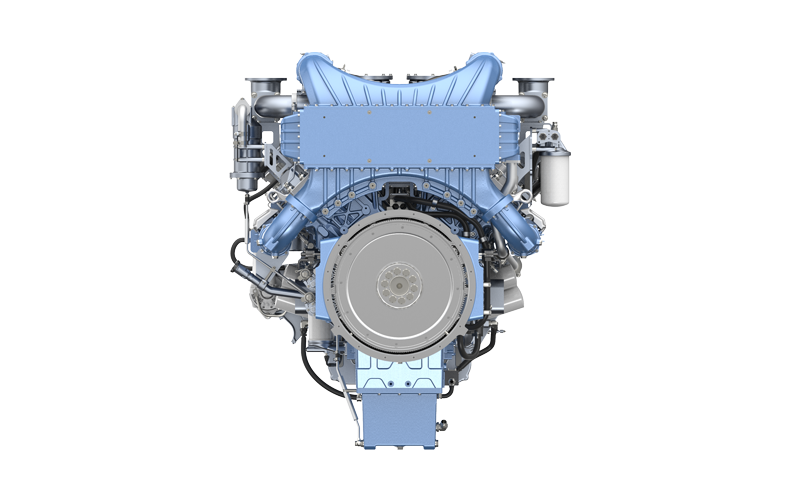

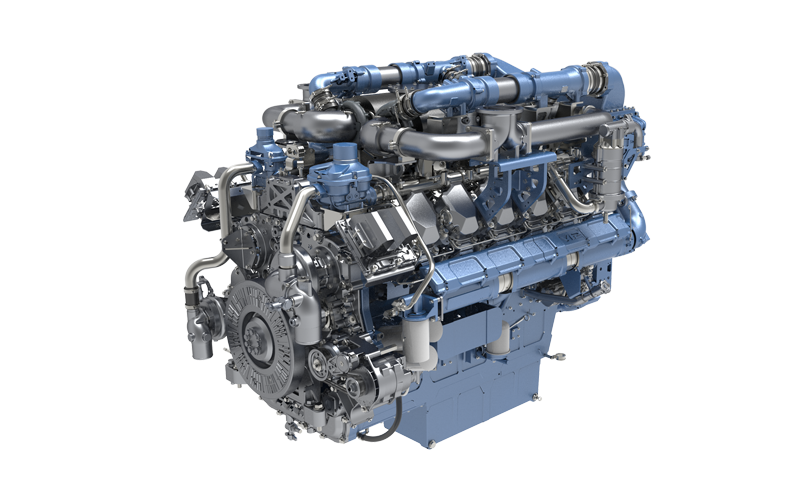

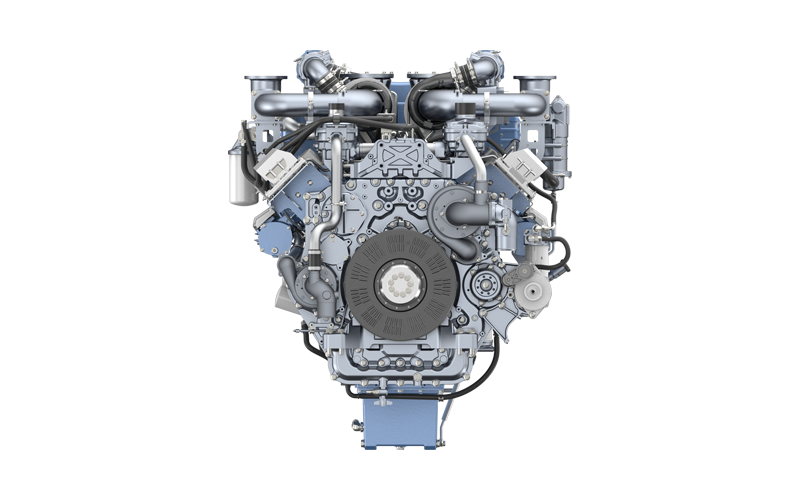

12-cylinder, V-type, four-stroke, electronically controlled high-pressure common rail, turbocharged and intercooled, displacement of 39.2 L, rated power of 900 kW, rated speed 1800 rpm, maximum torque/speed of 5800 N·m / 1300–1400 rpm
产品优势
Powerful performance: Maximum power of 900 kW, maximum torque of 5800 N·m.
Excellent fuel economy, with fuel consumption in typical operating ranges 14–18 g/kW·h lower than competing products.
Superior NVH performance, with noise 2 dB(A) lower than competing products.
Capable of high-altitude operation at 5000m, with an allowable ambient temperature range of -50–50℃.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
12M33G1225E305 |
900/1800 |
5800/1300-1400 |
39.2 |
China Non-road Stage III |
Electronically controlled high-pressure common rail |
250–350mm bore drilling rig |
4 |
