WEICHAI

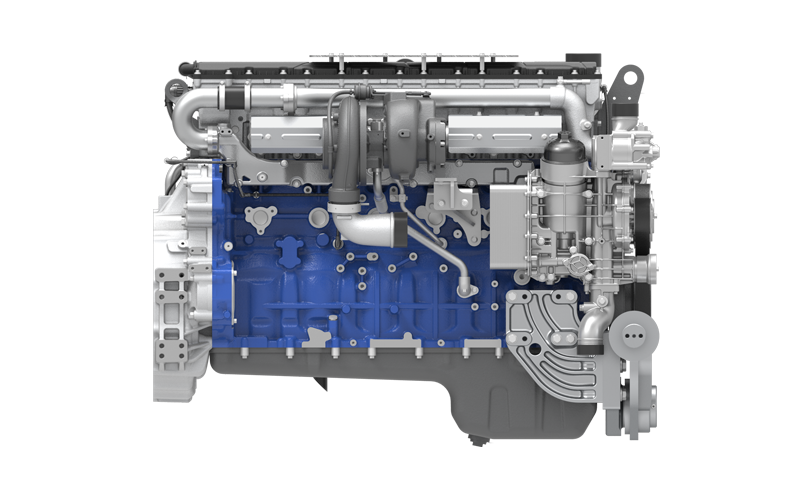

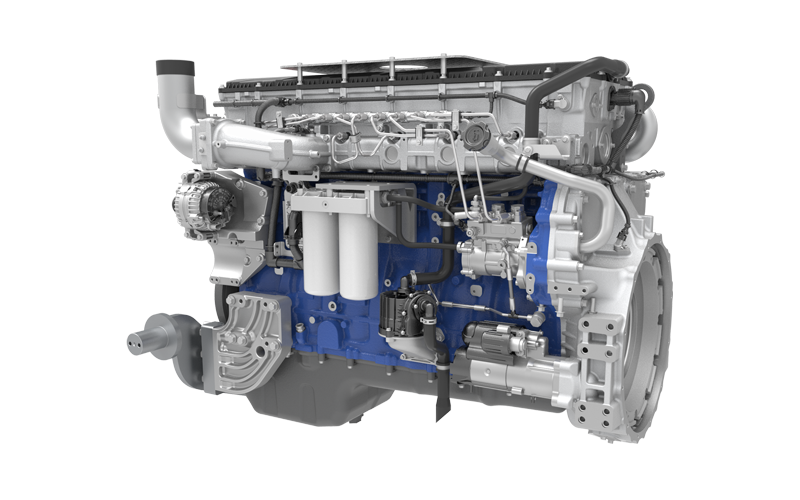

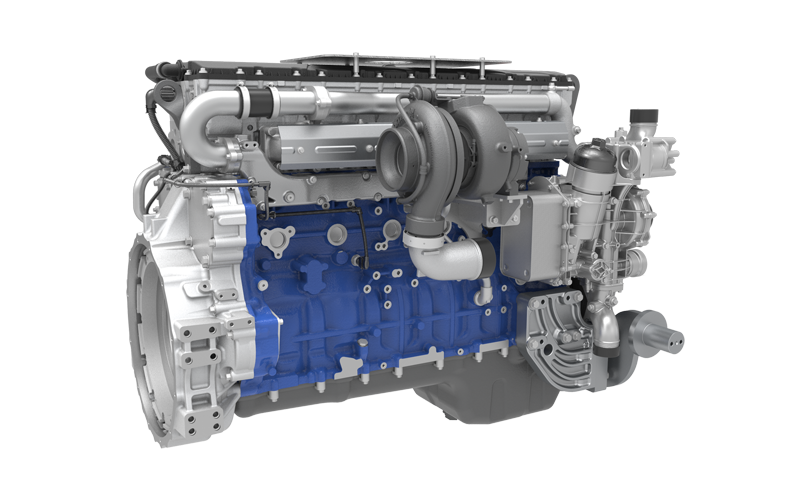

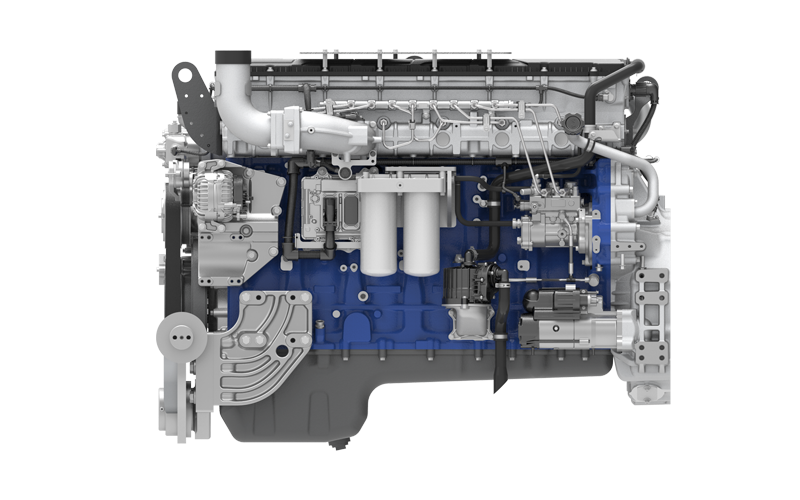

WP17T Engine for Bulldozer

Adapted for 400–460Ps bulldozers

400-566/544-770

功率范围 kW/Ps

3300/1200-1600

最大扭矩/转速 N·m / r/min

产品概述

eatures high torque, powerful performance, low fuel consumption, and high reliability, meeting the needs of harsh mining conditions such as high altitude, extreme cold, high vibration, heavy dust, and high loads.

产品优势

Reliability: Reinforced core components with a brand-new structural design tailored for the high-speed and high-load applications of bulldozers, ensuring superior reliability.

Dynamics: Maximum power of 566 kW, maximum torque of 3000 N·m, providing powerful performance and excellent vehicle adaptability.

Economy: High thermal efficiency platform product with high peak firing pressure design and optimized combustion, achieving lower minimum specific fuel consumption.

Adaptability: Capable of operating in diverse environments including high altitude (5300m), extreme cold (-50℃), high vibration (2 times higher than on-road vehicles), heavy dust (130 times higher than on-road vehicles), and high loads (average load factor of 90%); features a 500h oil change interval, resulting in low operating costs.

产品规格

功率范围 kW/Ps
400-566/544-770
最大扭矩转速 N·m / r/min
3300/1200-1600
排放标准
Stage ⅢA
燃料
Diesel
发动机型式
In-line
气缸数
6
气门数
4
排量 L
16.6
进气方式
Turbocharged and intercooled
发动机尺寸(长X宽X高) mm
1560×979×1574
G重量 kg
1430

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Model

Rated power/speed (kW/rpm)

Peak torque/speed (N·m/rpm)

Displacement (L)

Emission standard

Technical route

Target applications

Number of valves

WP17TG544E305

400/1800

2430/1400

16.6

Stage ⅢA

CR

400Ps bulldozer

4

WP17TG770E304

566/1900

3300/1200-1600

16.6

Stage ⅢA

CR

460Ps bulldozer

4
