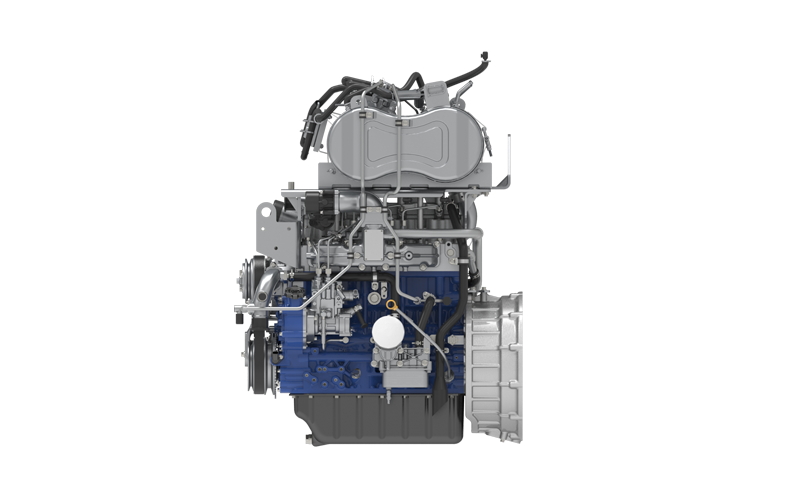

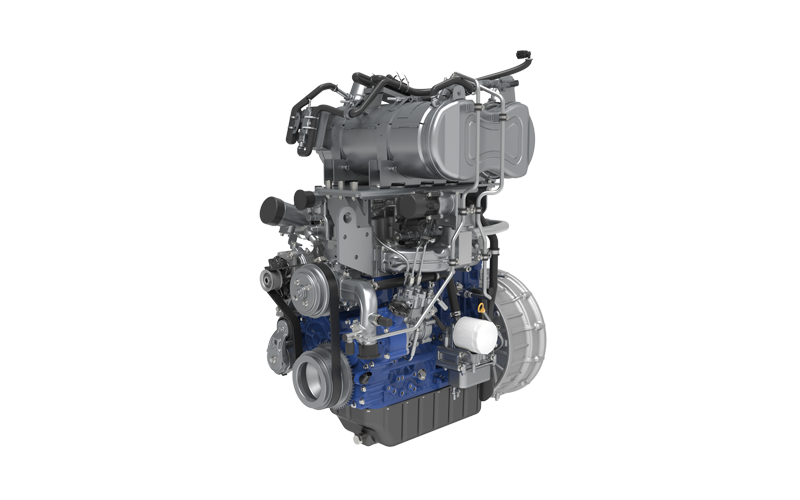

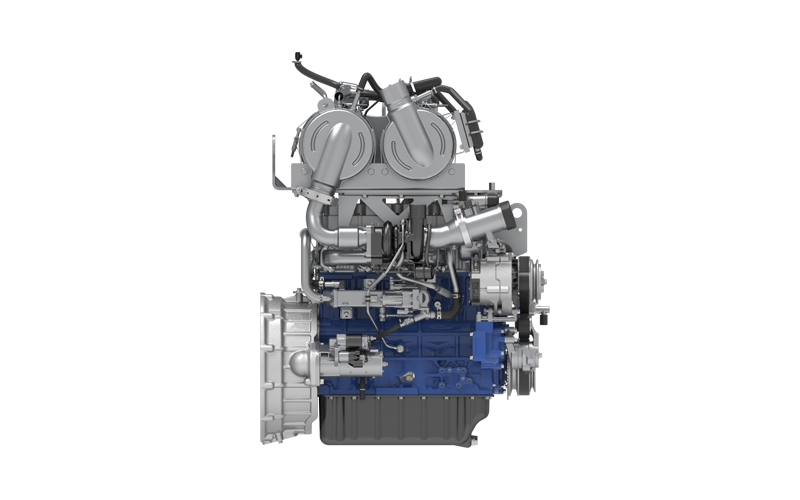

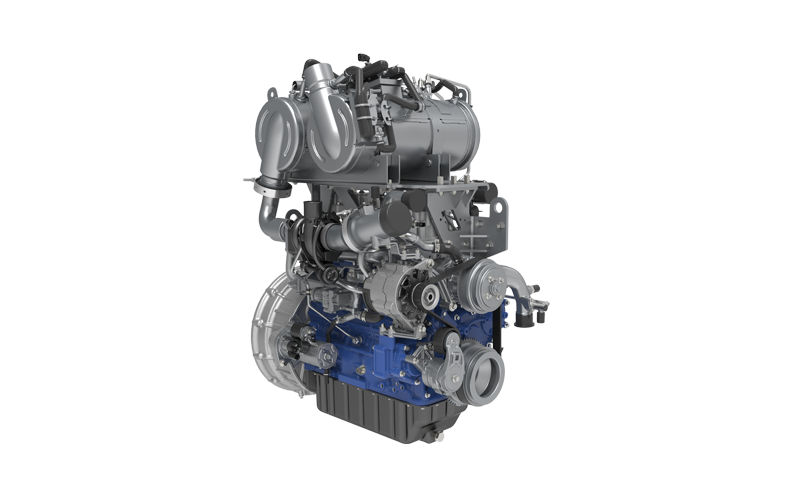

WP3.6N Engine for Backhoe Loader

Adapted for 2–3.5t backhoe loaders

74-82/101-112

功率范围 kW/Ps

500/1500

最大扭矩/转速 N·m / r/min

产品手册下载服务图标

服务支持

立即询价产品咨询

/Products & Businesses/Powertrain System/Engine/Construction Machinery Engine/Engine for Backhoe Loader

概述优势规格型谱表

产品概述

The WP3.6N is compatible with multifunctional machinery such as backhoe loaders and is currently in batch application. It features a single-cylinder four-valve structure and high low-speed torque, characterized by strong power performance, low fuel consumption, and high reliability.

产品优势

The electronic control unit (ECU) is compatible with both 12V and 24V electrical systems, and the engine mount design facilitates convenient vehicle integration.

Suitable for operation between -25°C and 50°C at altitudes up to 4000m.

500 h extended oil change interval to reduce operating costs.

Platform-based design with modular component layout, high integration, and a neat, aesthetically pleasing appearance.

产品规格

功率范围 kW/Ps

74-82/101-112

最大扭矩转速 N·m / r/min

500/1500

排放标准

Stage ⅢA, Stage Ⅴ

燃料

Diesel

发动机型式

In-line

气缸数

气门数

排量 L

3.58

进气方式

Turbocharged and intercooled

发动机尺寸（长X宽X高） mm

911×668×785

G重量 kg

353

备注：产品参数及图片仅供参考；如有变动，不另行通知。

型谱表

Model	Rated power/speed (kW/rpm)	Peak torque/speed (N·m/rpm)	Displacement (L)	Emission standard	Technical route	Target applications	Number of valves
WP3.6NG102E301	75/2200	435/1600	3.58	Stage IIIA	Electronically controlled high-pressure common rail	2.5t backhoe loader	4
WP3.6NG112E301	82.5/2200	465/1600	3.58	Stage IIIA	Electronically controlled high-pressure common rail	3t backhoe loader	4
WP3.6NG101E680	74/2200	450/1500	3.58	Stage V	EGR+DOC+DPF+SCR	2.5t backhoe loader	4
WP3.6NG112E680	82/2200	500/1500	3.58	Stage V	EGR+DOC+DPF+SCR	3t backhoe loader	4
