产品概述

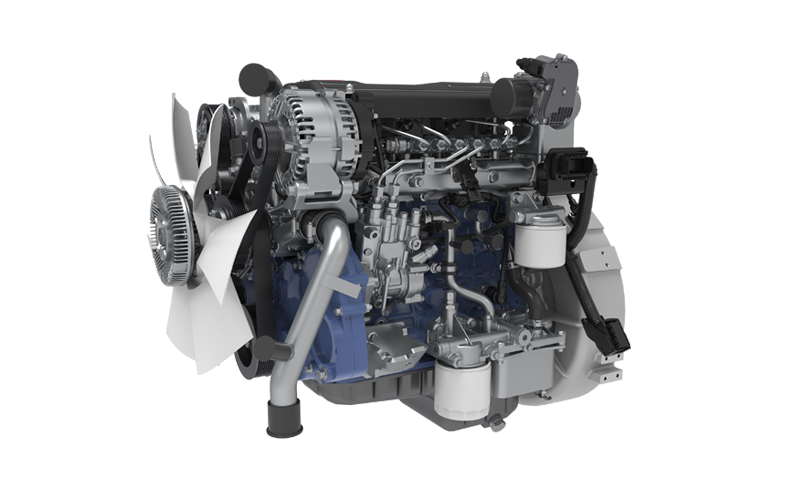

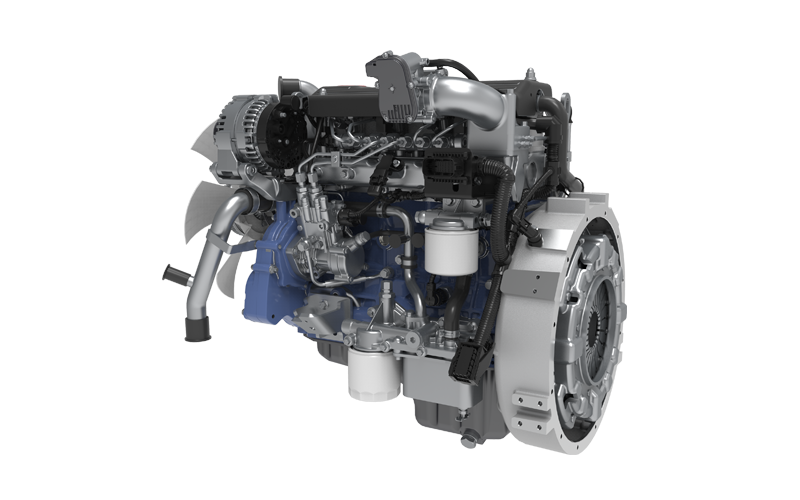

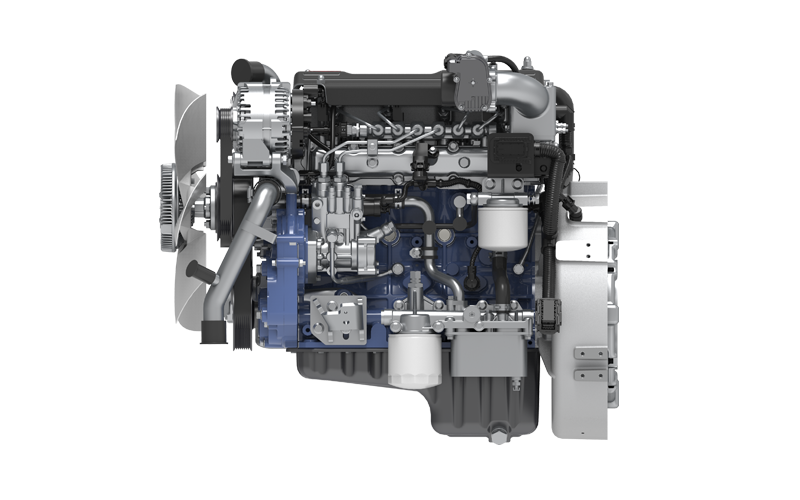

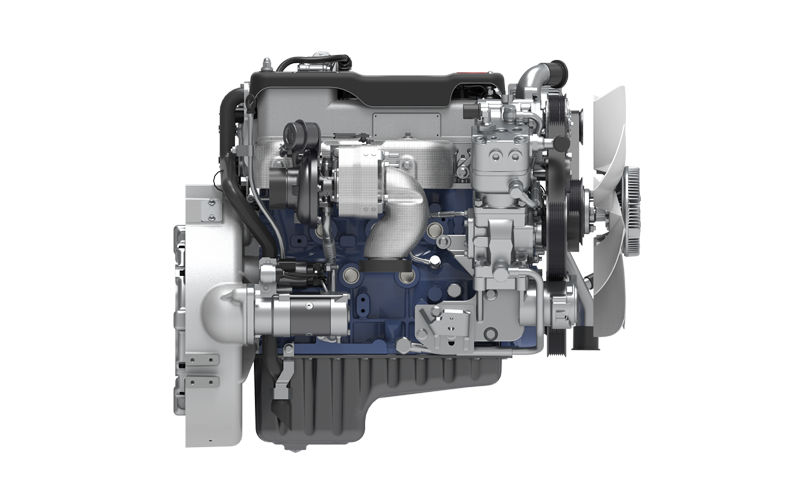

The WP2.5T engine is a newly designed product. Inheriting a classic, proven platform, it has undergone durability testing in high-temperature, high-altitude, and cold climates, ensuring high reliability; With a peak torque of 500 N·m, it meets power requirements for various operating conditions with strong performance; Modular product design with high commonality of maintenance parts ensures convenient servicing.
产品优势
Power performance: Structural optimization and upgrades, re-matched development of high-efficiency turbocharger, and a peak torque of 500 N·m provide strong power for high transport efficiency.
Economy: Development of a brand-new high-efficiency fuel system + optimization of air system and ECU strategies, with fuel consumption in common operating areas 5–12 g/kW·h lower than competing products.
Reliability: Inheriting classic quality, with further optimized engine block and cylinder head structure, 10% increase in strength, material upgrades for critical components like the crankshaft and connecting rods, and a 50% increase in service life to meet the high reliability requirements of the T-series.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
WP2.5T140E62 |
100/2900 |
340/1400-2400 |
2.45 |
Euro VI |
CR+DOC+DPF+SCR |
Light bus |
2 |
|
WP2.5T160E62 |
118/2900 |
400/1400-2400 |
2.45 |
Euro VI |
CR+DOC+DPF+SCR |
Light bus |
2 |
|
WP2.5T170E62 |
121/2900 |
450/1400-2000 |
2.45 |
Euro VI |
CR+DOC+DPF+SCR |
Light bus |
2 |
|
WP2.5T180E62 |
132/2900 |
500/1400-1800 |
2.45 |
Euro VI |
CR+DOC+DPF+SCR |
Light bus |
2 |
|
WP2.5T190E62 |
133/2900 |
495/1400-1800 |
2.45 |
Euro VI |
CR+DOC+DPF+SCR |
Light bus |
2 |
|
WP2.5T140E50 |
100/2900 |
340/1400-2400 |
2.45 |
Euro V |
CR+SCR |
Light bus |
2 |
|
WP2.5T160E50 |
118/2900 |
400/1400-2400 |
2.45 |
Euro V |
CR+SCR |
Light bus |
2 |
|
WP2.5T170E50 |
121/2900 |
450/1400-2000 |
2.45 |
Euro V |
CR+SCR |
Light bus |
2 |
|
WP2.5T180E50 |
132/2900 |
500/1400-1800 |
2.45 |
Euro V |
CR+SCR |
Light bus |
2 |
|
WP2.5T190E50 |
133/2900 |
495/1400-1800 |
2.45 |
Euro V |
CR+SCR |
Light bus |
2 |
|
WP2.5T140E30 |
100/2900 |
340/1400-2400 |
2.45 |
Euro III |
CR |
Light bus |
2 |
|
WP2.5T160E30 |
118/2900 |
400/1400-2400 |
2.45 |
Euro III |
CR |
Light bus |
2 |
|
WP2.5T170E30 |
121/2900 |
450/1400-2000 |
2.45 |
Euro III |
CR |
Light bus |
2 |
|
WP2.5T180E30 |
132/2900 |
500/1400-1800 |
2.45 |
Euro III |
CR |
Light bus |
2 |
|
WP2.5T190E30 |
133/2900 |
495/1400-1800 |
2.45 |
Euro III |
CR |
Light bus |
2 |
