WEICHAI

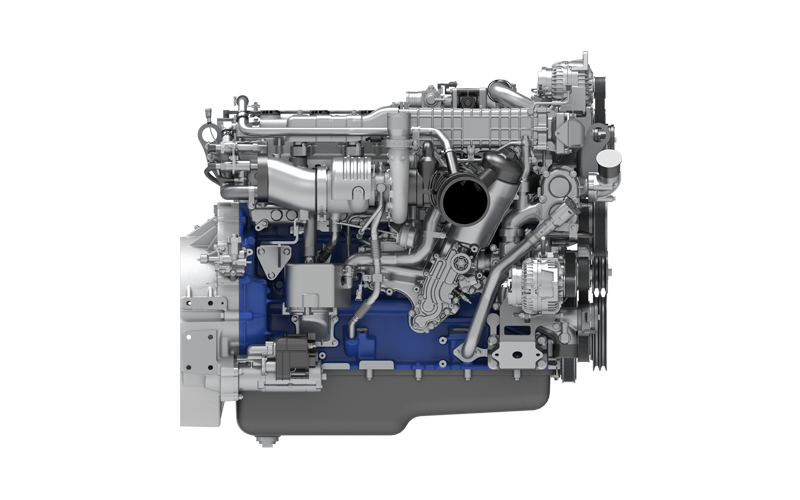

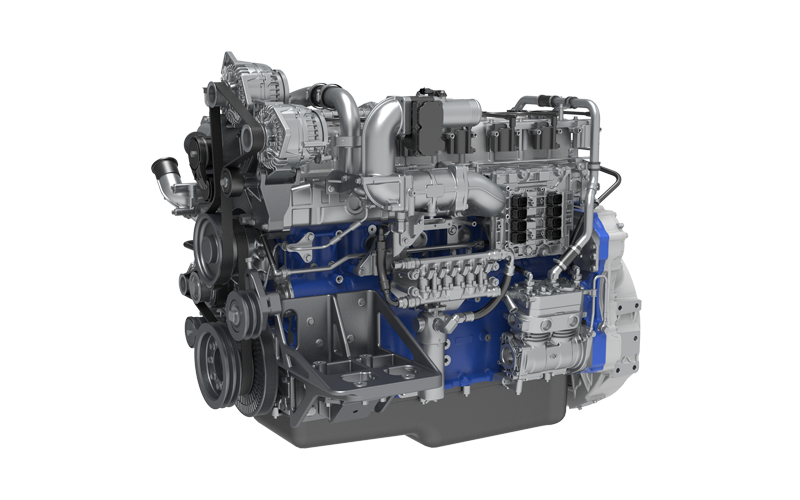

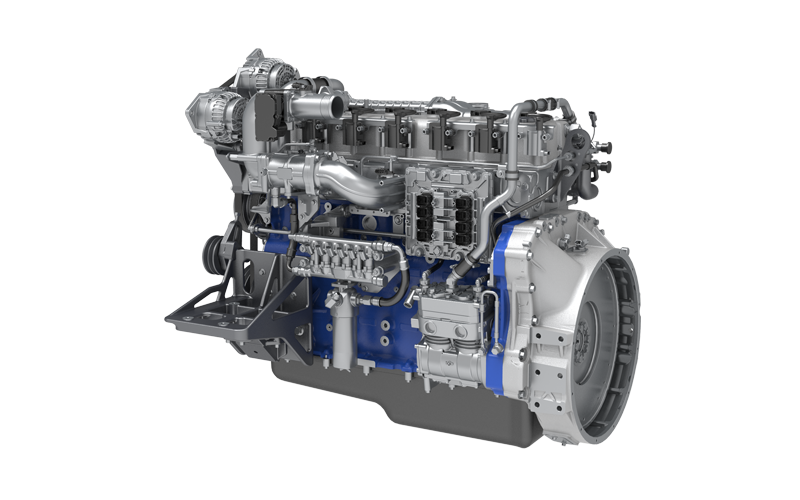

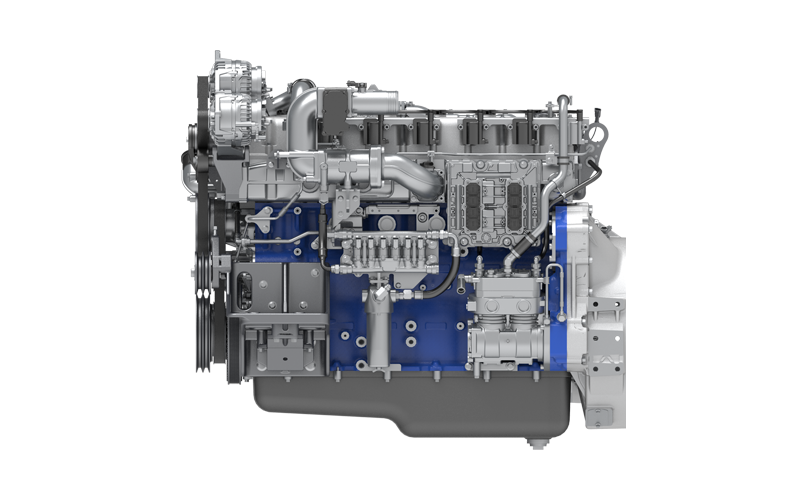

Engine for transit buses WP10.5HNG

Target applications: city bus

257-316/350-430

功率范围 kW/Ps

1950/900-1400

最大扭矩/转速 N·m / r/min

产品概述

Natural gas version of the first product in the Weichai H-series, with power coverage of 257–316 kW, meeting Euro VI emission standards.

产品优势

Low gas consumption: Pulse exhaust system + pressure-stabilized waste gas control technology ensures more precise control and lower gas consumption, which is 6–10 g/kW·h lower than products with similar power.

Lightweight design: H1 platform modular design, featuring integrated wiring harness, integrated engine cooling/oil cooling module, and cast aluminum flywheel housing.

Excellent NVH performance: Vibration-damping and noise-reducing oil pan further reduces vibration and noise, being 1–3 dB(A) lower than competing products.

Powerful performance: High-tumble intake technology achieves a comprehensive breakthrough in power, with a peak torque of 1950 N·m.

Aesthetic upgrade: Family-style design, with smoother and more aesthetic gas and electrical routing.

产品规格

功率范围 kW/Ps
257-316/350-430
最大扭矩转速 N·m / r/min
1950/900-1400
排放标准
Euro VI
燃料
Natural gas
发动机型式
In-line
气缸数
6
气门数
4
排量 L
10.52
进气方式
Turbocharged and intercooled
发动机尺寸(长X宽X高) mm
1250×1026×1170
G重量 kg
835

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Model

Rated power/speed (kW/rpm)

Peak torque/speed (N·m/rpm)

Displacement (L)

Emission standard

Technical route

Target applications

Number of valves

WP10.5HNG430E62

316/1900

1950/900~1400

10.52

Euro VI

ER+EGR+TWC

Urban City Buses

4

WP10.5HNG390E62

287/1900

1800/900~1400

10.52

Euro VI

ER+EGR+TWC

Urban City Buses

4

WP10.5HNG350E62

257/1900

1500/1000~1600

10.52

Euro VI

ER+EGR+TWC

Urban City Buses

4
