产品概述

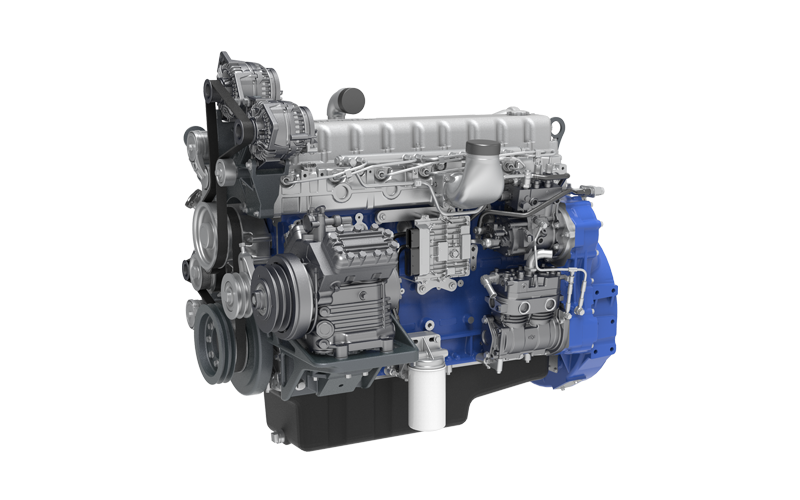

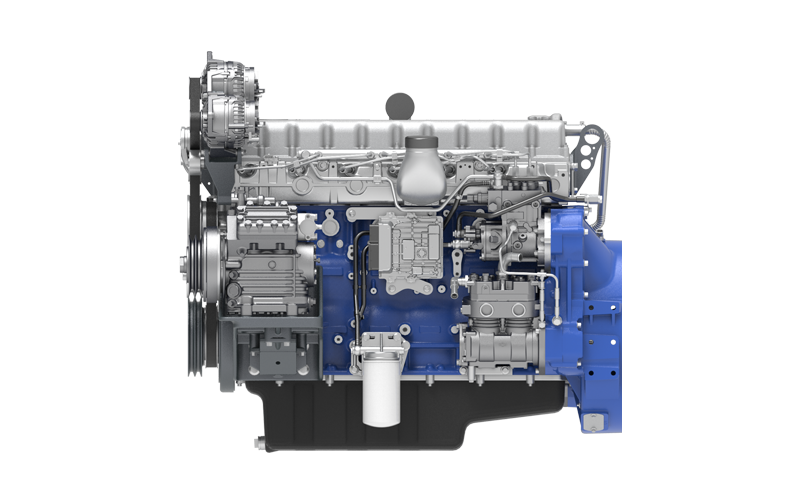

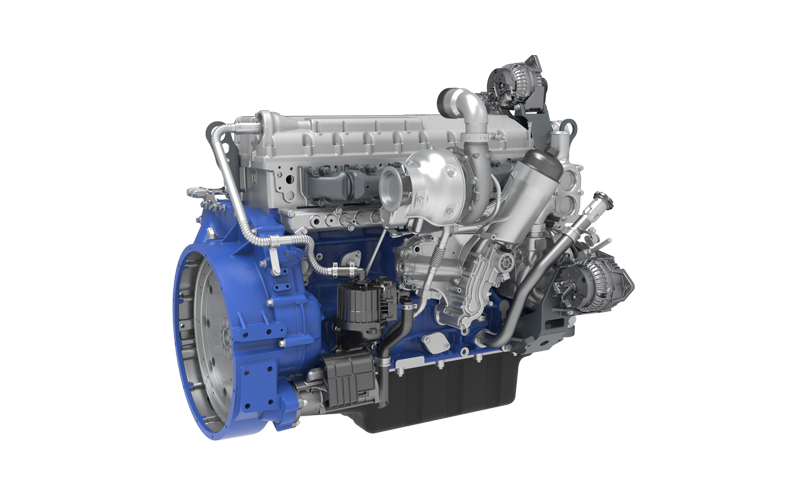

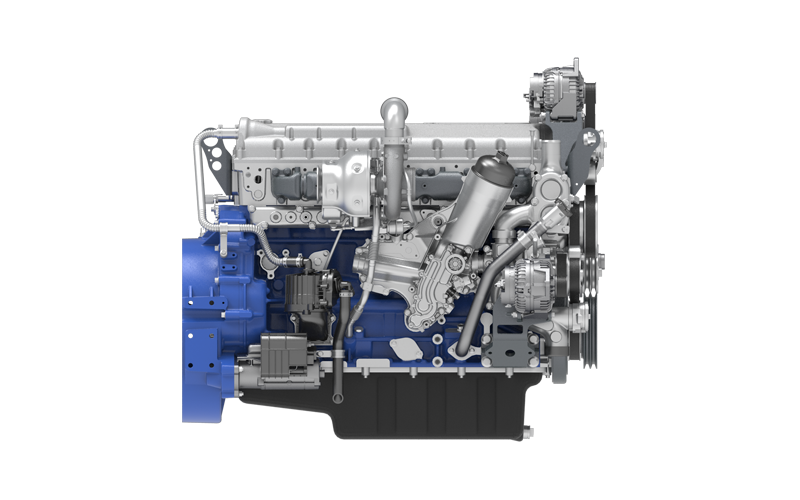

Weichai H-series products offer three displacements on a single platform to meet the power requirements of different vehicle models. Featuring advanced design concepts, they outperform comparable products in terms of power, fuel economy, and reliability.
产品优势
Powerful performance: Power coverage of 350–400 Ps and peak torque of 1900 N·m, perfectly handling various complex operating conditions.
Economical and fuel-saving: Upgraded engine body and combustion optimization, combined with optimized aftertreatment system to reduce back pressure, delivering superior fuel economy.
Superior quality: Structural optimization of the engine and muffler enhances NVH performance and improves comfort.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
WP10H400E62 |
294/1900 |
1900/1200-1300 |
9.5 |
Euro VI |
CR+DOC+DPF+SCR |
Target applications: city bus, tourist bus |
4 |
|
WP10H375E62 |
276/1900 |
1800/1000-1400 |
9.5 |
Euro VI |
CR+DOC+DPF+SCR |
Target applications: city bus, tourist bus |
4 |
|
WP10H375E50 |
276/1900 |
1800/1000-1400 |
9.5 |
Euro V |
CR+SCR |
Target applications: city bus, tourist bus |
4 |
|
WP10H400E50 |
294/1900 |
1900/1200-1300 |
9.5 |
Euro V |
CR+SCR |
Target applications: city bus, tourist bus |
4 |
|
WP10H350E30 |
257/1900 |
1700/1000-1400 |
9.5 |
Euro III |
CR |
Target applications: city bus, tourist bus |
4 |
|
WP10H375E30 |
276/1900 |
1800/1000-1400 |
9.5 |
Euro III |
CR |
Target applications: city bus, tourist bus |
4 |
|
WP10H400E30 |
294/1900 |
1900/1200-1300 |
9.5 |
Euro III |
CR |
Target applications: city bus, tourist bus |
4 |
