产品概述

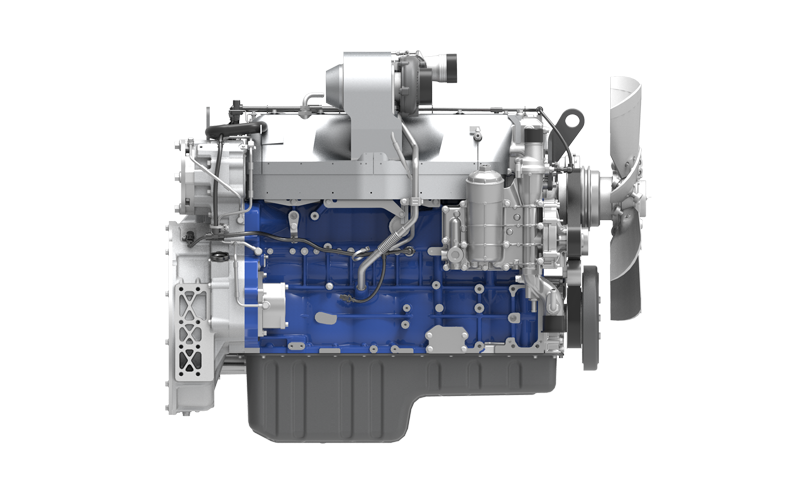

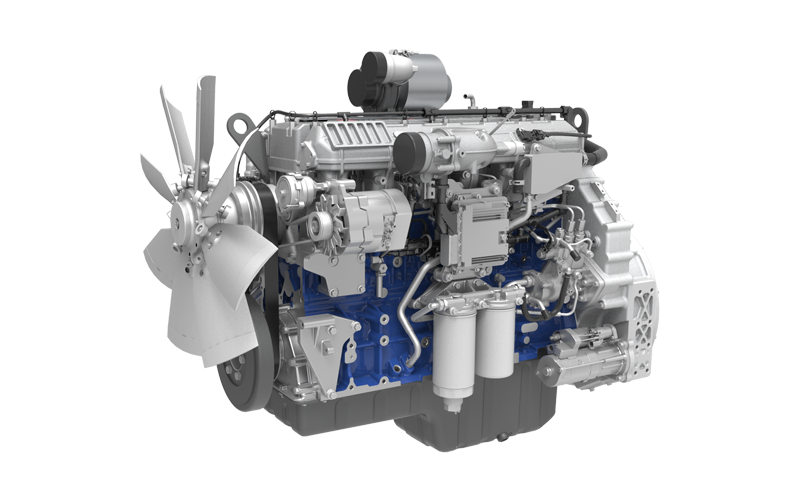

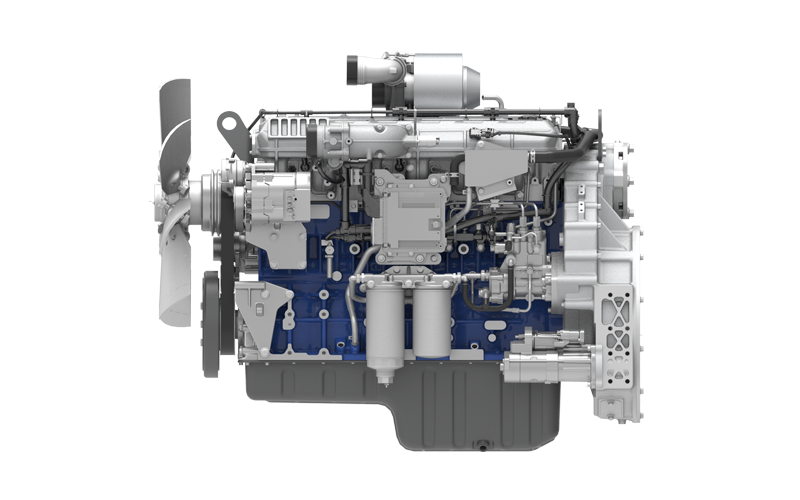

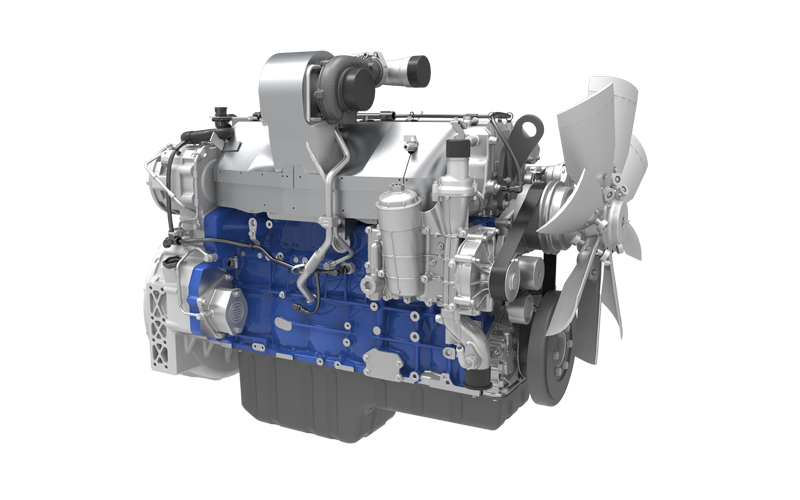

A brand-new product from the high-end platform with a modular family design, enhanced power and competitiveness, and a separate intake and exhaust structure for strong adaptability; Power output ranges from 161 to 221 kW, suitable for 2700–4500 L sprayers.
产品优势
Low fuel consumption: Separate intake and exhaust design enhances volumetric efficiency and optimizes combustion, leading to improved economy and low fuel consumption rates.
Lightweight design: Modular design with integrated fuel filter and integrated engine cooling/oil cooling module; family-style design ensures smoother and more aesthetic fuel and electrical routing.
Excellent NVH performance: Rear gear train and low gear ratio train further reduce vibration and noise, achieving levels 2–3 dB(A) lower than competing products.
Powerful performance: Torque increased to 1318 N·m.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
WP8G220E304 |
162/1900 |
1100/1400 |
7.8 |
EU Stage IIIA, Brazil MAR-1 |
High-pressure common rail + Turbocharged and intercooled |
Sprayer |
4 |
|
WP8G260E303 |
192/2000 |
1220/1400 |
7.8 |
EU Stage IIIA, Brazil MAR-1 |
High-pressure common rail + Turbocharged and intercooled |
Sprayer |
4 |
|
WP8G290E302 |
213/2100 |
1260/1400-1600 |
7.8 |
EU Stage IIIA, Brazil MAR-1 |
High-pressure common rail + Turbocharged and intercooled |
Sprayer |
4 |
|
WP8G300E302 |
221/2100 |
1318/1400-1600 |
7.8 |
EU Stage IIIA, Brazil MAR-1 |
High-pressure common rail + Turbocharged and intercooled |
Sprayer |
4 |
