WEICHAI

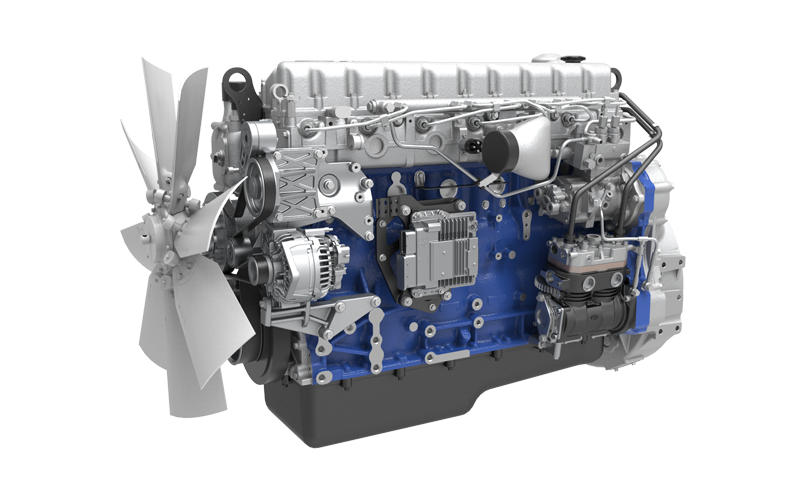

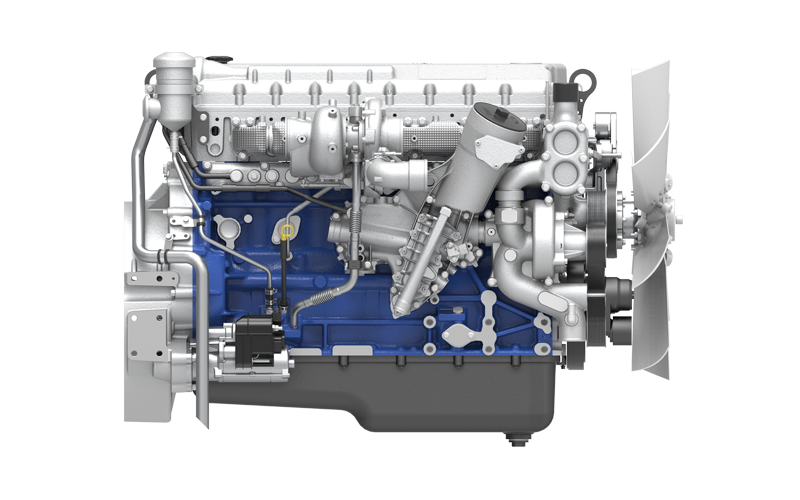

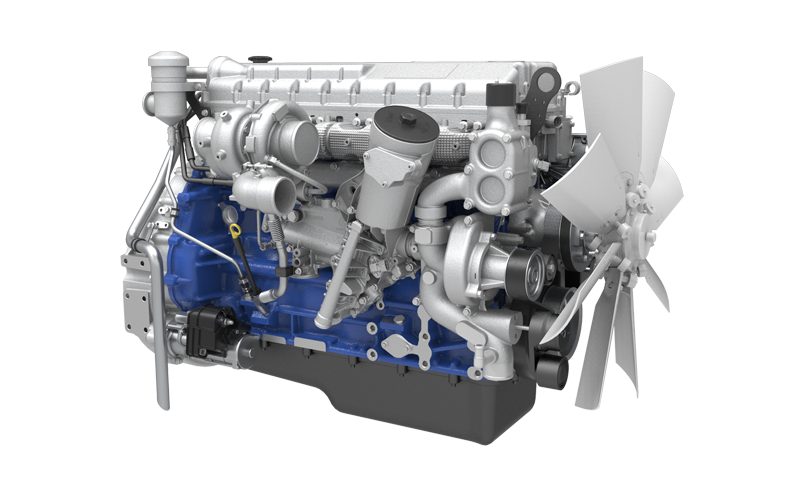

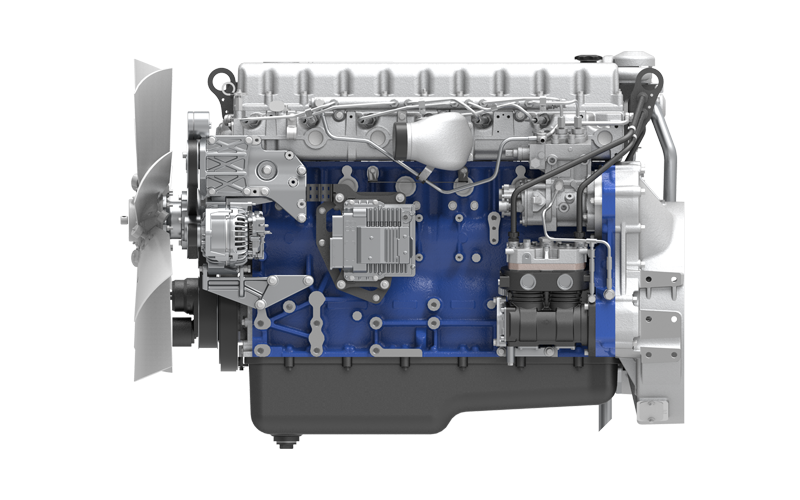

WP10H Engine for Harvester

Suitable for wheat harvesters and corn harvesters.

238-302/324-410

功率范围 kW/Ps

1800/1200-1400

最大扭矩/转速 N·m / r/min

产品概述

The Weichai WP10H engine features superior power, extreme reliability, and excellent fuel economy, with a power range of 324–410 PS, compliant with non-road EU Stage IIIA emission standards.

产品优势

High Power and Sufficient Torque: Large torque at low engine speeds, with a maximum torque of 1480 N·m at 1400 rpm and specific torque reaching 155.8 N·m/L.

Ultimate Fuel Efficiency and Economy: Minimum fuel consumption <190 g/kW·h, which is 5%–8% lower than that of competitors; Hourly fuel consumption is over 10% lower than models with equivalent power, providing significant annual fuel cost savings.

Reliable, Durable, and High Operational Availability: Reinforced engine block, cylinder head, and crankshaft, with a B10 lifespan of 30,000 hours. Global supply chain and Weichai's proprietary casting ensure high product consistency. Capable of operating at altitudes up to 4700 meters without power loss; Strong adaptability in cold regions.

Comfortable Operation and Excellent NVH: Rear-mounted gear train, drum-shaped engine block, and reinforced webs result in vibration and noise levels 2–3 dB(A) lower than competing products. Electronic multi-injection control ensures smoother operation and greater operator comfort.

产品规格

功率范围 kW/Ps
238-302/324-410
最大扭矩转速 N·m / r/min
1800/1200-1400
排放标准
Stage IIIA
燃料
Diesel
发动机型式
In-line
气缸数
6
气门数
4
排量 L
9.5
进气方式
Turbocharged and intercooled
发动机尺寸(长X宽X高) mm
1406×938×1101
G重量 kg
815

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Model

Rated power/speed (kW/rpm)

Peak torque/speed (N·m/rpm)

Displacement (L)

Emission standard

Technical route

Target applications

Number of valves

WP10HG324E302

238/2100

1500/1200-1400

9.5

Stage IIIA

High-pressure common rail + Turbocharged and intercooled

Harvester

4

WP10HG336E302

247/2100

1500/1200-1400

9.5

Stage IIIA

High-pressure common rail + Turbocharged and intercooled

Harvester

4

WP10HG360E302

265/2100

1620/1200-1400

9.5

Stage IIIA

High-pressure common rail + Turbocharged and intercooled

Harvester

4

WP10HG400E302

294/2100

1780/1200-1400

9.5

Stage IIIA

High-pressure common rail + Turbocharged and intercooled

Harvester

4

WP10HG410E302

302/2100

1800/1200-1400

9.5

Stage IIIA

High-pressure common rail + Turbocharged and intercooled

Harvester

4
