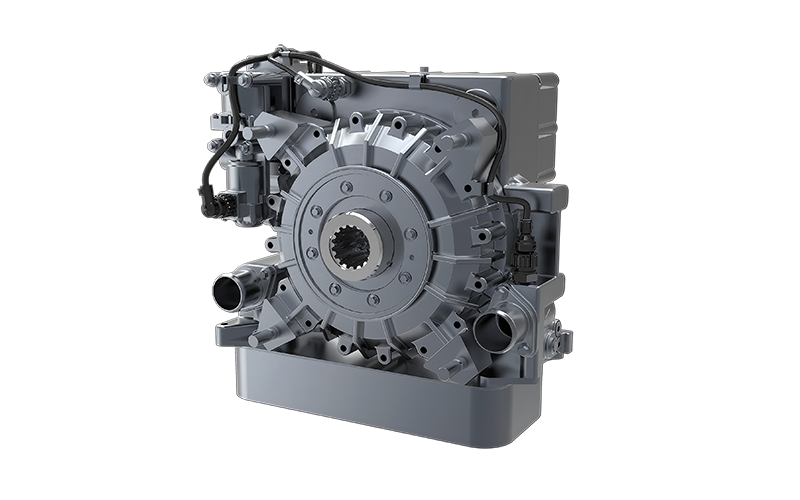

产品概述
Multi-mode dynamic control strategy for enhanced control system intelligence; Fuzzy control algorithm for constant speed, providing smoother downhill cruise control.
产品优势
High ground clearance, ensuring excellent vehicle mobility.
Compact structure with small overall dimensions for easy vehicle integration.
Integrated and lightweight design.
Reserved PTO space on the transmission for compatibility with medium and light-duty dump trucks; Multi-mode dynamic control strategy for enhanced control system intelligence. Fuzzy control algorithm for constant speed, providing smoother downhill cruise control.
产品规格
|
Maximum Braking Torque (Nm) |
2400 |
|
Drive Shaft Speed at Maximum Braking Torque (rpm) |
1100 |
|
Maximum Input Speed of Drive Shaft (rpm) |
2800 |
|
Weight (kg) |
58 |
|
Filling Oil Volume (L) |
5.5 |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
