产品概述

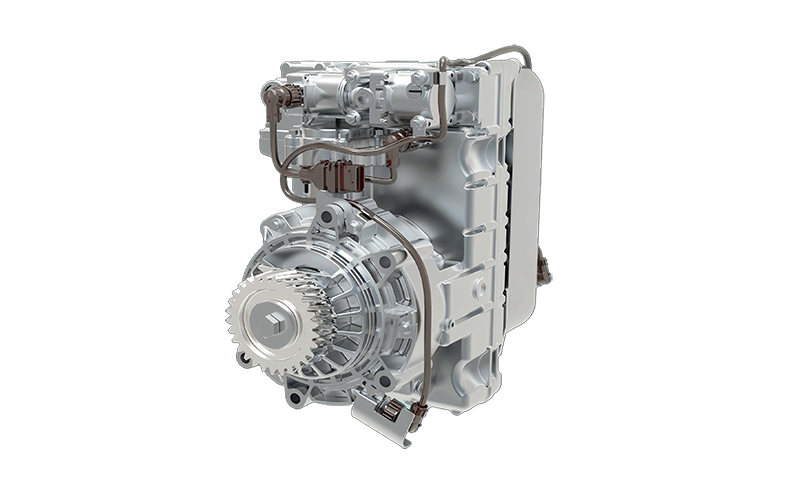

High braking torque at low rpm for superior low-speed braking performance; Spiral pump forced lubrication ensures adequate lubrication during idling and high reliability.
产品优势
Lightweight design with a compact structure weighing only 53 kg.
High braking torque at low rpm for superior low-speed braking performance.
Spiral pump forced lubrication ensures adequate lubrication during idling and high reliability.
Detachable stator and rotor minimize idling losses.
Automated production processes ensure high efficiency and consistent product quality.
产品规格
|
Maximum Braking Torque (Nm) |
4000 |
|
Drive Shaft Speed at Maximum Braking Torque (rpm) |
1100 |
|
Maximum Input Speed of Drive Shaft (rpm) |
2500 |
|
Weight (kg) |
53 |
|
Filling Oil Volume (L) |
6.5 |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
