产品概述

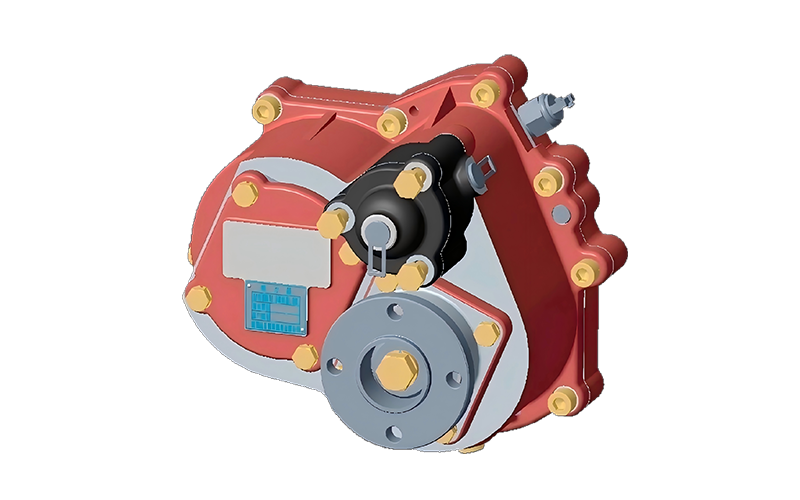

Mounted on the rear extended countershaft of Fast dual-countershaft transmissions; This power take-off (PTO) features bidirectional pneumatic control, including an intermediate position cylinder assembly, enabling stationary PTO operation.
产品优势
Mounted on the rear extended countershaft of Fast dual-countershaft transmissions.
This power take-off (PTO) features bidirectional pneumatic control, including an intermediate position cylinder assembly, enabling stationary PTO operation.
The total output speed ratio varies according to the transmission gear.
The two-shaft output flange rotates in the same direction as the engine.
Units mounted at the upper left position require independent oil filling, whereas those at the lower right do not.
产品规格
|
Mounting position |
Lower right of the rear end |
|
Rated output torque (N·m) |
700 |
|
Rated input speed (rpm) |
2600 |
|
Weight (kg) |
Approx. 29 |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
