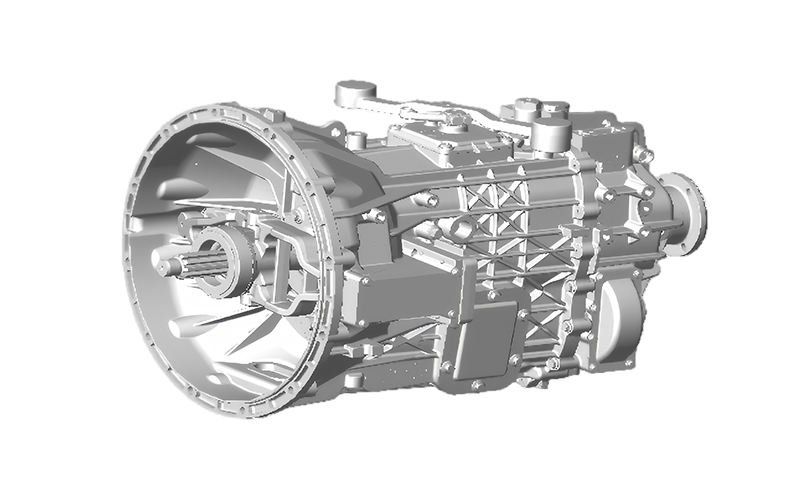

产品概述
Leak-proof housing design; Fine-ground helical gears for low noise, heavy-duty tapered roller bearings for extended service life; Multi-rail shifting mechanism with low shift effort, minimal secondary impact, and smooth gear engagement.
产品优势
Leak-proof housing design.
Fine-ground helical gears for low noise, heavy-duty tapered roller bearings for extended service life.
Multi-rail shifting mechanism with low shift effort, minimal secondary impact, and smooth gear engagement.
Capable of withstanding frequent shifting and high-intensity torsional vibrations, featuring carbon fiber synchronizers for high reliability.
产品规格
|
Input torque (N·m) |
600 |
|
Maximum speed (rpm) |
3600 |
|
Overall length (mm) |
693.0 |
|
Weight ※: Iron / Aluminum (kg) |
98 (Aluminum) |
|
Oil capacity (L), tolerance ±4% |
5.3 |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
