产品概述

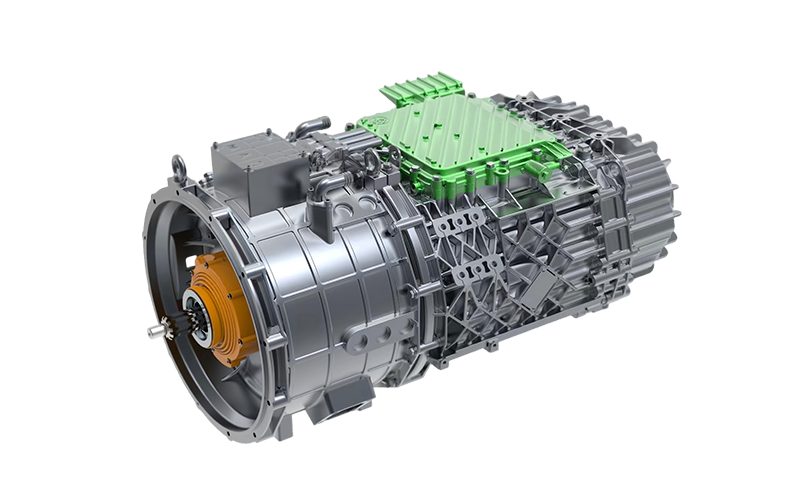

Highly integrated electromechanical system featuring a new generation of gear shifting and clutch actuators, incorporating a robust hybrid powertrain module.
产品优势
Highly integrated electromechanical system featuring a new generation of gear shifting and clutch actuators, incorporating a robust hybrid powertrain module.
Supports multiple hybrid functions: mode selection, power-up/down, energy management, engine start-stop, driving/parking charging, motor resistance, and fault diagnosis.
Proprietary advanced energy management strategy improves overall fuel economy across various operating conditions and reduces emissions.
Hairpin permanent magnet synchronous motor with high efficiency and high power density.
产品规格
|
Maximum input torque (N·m) |
2800 |
|
Gear ratio range |
1.000-16.650 |
|
Weight (kg) |
477 |
|
Oil capacity (L) |
15 |
|
Max. motor speed (rpm) |
2500 |
|
Motor Rated/Peak Power (kW) |
110/200 |
|
Motor Rated/Peak Torque (N·m) |
955/2100 |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
