产品概述

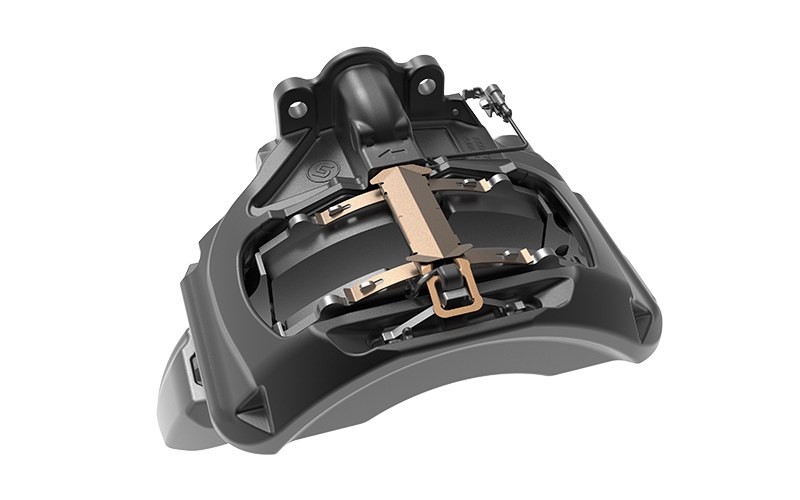

Newly developed next-generation twin-push Air Disc Brake (ADB) series; This disc brake is compatible with commercial vehicles featuring 22.5-inch wheel rims, characterized by high reliability, high braking efficiency, and lightweight design.
产品优势
Lightweight integrated caliper.
High-leverage ratio efficient braking structure.
Modular self-adjusting mechanism.
Tool-free maintenance for friction pads.
Boltless removable friction pad retention device.
产品规格
|
Maximum braking torque (N·m) |
25000 |
|
Compatible wheel rim diameter (inches) |
22.5 |
|
Weight (kg) |
36 |
|
Bracket mounting interface |
Full series with 4 and 6 holes |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
