WEICHAI

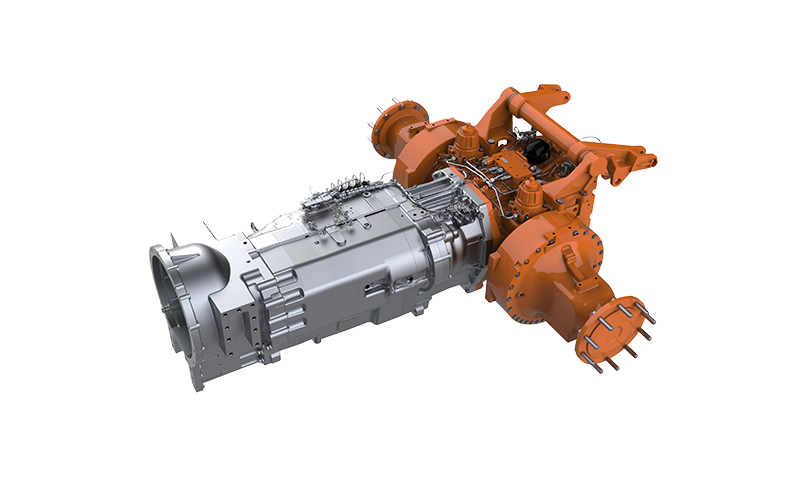

CVTFV3A110

This product is suitable for 240 PS wheeled tractors

1100

最大输入扭矩 Nm

14

整车最大重量 T

产品概述

Continuously variable gear ratio, superior gradeability, and high transmission efficiency; Simple operation, 30% improvement in work efficiency, and 10% reduction in fuel consumption.

产品优势

Continuously variable gear ratio, speed range of -30 to +/-50 kph, superior gradeability, and high transmission efficiency.

Simple operation, 30% improvement in work efficiency, and 10% reduction in fuel consumption.

Highly adaptive electronic control system, including on-demand 4WD, speed setting, engine speed control, cruise control, and adaptive shift strategy.

Active safety controls including hill-hold assist, auxiliary braking, and traction assist.

Three-speed PTO unit independent of vehicle speed.

Seamless switching between manual, automatic, and PTO modes.

Smooth power shuttle.

High reliability, stability, and comfort.

产品规格

Rated input power (kW)

180

Maximum input torque (N·m)

1100

Rated input speed (rpm)

2200

Transmission oil capacity (L)

70

Wheel-end oil capacity (L)

13L+13L

Weight (t)

2.4

Max. vehicle weight (t)

14

Max. rear axle lifting capacity (t)

10

备注:产品参数及图片仅供参考;如有变动,不另行通知。
