产品概述
Utilizing wear-resistant special ceramic materials, it offers high-temperature resistance and stable performance, ensuring a longer service life under severe operating conditions, thereby reducing total cost of ownership and maximizing operational efficiency for users.
产品优势
Utilizing wear-resistant special ceramic materials, it offers high-temperature resistance, stable performance, and a longer service life under severe operating conditions.
Long-life clutch specifically designed for vehicles operating in severe conditions.
The optimal solution for reducing total cost of ownership and achieving high operational efficiency for users under severe conditions.

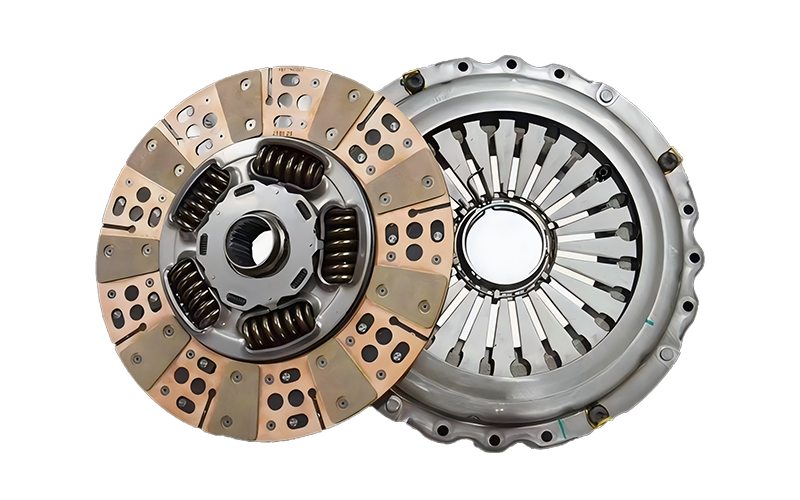

The ceramic friction material driven disc with wave springs effectively improves clutch engagement impact and vehicle start-up smoothness, optimizing acceleration performance.
Proprietary heavy-duty pressure plate design to enhance clutch durability in severe operating conditions.
产品规格
|
Clutch type |
Φ430 mm, single-plate, diaphragm spring clutch |
|
Torque capacity (N·m) |
3200 |
|
Release type |
Pull-type |
|
Damper type |
Low-stiffness 5-spring main damper with pre-damper |
备注:产品参数及图片仅供参考;如有变动,不另行通知。
