6J76T

Suitable for buses, equipment transport vehicles, etc.

6J76TB

型号

760

输入扭矩 Nm

产品手册下载服务图标

服务支持

立即询价产品咨询

/Products & Businesses/Powertrain System/Components/Transmission/Bus Transmission

概述优势规格型谱表

产品概述

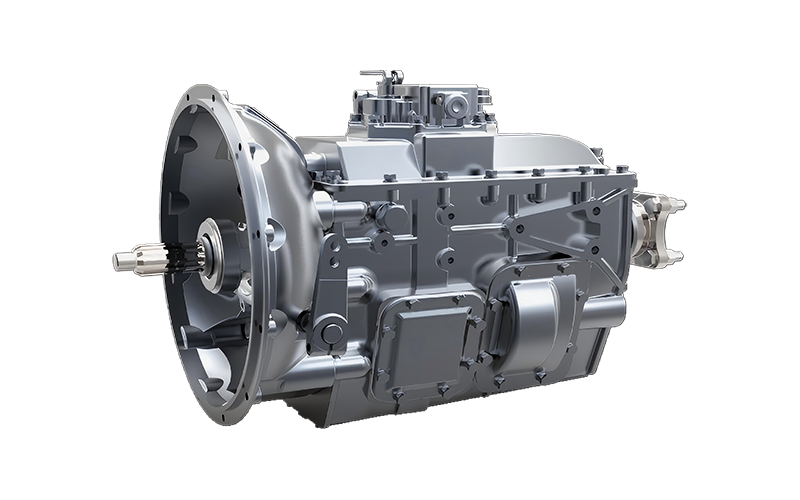

Single countershaft with helical gear transmission for high load capacity, low noise, and extended service life; Optimized gear ratio configuration and versatile control options, including single-lever, dual-lever, and direct control for user convenience.

产品优势

Single countershaft with helical gear transmission for high load capacity, low noise, and extended service life; High-speed gears feature a "fine-pitch high-tooth" design for smooth engagement.

All forward gears equipped with locking-ring inertia synchronizers, providing high synchronization capacity for flexible and effortless shifting.

Compatible with both front-engine and rear-engine configurations.

Optimized gear ratio configuration and versatile control options, including single-lever, dual-lever, and direct control for user convenience.

产品规格

Model	6J76TB
Input torque (N·m)	760
Maximum speed (rpm)	2600
Overall length (mm)	714
1st Gear	5.629
2nd Gear	3.240
3rd Gear	1.980
4th Gear	1.337
5th Gear	1.000
6th Gear	0.770
Reverse Gear	5.542
Oil capacity (L), tolerance ±4%	7.5

备注：产品参数及图片仅供参考；如有变动，不另行通知。
