产品概述

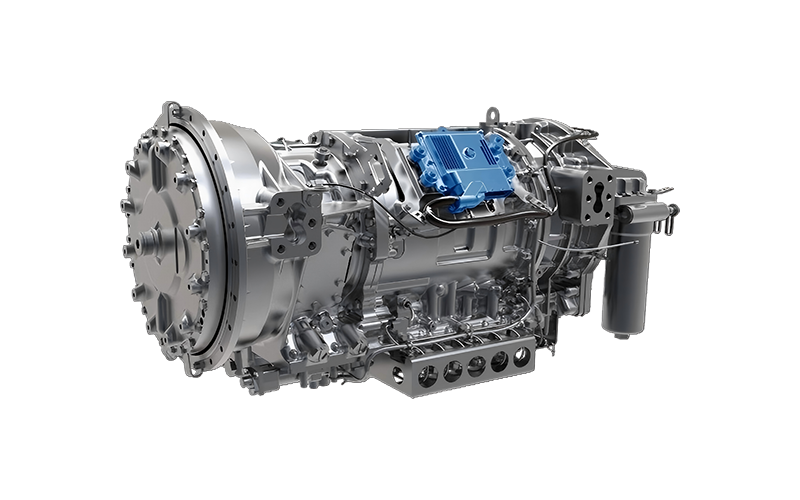

Monolithic cast high-efficiency torque converter to enhance fuel efficiency under torque multiplication conditions; Optimized planetary gear train design for faster shift response
产品优势
High first-gear ratio for specialized operating conditions.
Rational gear ratio steps enabling fully automatic shifting across all gears.
Advanced shift control logic, customizable to user requirements to meet fuel economy needs.
Unique rear power take-off (PTO) interface for convenient vehicle integration.
产品规格
|
Rated Input Power (kW) |
522 |
|
Maximum Input Torque (Nm) |
2800 |
|
Maximum Input Speed (rpm) |
2500 |
|
Forward Gears |
7 |
|
Gear Ratio Range |
0.608-6.337, R-7.686 |
|
Length (mm) |
1120 |
|
Transmission Weight (kg) |
573 |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
