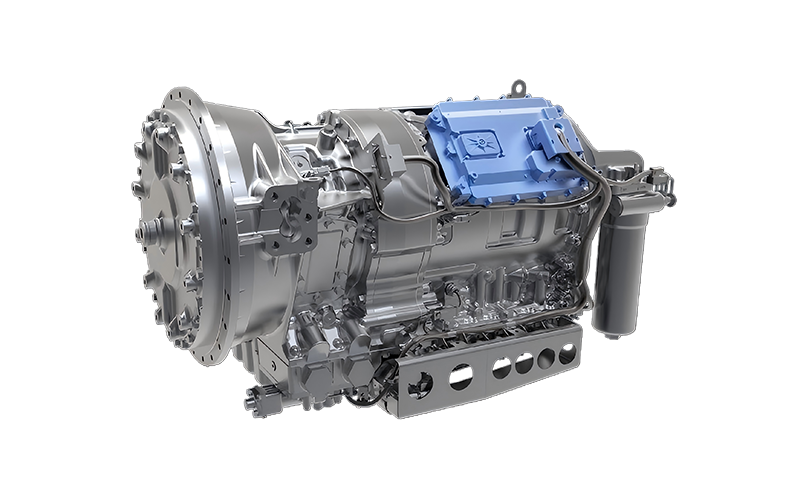

产品概述
High-efficiency torque converter with lock-up clutch and integrated torsional damper; Optional integrated input-side hydraulic retarder and PTO interface for comprehensive functionality
产品优势
Torque converter with lock-up clutch and integral torsion damper for high efficiency.
Optional integrated input hydrodynamic retarder and PTO interface are available for full functionality.
The controller is mounted on the transmission, enabling simplified vehicle installation, reduced wiring harness complexity, and high reliability.
Unique rear power take-off (PTO) interface design saves chassis space and facilitates vehicle integration.
External oil filter for easy maintenance.
External solenoid valve for convenient service.
产品规格
|
Rated Input Power (kW) |
466 |
|
Maximum Input Torque (Nm) |
2576 |
|
Maximum Input Speed (rpm) |
2500 |
|
Forward Gears |
6 |
|
Gear Ratio Range |
0.608-4.4, R-3.969 |
|
Length (mm) |
898 |
|
Transmission Weight (kg) |
411 |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
