产品概述

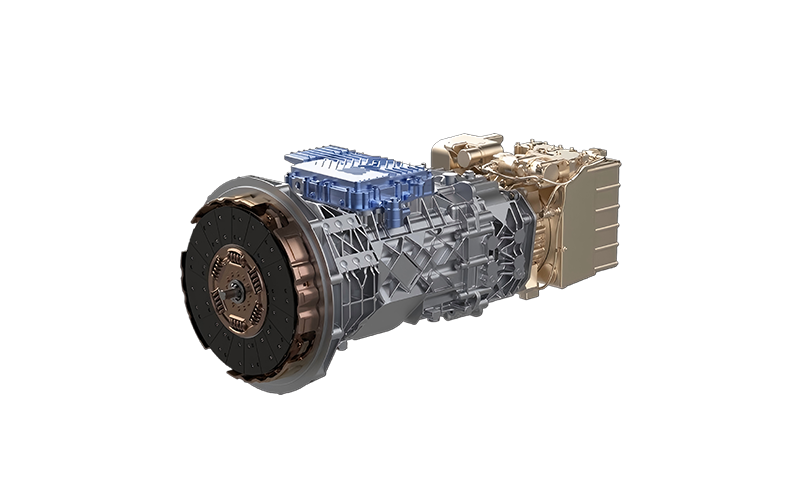

Dual countershaft structure for main and auxiliary sections with ground helical gears for improved fuel efficiency; Highly integrated electromechanical system for enhanced reliability
产品优势
Dual countershaft structure for main and auxiliary sections with ground helical gears for improved fuel efficiency.
Highly integrated electromechanical system for enhanced reliability.
Patented pneumatic control circuit enables precise clutch control and superior starting performance.
Dual-valve design for the countershaft brake ensures smoother shifting.
Intelligently identifies driving conditions, provides flexible shift strategy control, offers diverse driving modes, and features a high degree of intelligence.
Supports diverse application scenarios including predictive driving, hybrid power, and autonomous driving.
产品规格
|
Input Torque (Nm) |
1400 |
|
Maximum Rotational Speed (rpm) |
2600 |
|
Gear Ratio Range |
0.733-12.015 |
|
Overall Length(mm) |
841/1010(with retarder) |
|
Total Weight (kg) |
183/253(with retarder) |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
