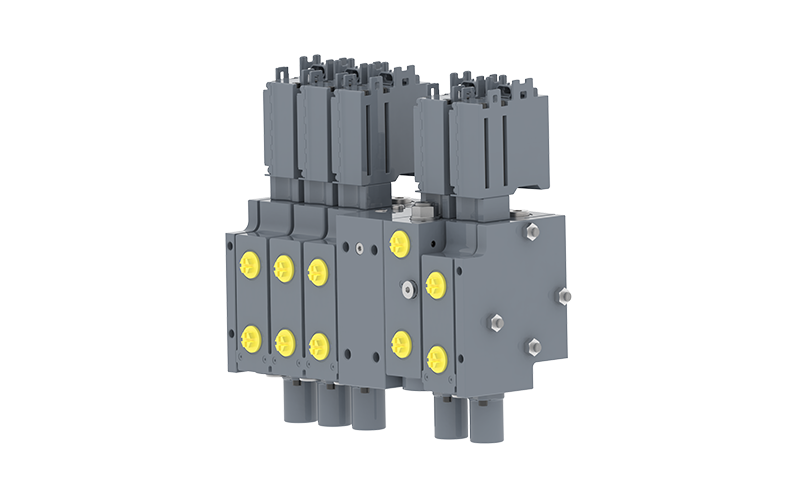

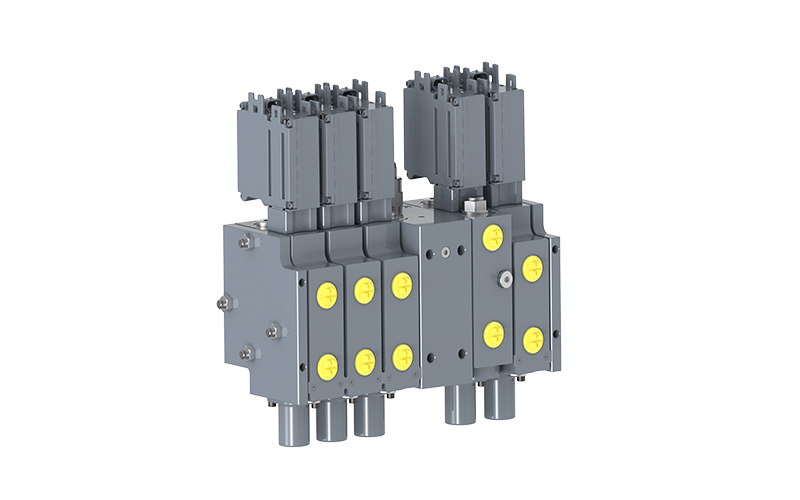

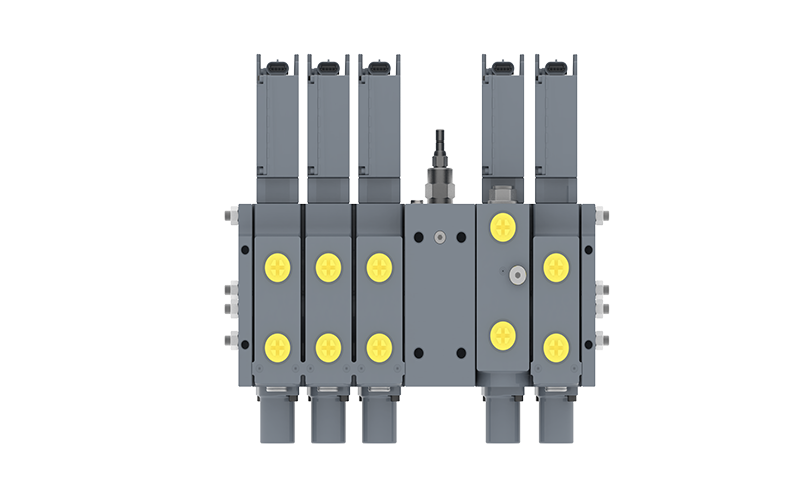

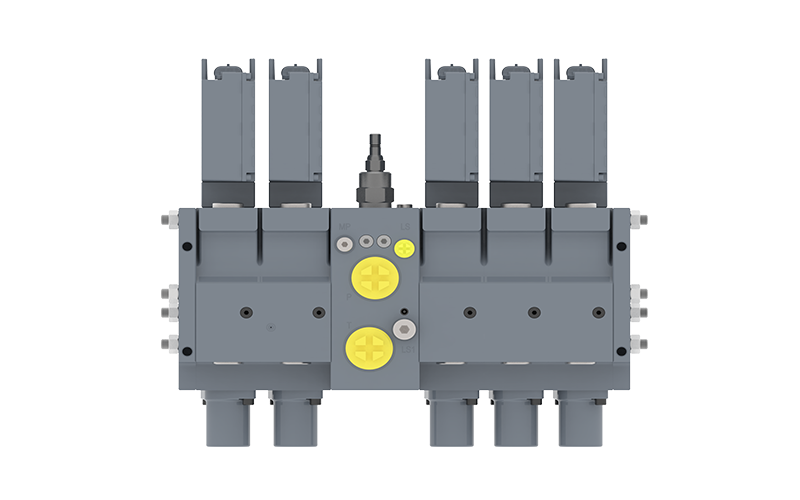

TCV Series Tractor Control Valve

Modular design with zero leakage under load-holding conditions.

Adapted for high-horsepower tractors, etc.

120

最大流量 L/min

额定流量 L/min

240

额定压力 bar

产品手册下载服务图标

服务支持

立即询价产品咨询

/Products & Businesses/Powertrain System/Components/Hydraulics/Valve

概述优势规格型谱表

产品概述

The TCV control valve is an intelligent control valve designed for high-horsepower tractors, featuring a sectional modular design that accommodates various user configuration requirements; Driven by a stepper motor with integrated electronics, controlled via CAN bus signals, and equipped with built-in fault diagnosis and environmental monitoring functions; Independent of pilot pressure, ensuring immunity to external factors such as pressure and temperature fluctuations, viscosity changes, or contamination; IP6K9K protection rating to meet the operational requirements of harsh external

产品优势

High control precision and rapid response.

High product reliability and contamination resistance.

Zero leakage under load-holding conditions.

Modular design.

产品规格

Item	80	120
Specification	80	120
Max. flow (L/min)	80	120
Rated pressure (bar)	175	240
Peak pressure (bar)	200	280
Number of sections	5~7	6~8
Weight (approx.) (drained, without internal oil) (kg)	39 (6 pieces)	65 (6 pieces)

备注：产品参数及图片仅供参考；如有变动，不另行通知。

型谱表

TCV Series Tractor Control Valve

120

240
