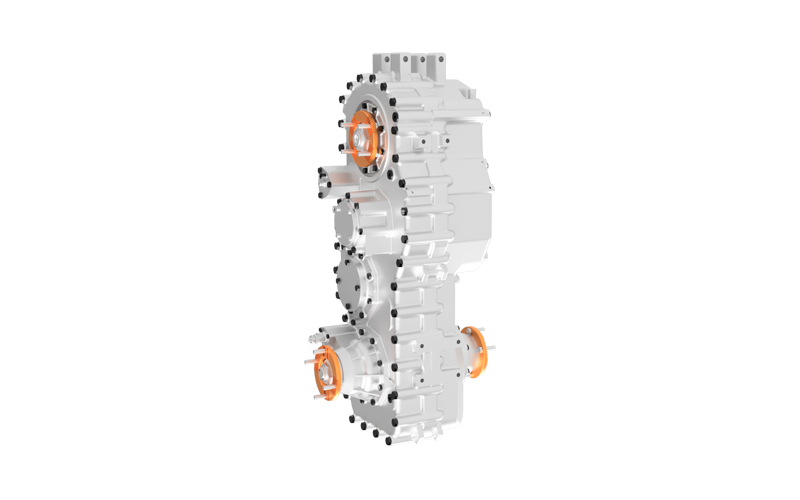

ZQC3750 Transfer Case

All-terrain truck cranes over 100 tons

输入扭矩 N・m

输出扭矩 N・m

产品手册下载服务图标

概述优势规格型谱表

产品概述

Transfer case for truck cranes, with a maximum input torque of 40,000 N·m.

产品优势

Transfer case equipped with a pressure lubrication pump and proportional oil distribution valve.

Transfer case featuring an additional external oil cooler interface.

Compatible with Power Take-Off (PTO) or emergency oil pump.

Special gear tooth profile design for enhanced load-bearing capacity.

产品规格

Maximum input torque (N·m)	40,000 (On-road), 27,250 N·m (Off-road)
Maximum Input Speed (rpm)	2500
Input-to-output Center Distance (mm)	750
Gear ratio	High range (On-road) 0.8/1, Low range (Off-road) 1.81
Shifting Operation	Three-position pneumatic
Front Axle Output Operation	Pneumatic operation with indicator switch
Inter-axle Differential Torque Split Ratio	1:1/1:2/1:3
Pneumatic Operating Pressure (bar)	6.5-10
Lubricating Oil Capacity (L)	8.5
Total Mass (kg)	595 kg (with differential, excluding PTO)
Optional Equipment	Optional N400 PTO or ZF8605 oil pump connection device
Connecting flange	T180(ISO8667)

备注：产品参数及图片仅供参考；如有变动，不另行通知。
