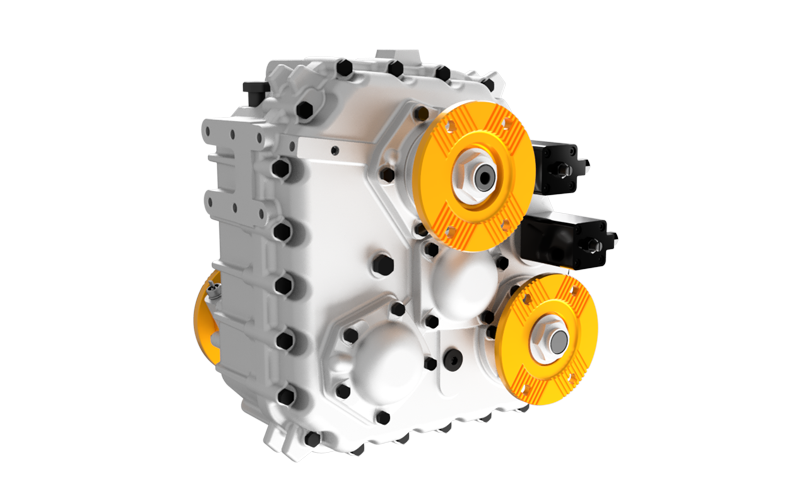

ZNC580 Chassis Transfer Case

Adapted for 140–200 PS timber haulers

输入扭矩 N・m

输出扭矩 N・m

产品手册下载服务图标

概述优势规格型谱表

产品概述

Transfer case for off-road vehicle chassis, with a maximum input torque of 6,000 N·m and a maximum input speed of 2,800 r/min.

产品优势

High-strength gear design for enhanced load-bearing capacity.

Special oil passage design for reliable lubrication.

Offset output shafts for front and rear axles to meet chassis layout requirements.

产品规格

Maximum input torque (N·m)	6000
Maximum Input Speed (rpm)	2800
Input-to-output Center Distance (mm)	233
Gear ratio	High range (On-road) 1, Low range (Off-road) 2.1
Shifting Operation	Three-position pneumatic
Front Axle Output Operation	Pneumatic operation with indicator switch
Inter-axle Differential Torque Split Ratio	/
Pneumatic Operating Pressure (bar)	6.5-10
Lubricating Oil Capacity (L)	5
Total Mass (kg)	180
Optional Equipment	/
Connecting flange	T180/T160/T150, etc.

备注：产品参数及图片仅供参考；如有变动，不另行通知。
