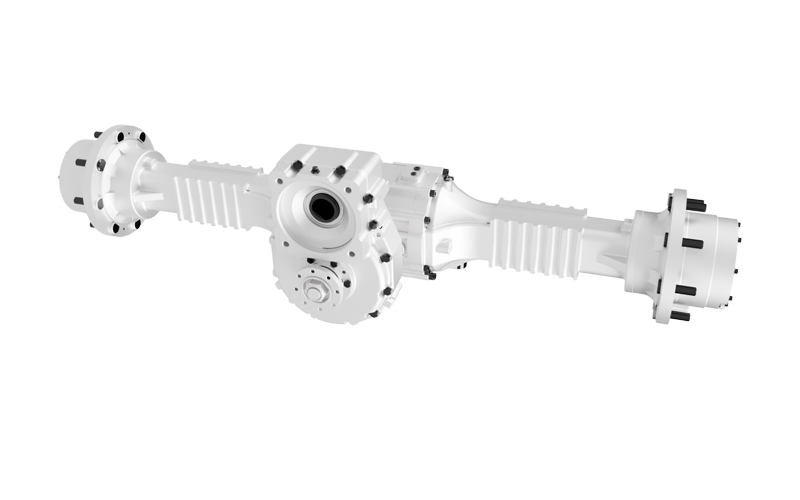

ZWT066LF-001 (Front Axle)

Adapted for loaders with an operating weight of 6.65t and a rated load of 2t

输入扭矩 N・m

输出扭矩 N・m

产品手册下载服务图标

概述优势规格型谱表

产品概述

Wet axle-transmission assembly for loaders.

产品优势

Oscillating front axle suitable for complex road conditions, providing a superior driving experience.

High-strength gear design, with 15% increased strength in planetary gear sets and spiral bevel gear pairs.

Brake piston adopts a Y-ring and support ring structure for high sealing reliability.

Externally mounted parking brake for enhanced ease of maintenance and repair.

产品规格

Rated dynamic load (kN)	66
Maximum static load (kN)	120
Rated input torque (N·m)	1280
Maximum input torque (N·m)	1800
Maximum Input Speed (rpm)	3200
Gear ratio	14
Axle assembly braking torque (N·m)	17000
Efficiency	92%

备注：产品参数及图片仅供参考；如有变动，不另行通知。
