产品概述

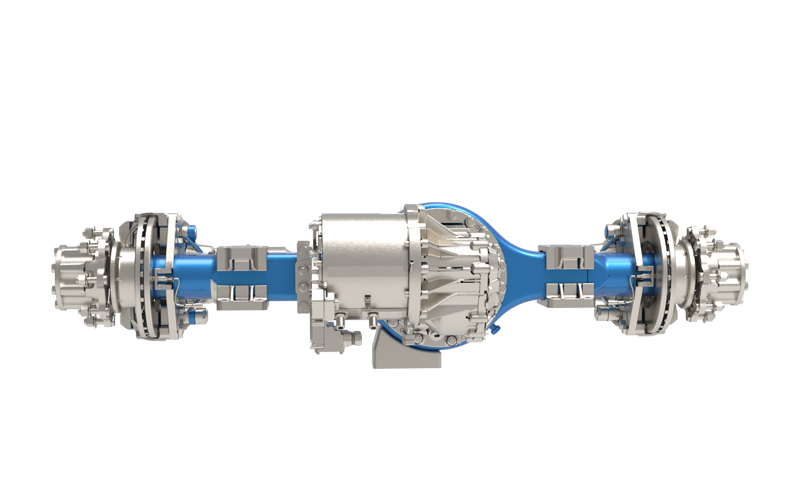

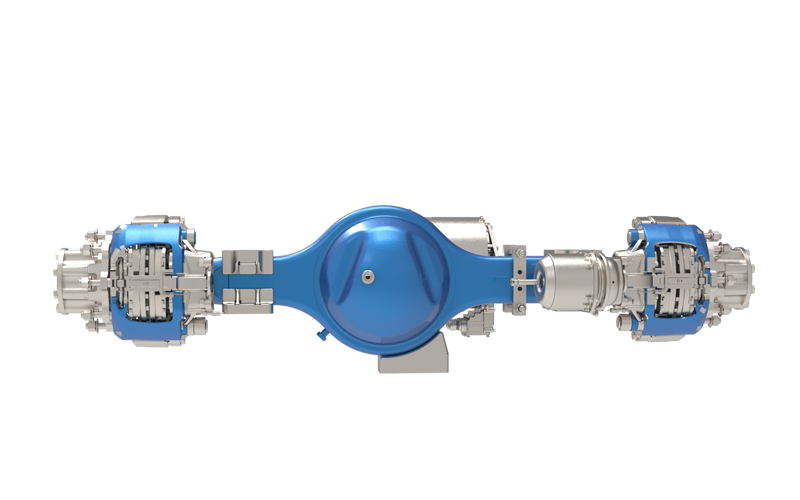

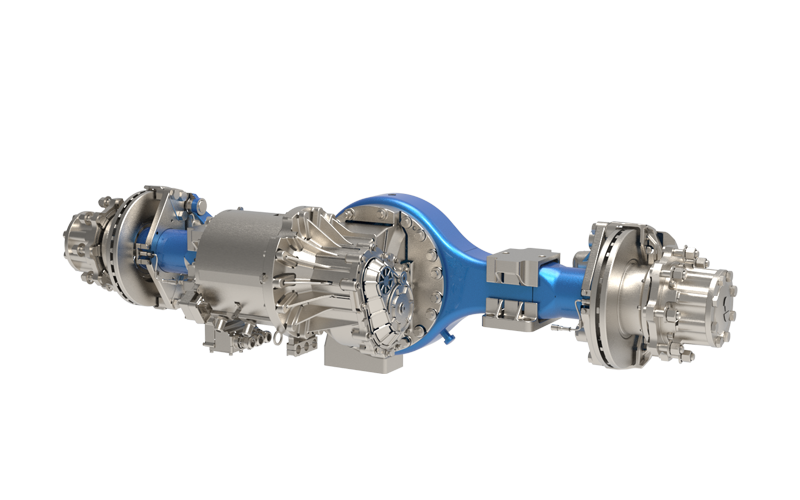

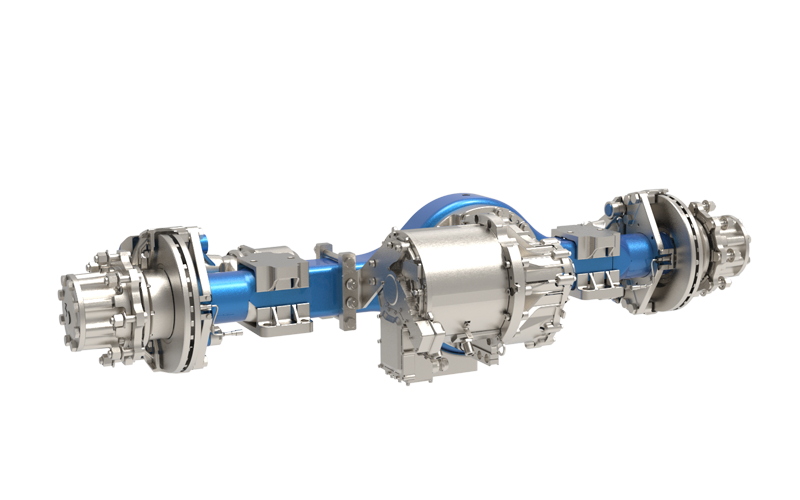

Hande 8t electric drive axle for intercity buses features high performance, high efficiency, and low noise.
产品优势
High performance: The full series adopts high-speed, high-power-density hairpin motors; Meets power requirements for various scenarios; Electric drive axle capable of achieving speeds of 130 km/h for touring coaches.
High efficiency: High-precision gears and an optimized system efficiency MAP improve overall efficiency by over 2%.
Low noise: Comprehensive optimization of gear and axle housing design results in noise levels < 75 dB(A) across the full speed range.
Extended maintenance-free intervals: No initial maintenance required for the main reducer, with long oil-change intervals of 120,000/300,000 km. Wheel-end bearing units are maintenance-free throughout their full lifecycle.
产品规格
|
Rated Load (t) |
8.5 |
|
Output torque (N·m) |
11750, 13550 |
|
Gear ratio |
18.077 |
|
Brake Specifications |
19.5", 22.5" Disc |
|
Rated / Peak power (kW) |
115/220, 135/260 |
|
Rated/Peak Torque (N·m) |
330/650 |
|
Target applications |
8–10m New Energy Intercity Buses |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
