产品概述

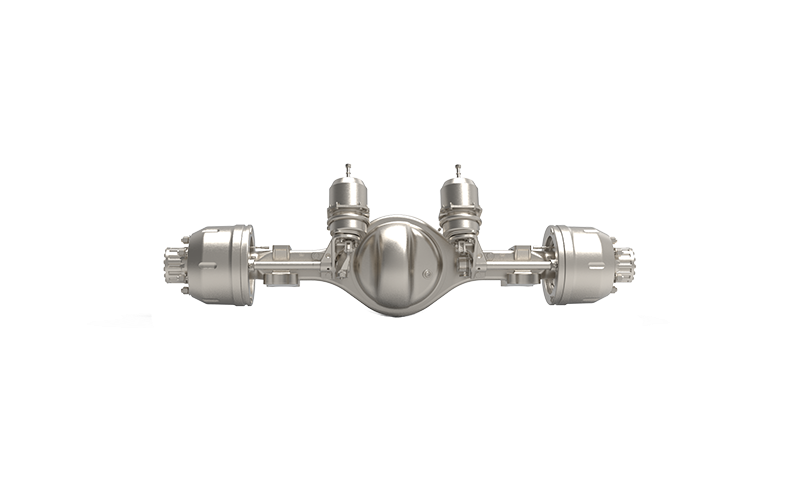

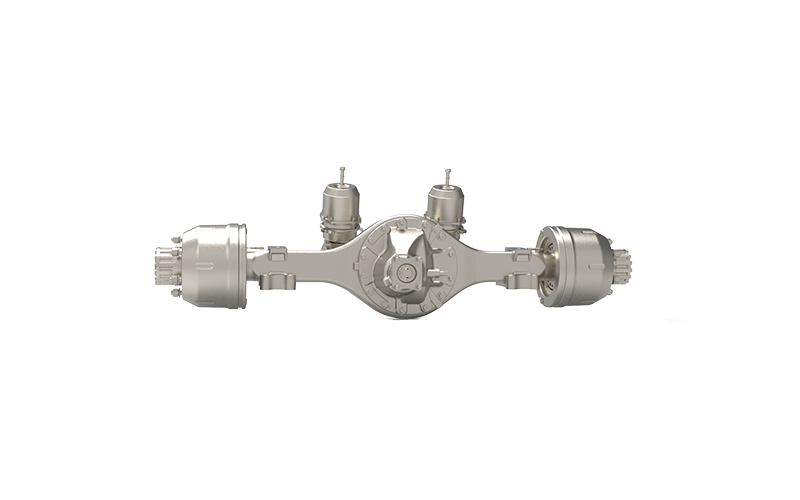

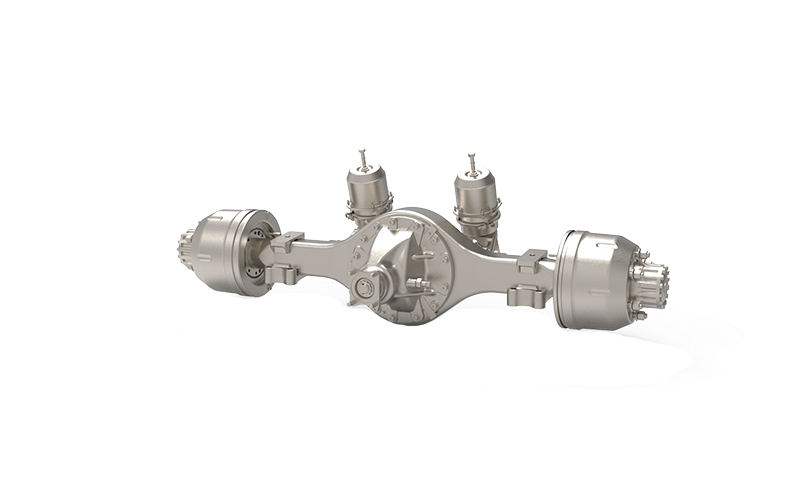

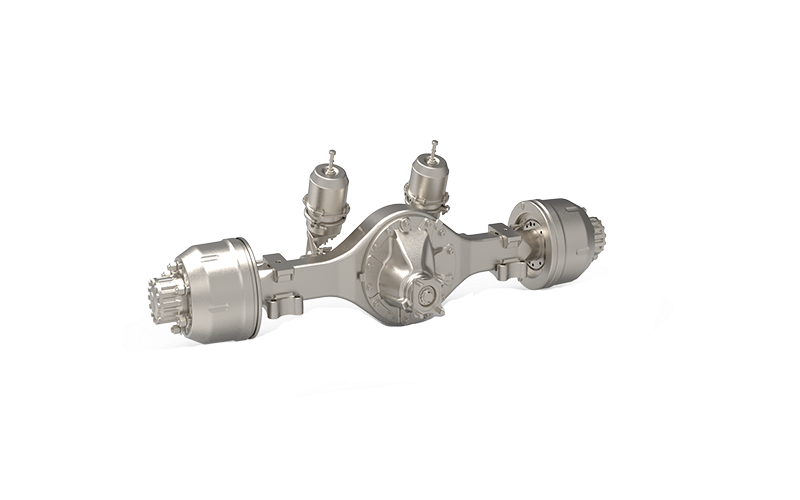

Drive Axle.
产品优势
High reliability: The axle housing is made of customized high-strength alloy steel, increasing yield strength by 38%, with a fatigue life exceeding 1 million cycles.
High efficiency: Features low-friction technology in the main reducer, high-order tooth profile modification, and FF-treated differential shims, improving transmission efficiency by 3%-5%.
Lightweight design: Integrated design with key components made of high-strength lightweight materials, reducing total axle weight by 10–20 kg.
Extended maintenance-free intervals: No initial maintenance required, long oil-change intervals of 120,000/300,000 km for the main reducer, and lifetime maintenance-free wheel ends.
产品规格
|
Rated Load (t) |
7.5t/9 |
|
Rated output torque (N·m) |
18000/20000 |
|
Gear ratio |
3.7~5.286 |
|
Brake Specifications |
320×160 air drum brake, 400×180 air drum brake |
|
Rim Specifications |
8.25R16 |
|
Wheel Bolt Pitch Circle Diameter (mm) |
222.25/275 |
|
Target applications |
12–16t Models for Transport of Fresh Agricultural Products |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
