产品概述

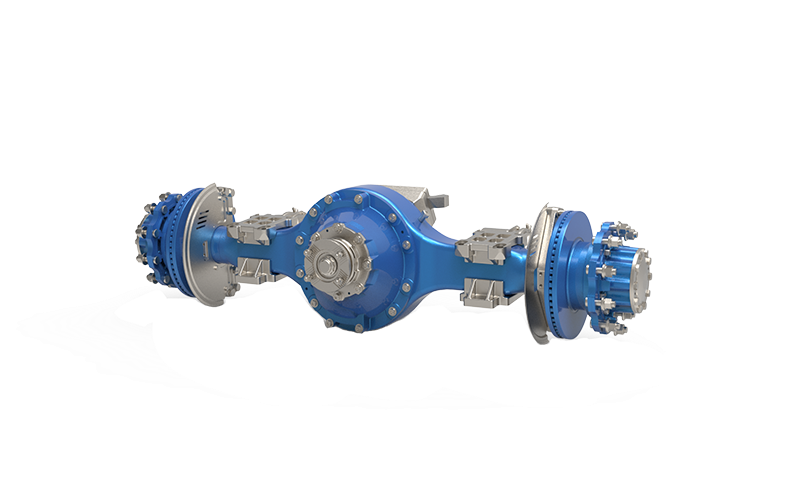

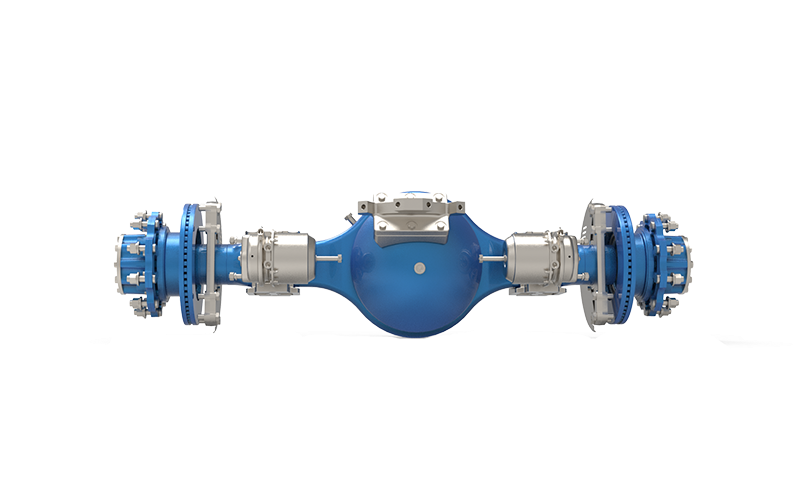

HDZ450 features high reliability, high efficiency, and low noise.
产品优势
High reliability: Key components such as brake discs and gears utilize high-strength materials and specialized gear designs to withstand high-speed electric motor impacts.
High efficiency: High-precision gears and an optimized lubrication circuit design reduce churning losses, improving transmission efficiency by over 3%.
Low noise: Structural modal optimization and micro-geometry tooth profile modification technology reduce noise by 3–5 dB(A).
Extended maintenance-free intervals: No initial maintenance required, long oil-change intervals of 120,000/300,000 km for the main reducer, and lifetime maintenance-free wheel ends.
产品规格
|
Rated Load (t) |
13 |
|
Output torque (N·m) |
35000 |
|
Gear ratio |
2.817~6.143 |
|
Brake Specifications |
22.5" Disc, Φ410×220 Drum |
|
Target applications |
10–12m Urban / Intercity Buses |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
