产品概述

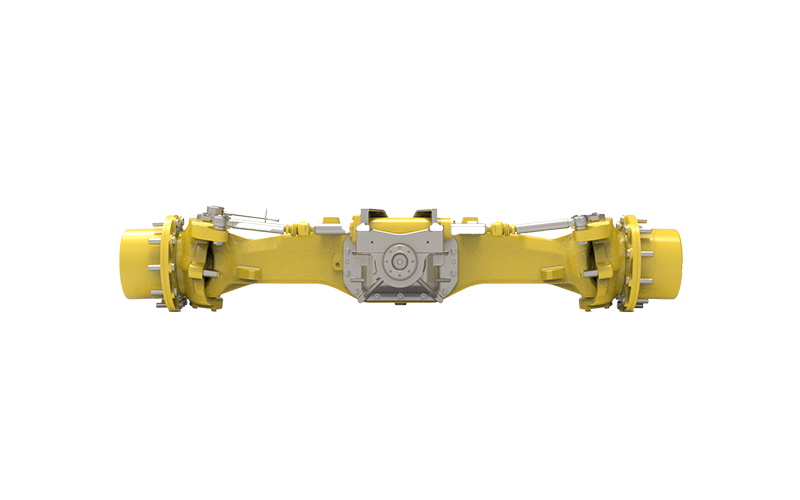

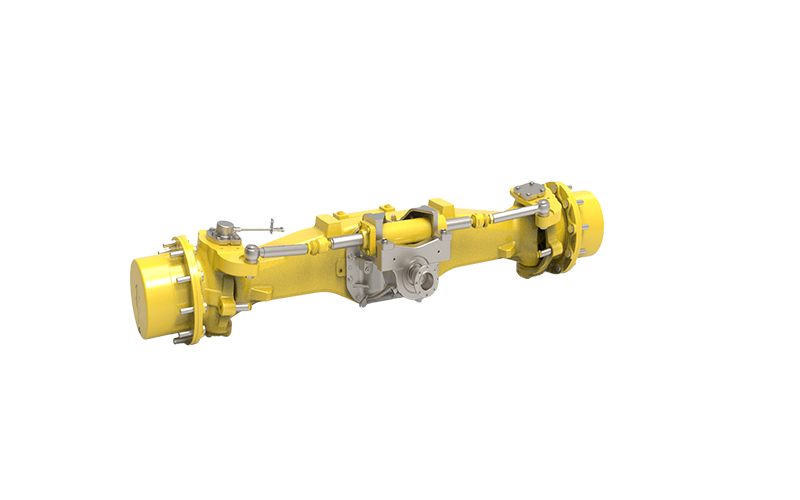

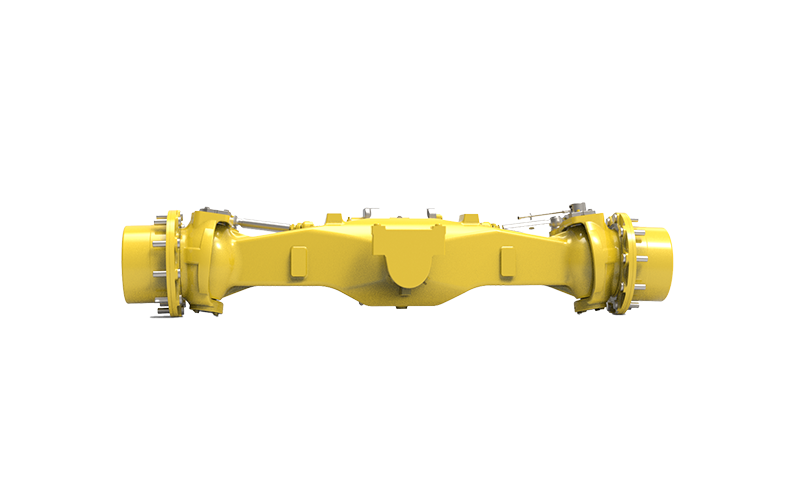

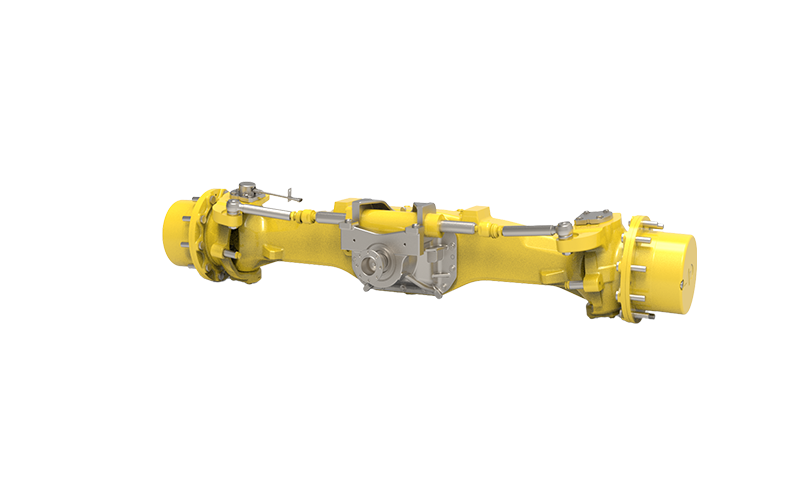

Hande agricultural machinery axles offer leading advantages in reliability, efficiency, and sealing performance, delivering maximum value to customers.
产品优势
High Reliability: Manufactured with high-strength ductile iron, improving load-bearing performance by 10–12%. Features equal-height tooth design for a 10% increase in reliability, and a 4% larger differential sphere diameter, making it ideal for low-speed, high-torque applications.
High Sealing: The main reduction input oil seal and hub oil seal utilize imported cassette seals, while the dual universal joint shaft oil seal employs a high-strength double-lip oil seal.
产品规格
| Rated Dynamic Load (t) | 5.85 |
| Developed Axle Ratios | 17.6 |
| Rated Axle Output Torque (N·m) | 30800 |
| Wheel Bolt Pitch Circle Diameter (mm) | φ335 |
| Wheel Bolt Specification | 20×M22×1.5 |
| Rim Mounting Face Distance (mm) | 1940 |
| Target applications | 260–320 PS agricultural equipment |
| Ratio | 13.2 |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
