产品概述

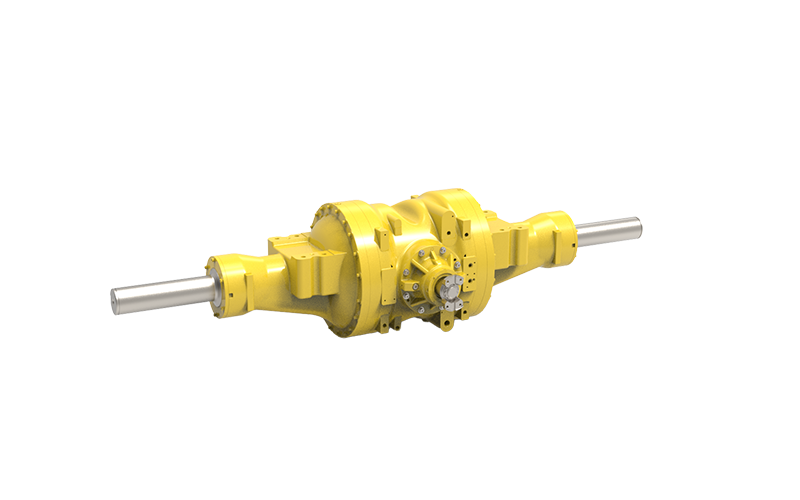

Hande agricultural machinery axles offer leading advantages in reliability, efficiency, and sealing performance, delivering maximum value to customers.
产品优势
High Reliability: Manufactured with high-strength ductile iron, improving load-bearing performance by 10–12%. Features equal-height tooth design for a 10% increase in reliability, and a 4% larger differential sphere diameter, making it ideal for low-speed, high-torque applications.
High Sealing: The main reduction input oil seal and hub oil seal utilize imported cassette seals, while the dual universal joint shaft oil seal employs a high-strength double-lip oil seal.
产品规格
|
Rated Dynamic Load (t) |
13.2 |
|
Total Ratio |
26.502 |
|
Maximum output torque (N·m) |
150000 |
|
Service Braking Torque (N·m) |
At 2 MPa pressure, the axle braking torque is 51,000 N·m |
|
Parking Braking Torque (N·m) |
30000 |
|
Target applications |
400 PS agricultural equipment |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
