产品概述

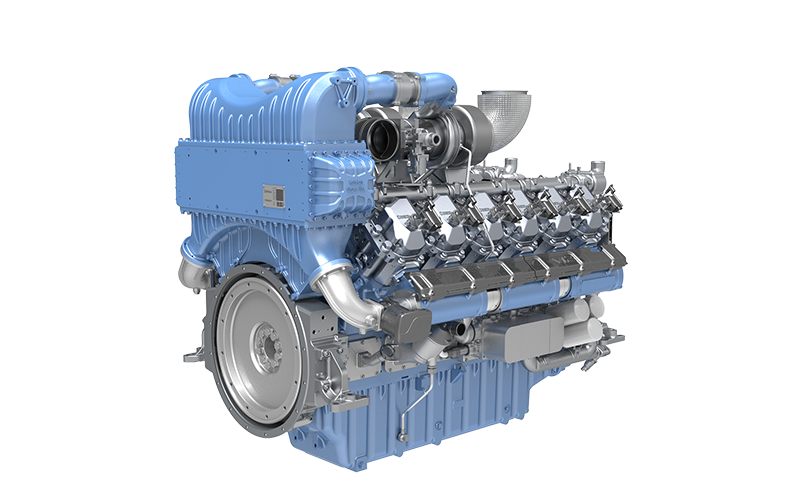

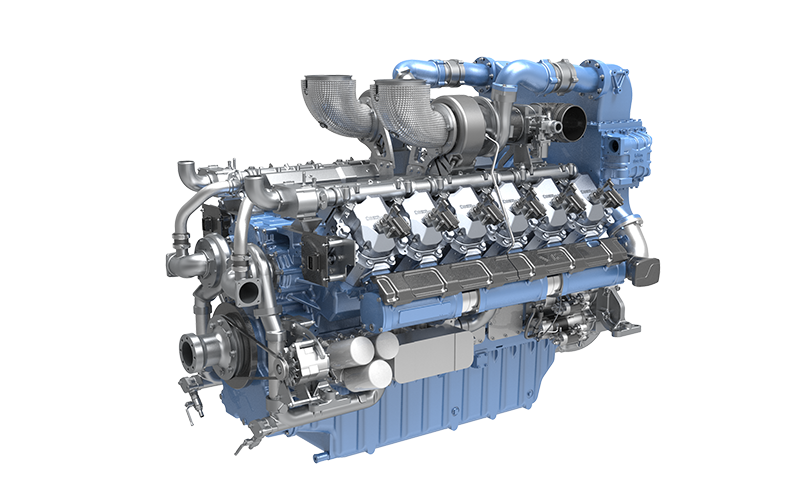

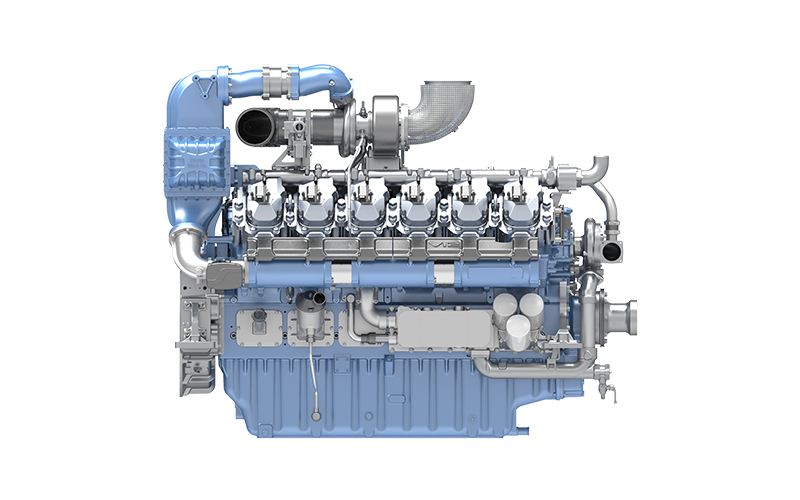

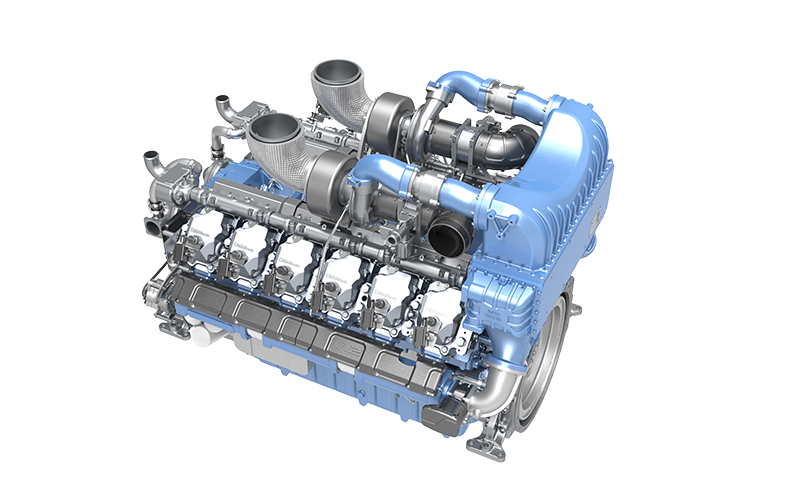

The 12M33 gas engine is a new-generation product of the high-end M33 engine platform; Power output ranges from 880 to 960 kWm, suitable for 800–850 kWe generator sets.
产品优势
High reliability: Intelligent fault diagnosis, misfire monitoring, and knock protection ensure more reliable engine operation and enable unmanned monitoring.
Superior economy: Advanced ignition system and optimized combustion chamber design ensure more reliable ignition; Specialized valve seals and piston rings are used to reduce lube oil consumption, achieving a specific oil consumption rate of less than 0.2 g/(kW·h).
Strong environmental adaptability: The engine can operate on various combustible gases such as natural gas, oilfield associated gas, and biogas.
产品规格
备注:产品参数及图片仅供参考;如有变动,不另行通知。
型谱表
|
Engine Model |
Displacement (L) |
Valves per Cylinder |
Prime Power/Speed (kWm/rpm) |
Standby Power/Speed (kWm/rpm) |
Recommended Prime Power of the genset (kWe) |
Recommended Standby Power of the genset (kWe) |
Fuel |
|
12M33G10B0/5 |
39.2 |
4 |
880/1500 |
/ |
800 |
/ |
Biogas |
|
12M33G10N0/5 |
39.2 |
4 |
900/1500 |
/ |
800 |
/ |
Natural gas |
|
12M33G14B0/6 |
39.2 |
4 |
960/1800 |
/ |
850 |
/ |
Biogas |
|
12M33G14N0/6 |
39.2 |
4 |
960/1800 |
/ |
850 |
/ |
Natural gas |
