Compact design, lightweight, high reliability, excellent fuel economy, ease of maintenance, and superior environmental adaptability.
Suitable for fracturing units, cementing units, low-pressure water pumps, hydraulic pump stations, and mud pumps
功率范围 kW/Ps
最大扭矩/转速 N·m / r/min
产品概述

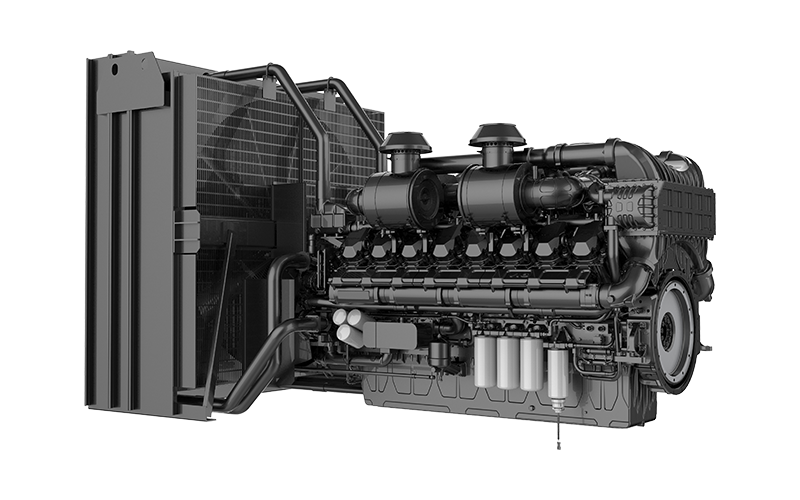

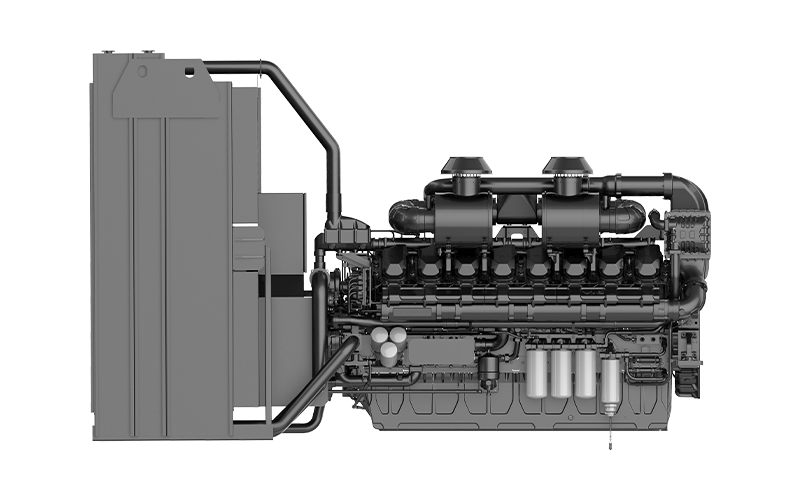

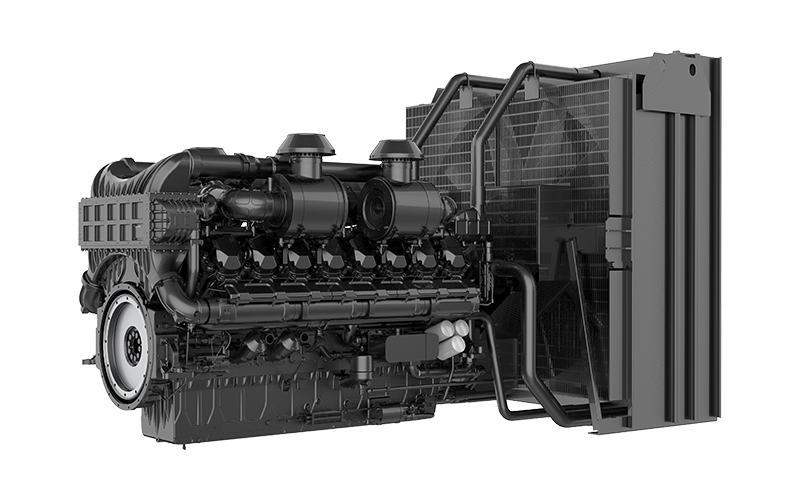

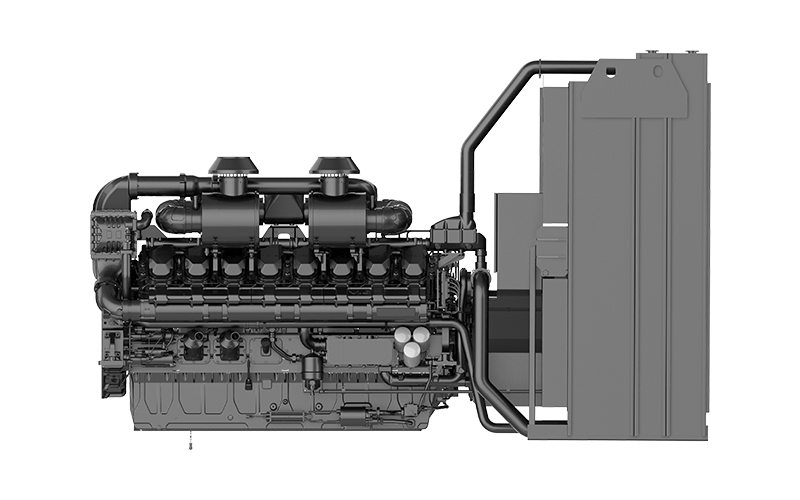

The 16M33 engine features a 52.3L displacement with a power range of 1492-1866 kW. It meets non-emission requirements and is applicable to industries such as mining trucks, fracturing units, cementing units, low-pressure water pumps, and hydraulic pump stations.
产品优势
High reliability: The cylinder block features a cast iron, grid-type structure for enhanced strength; Crankshaft made of high-strength alloy steel.
High operating economy: Equipped with high-flow fuel filters and centrifugal rotor oil filters as standard to ensure superior filtration precision, providing cleaner fuel and oil; filter replacement interval reaches 500 hours; Reduced operating costs.
Easy maintenance: Inspection windows on both sides of the engine block facilitate the replacement of connecting rods and rod bearings.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Displacement (L) |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Governing System |
Emission standard |
|
16M33V0D0 |
52.3 |
1492/1900 |
8049/1600 |
Electronic control |
Zero emission |
|
16M33V2D0 |
52.3 |
1715/1900 |
10000/1600 |
Electronic control |
Zero emission |
|
16M33V4D0 |
52.3 |
1866/1900 |
10500/1600 |
Electronic control |
Zero emission |
