产品概述

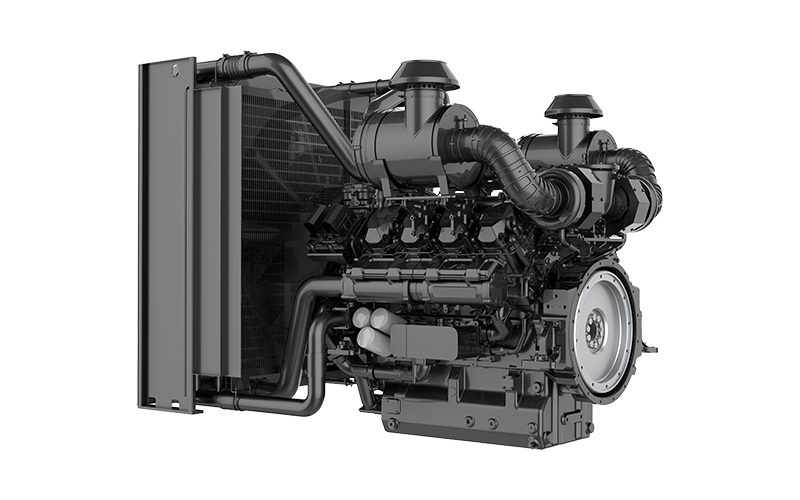

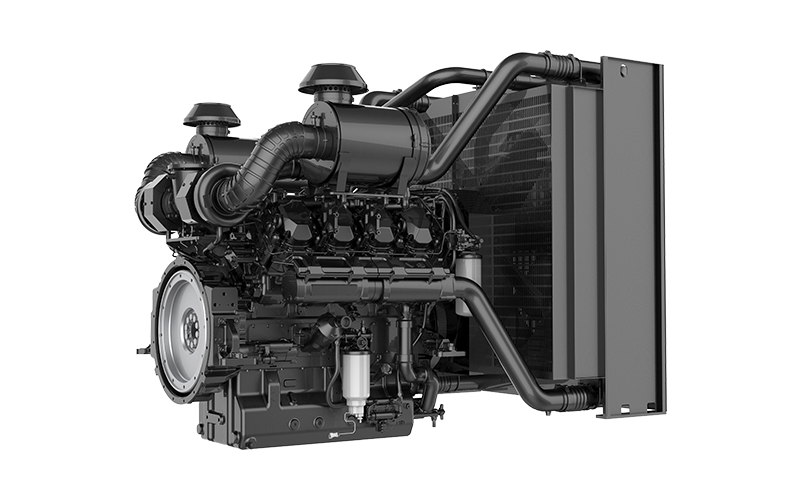

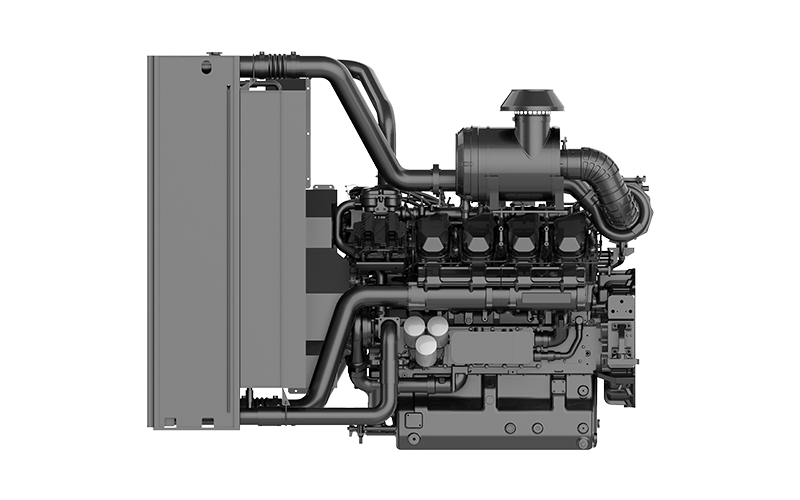

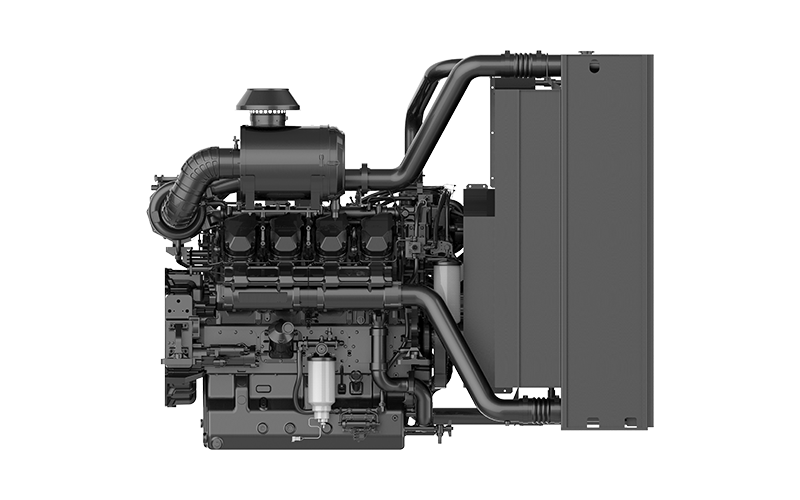

The 8M33 engine features a 26.14L displacement with a power range of 785-900 kW, suitable for industries such as fire trucks, low-pressure water pumps, and hydraulic pump stations.
产品优势
High reliability: The cylinder block features a cast iron, grid-type structure for enhanced strength; Crankshaft made of high-strength alloy steel.
High economy: Equipped with high-flow oil filters as standard to ensure superior filtration precision, providing cleaner fuel and oil, and reducing operating costs.
Easy maintenance: Inspection windows on both sides of the engine block and a family-style design facilitate servicing and maintenance.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Displacement (L) |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Governing System |
Emission standard |
|
8M33V2D0 |
26.14 |
785/1900 |
4802/1400 |
Electronic control |
Zero emission |
|
8M33V4D0 |
26.14 |
900/1900 |
5150/1400 |
Electronic control |
Zero emission |
