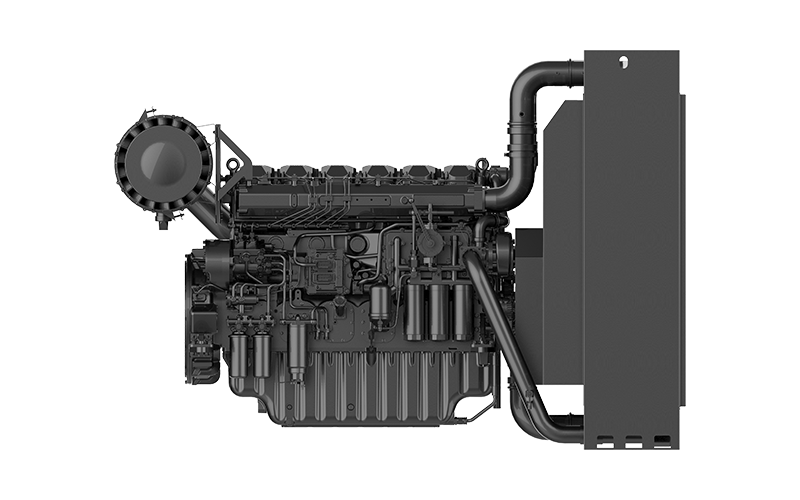

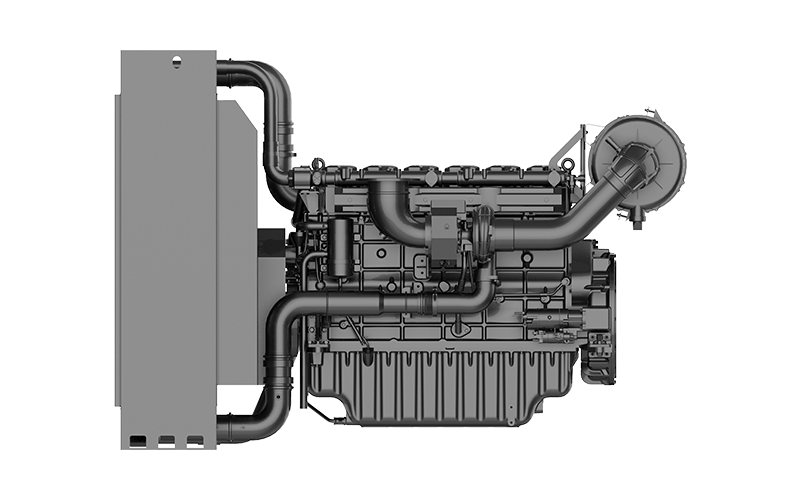

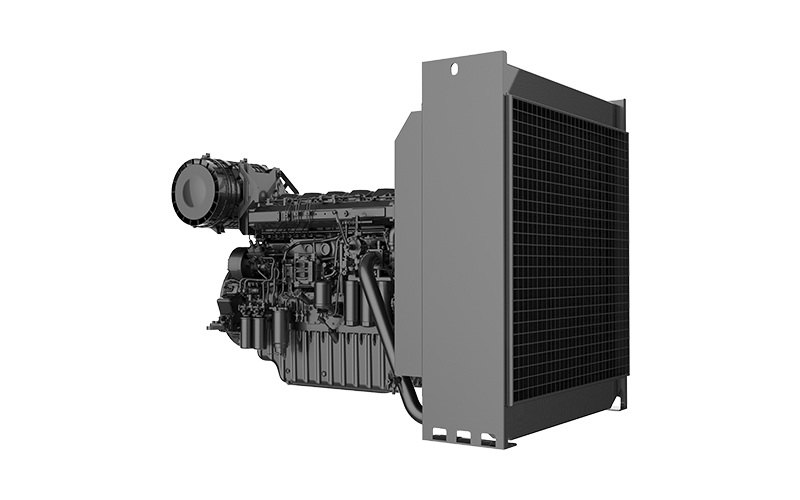

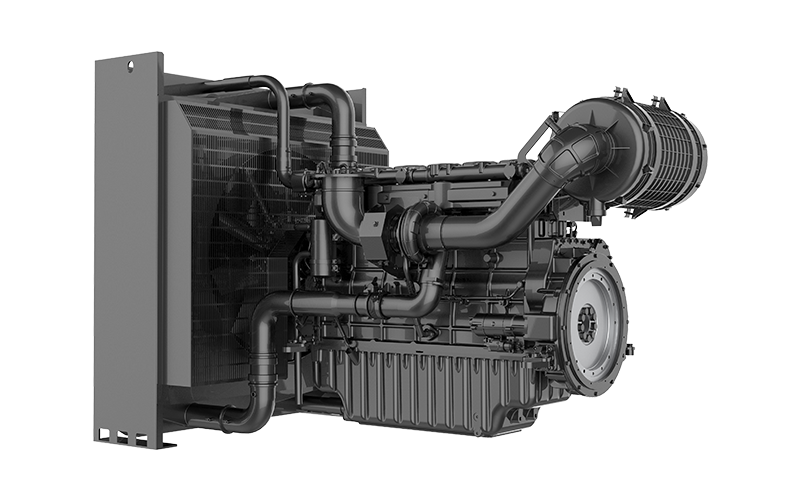

6M33 Series Industrial Engine

Family-series products, adaptable to various industrial power segments.

Suitable for high-pressure cleaning, low-pressure water pumps, hydraulic pump stations, air compressors, fire-fighting pumps, and mud pumps

565-670

功率范围 kW/Ps

3920/1300

最大扭矩/转速 N·m / r/min

产品手册下载服务图标

服务支持

立即询价产品咨询

/Products & Businesses/Energy & Power/Industrial Power

概述优势规格型谱表

产品概述

The 6M33 engine features a 19.6L displacement with a power range of 565-670 kW and is applicable to industries such as high-pressure cleaning, low-pressure water pumps, hydraulic pump stations, air compressors, fire-fighting pumps, and mud pumps.

产品优势

High reliability: The cylinder block features a cast iron, grid-type structure for enhanced strength; Crankshaft made of high-strength alloy steel.

High economy: Equipped with high-flow oil filters as standard to ensure superior filtration precision, providing cleaner fuel and oil, and reducing operating costs.

Easy maintenance: Inspection windows on both sides of the engine block and a family-style design facilitate servicing and maintenance

产品规格

功率范围 kW/Ps

565-670

最大扭矩转速 N·m / r/min

3920/1300

排放标准

Zero emission

产品系列

燃料

Diesel

发动机型式

In-line

气缸数/气门数

6/4

缸径 × 行程mm

排量 L

19.6

进气方式

Turbocharged and air-to-air intercooled

压缩比

燃烧系统

发动机尺寸（长X宽X高） mm

2270×1132.7×1558.7

G重量 kg

2140±32

备注：产品参数及图片仅供参考；如有变动，不另行通知。

型谱表

Model	Displacement (L)	Rated power/speed (kW/rpm)	Peak torque/speed (N·m/rpm)	Governing System	Emission standard
6M33V1D0	19.6	565/1800	3200/1300-1700	Mechanical governor	Zero emission
6M33V2D0	19.6	565/1900	3400/1300-1600	Electronic control	Zero emission
6M33V2D0	19.6	565/1900	3418/1500	Electronic control	Zero emission
6M33V4D0	19.6	670/1900	3920/1300	Electronic control	Zero emission
